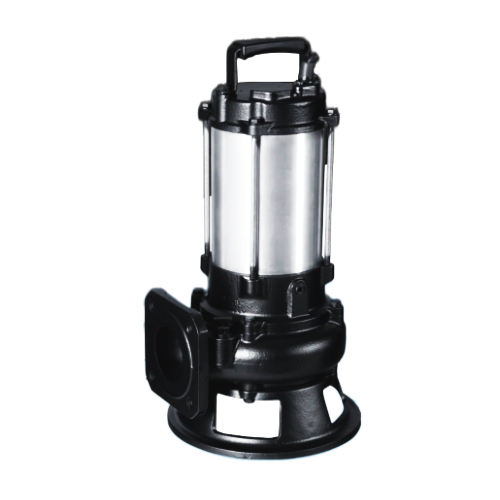

Submersible pump Kira UM NP Series

Submersible Sewage Drainage Pump KIRA UM/NM Series

Category Tags , , , , , , , , , , , , ,
ขอใบเสนอราคา/Request a quote
Facebook
Twitter
Email
Print

Applications

  • Drainage of sewage from the building basements,hotel industry,and wastewater from factories.
  • Drainage of sewage from industrial process factories.
  • Empty septic tanks,cesspits and sewagepump stations.
  • Pumping surface and drainage water from garages and sprinkler systems.

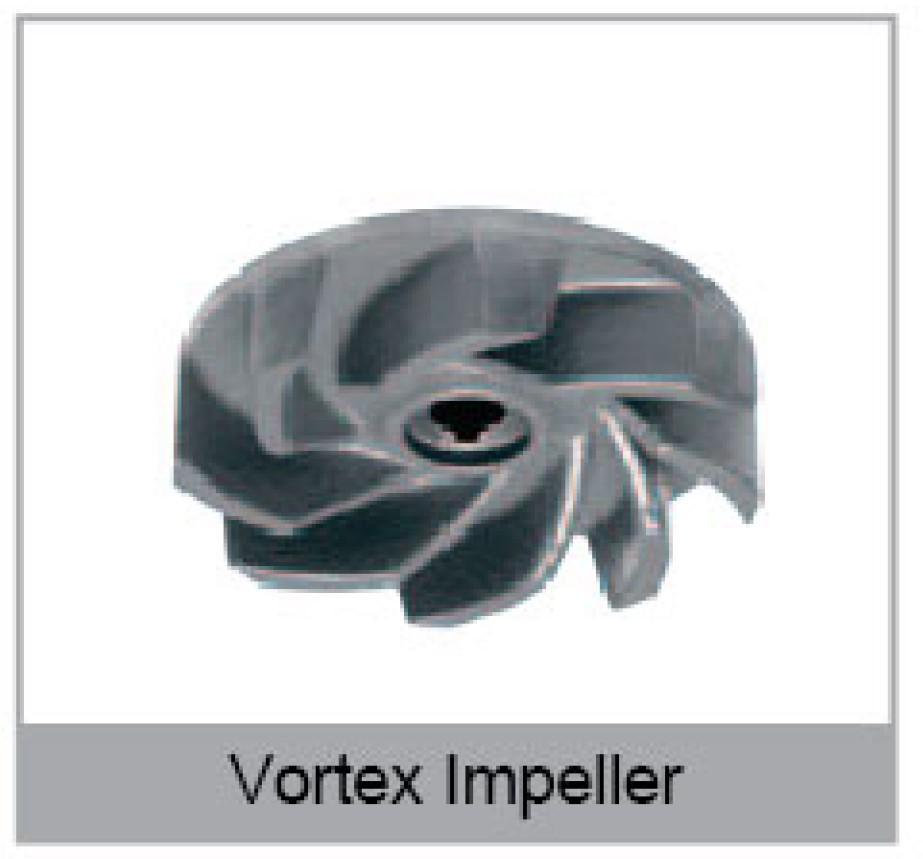

Vortex Impellr

Performance Curves

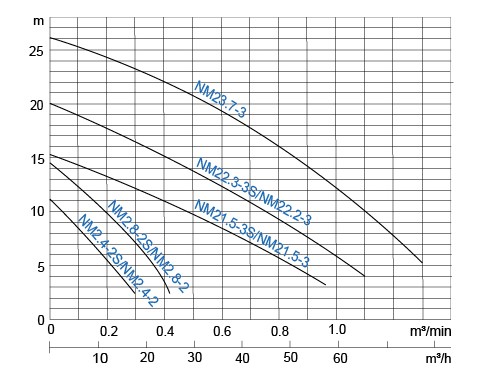

NM-Performance-Curves

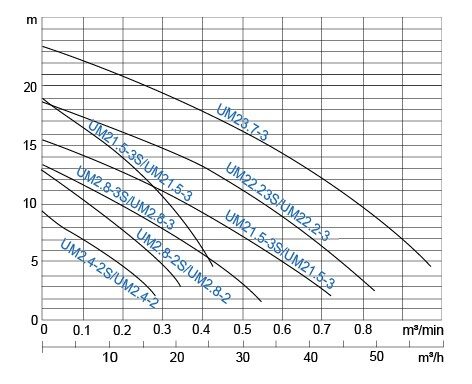

UN-Performance-Curves

Performance Spec

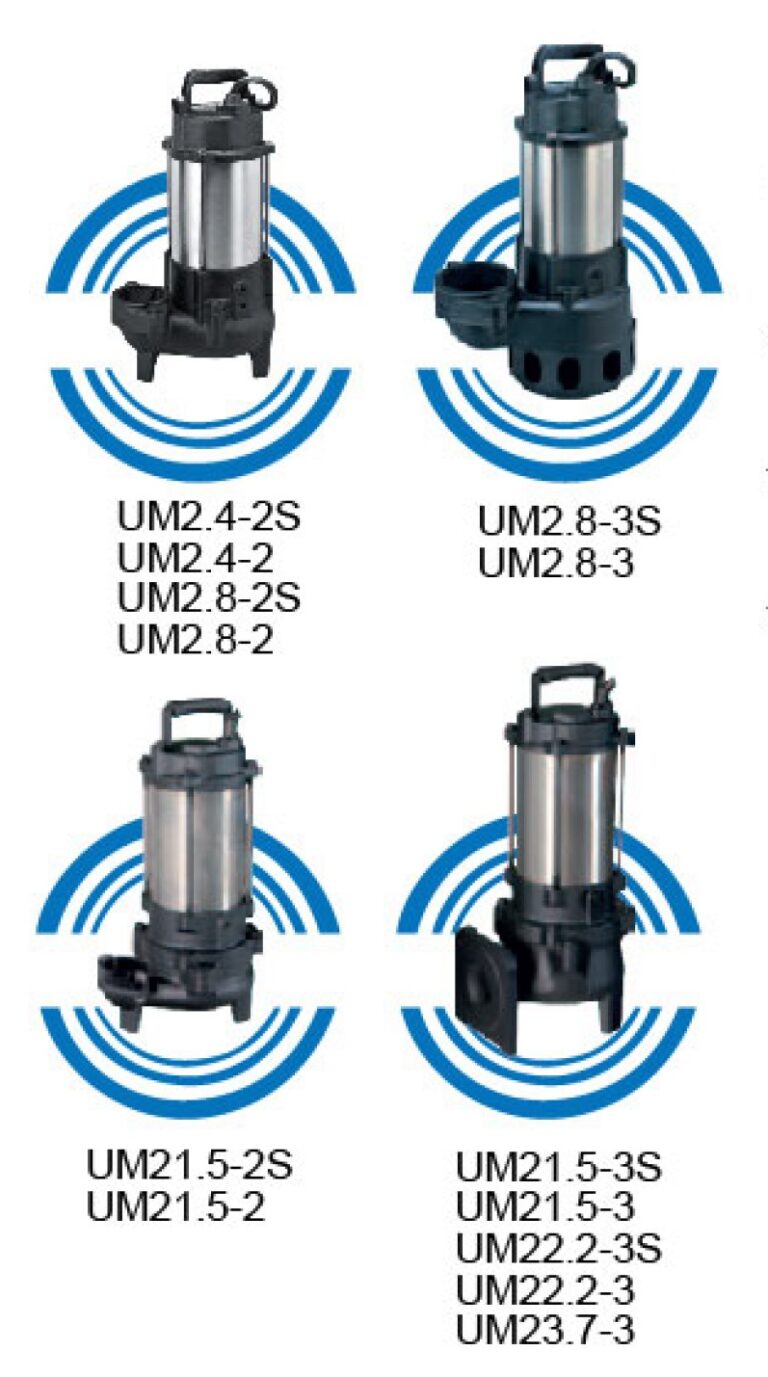

Model UM
Model Motor Output
(kW)		 Pole/ Phase
(0)		 Discharge
Bore (mm.)
UM2.4-2S 0.4 2P/ 10 50
UM2.4-2 0.4 2PZ 30 50
UM2.8-2S 0.75 2P/ 10 50
UM2.8-2 0.75 2PZ 30 50
UM2.8-3S 0.75 2PZ 10 80
UM2.8-3 0.75 2PZ 30 80
UM21.5-2S 1.5 2PZ 10 50
UM21.5-2 1.5 2PZ 30 50
UM21.5-3S 1.5 2PZ 10 80
UM21.5-3 1.5 2PZ 30 80
UM22.2-3S 2.2 2PZ 10 80
UM22.2-3 2.2 2PZ 30 80
UM23.7-3 11 2PZ 30 80

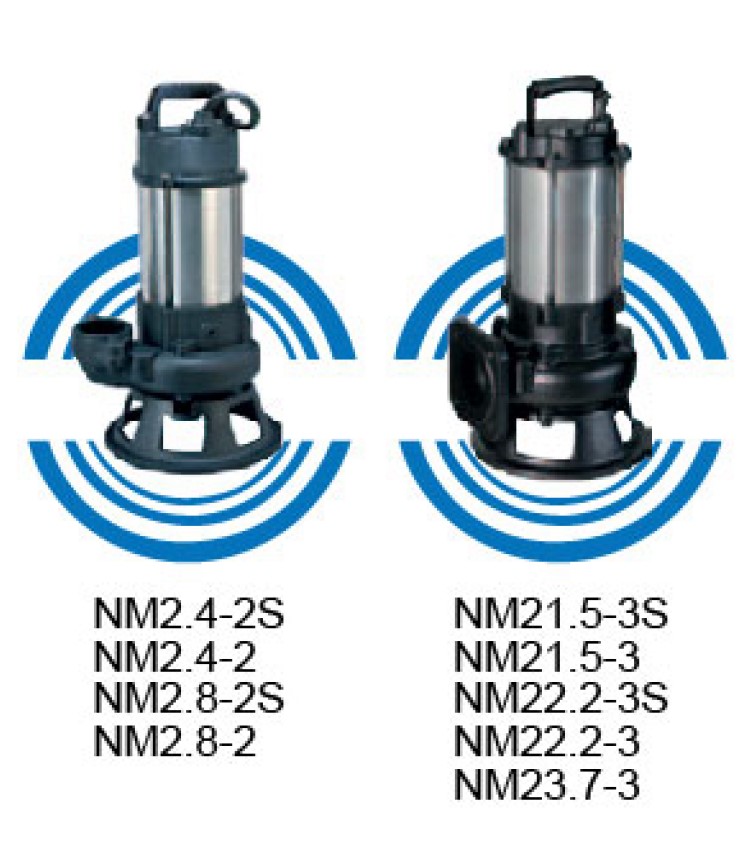

Model NM
Model Motor Output
(kW)		 Pole/ Phase
(0)		 Discharge
Bore (mm.)
NM2.4-2S 0.4 2P/ 10 50
NM2.4-2 0.4 2PZ 30 50
NM2.8-2S 0.75 2PZ 10 50
NM2.8-2 075 2PZ 30 50
NM21.5-3S 1.5 2PZ 10 80
NM21.5-3 1.5 2PZ 30 80
NM22.2-3S 2.2 2PZ 10 80
NM22.2-3 2.2 2P/ 30 80
NM23.7-3 3.7 2P/ 30 80
