Submersible Pump KIRA US/NS Series

Name: Submersible Pump KIRA US/NS Series - บริษัท ย่งฮง (ประเทศไทย) จำกัด
Brand: KIRA

Submersible pump KIRA US Series or submersible pumps are imported from Japan. Body is manufactured from stainless steel grade 316 (SUS316), which provides good corrosion resistance. Does not cause rust, suitable for Used for pumping waste water or wastewater treatment In industrial plants In addition, resistant to seawater chemical corrosion.

Category Wastewater Pump Tags Kira, sewage pump, Submersible pump, waste product reccommened, กลุ่มอาคารนิติบุคคล, กลุ่มโรงงานอาหาร, บำบัดน้ำเสียในโรงงานอาหาร, ปั๊มจุ่ม, ปั๊มระบายน้ำเสีย, ปั๊มระบายน้ำเสีย, ปั๊มระบายน้ำเสีย, ปั๊มแช่, ระบบน้ำเสีย, เครื่องสูบน้ำเสีย, ไดโว่

Submersible Pump KIRA US/NS Series

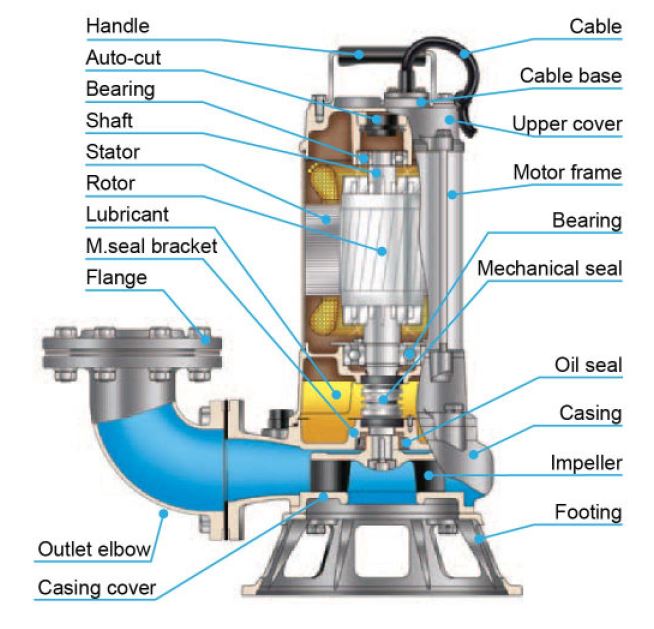

Submersible Pump Feature

Best structure design has a dry motor, IP68 ,double mechanical seals, equipped with an auto-cut protector, pump casing, outer cover is stainless steel 316,and acid-resistant silicon carbide seals.
The Stainless series is suitable for all light acid ,corrosive and/or sea water application fluid in pH value between 4-10 pH. For Strong Acidity and Alkalinity applications ,please use the specified chemical pump.
Investment Casing Precision casing with the use of an advanced stainless investment casing method, that produces the high quality with a smooth surface finish.
Viton O-ring are used throughout the pump to give better pump life in corrosive acid and aggressive media.
Austenitc Stainless Steel is used in US/NSSeries All US are made by SUS316/SCS14 which is high grade of stainless steel.

Submersible Pump Applications

Suitable for industries and wastewater treatment plant.
Suitable for wastewater treatment for petroleum industry ,dyeing industry and mining dewatering contain acidic fluid.
This series is suitable for all, light acid, corrosive and/or sea water applications.

Submersible Pump Performance Curve

ITEM		DESCRIPTION
Limits of Use	Liquid Temp.	0-40°C (32-104 °F)
	Applications	Corrosive /Food/Processing Liquid
	Frequency	50Hz
Type	Motor	2P (3600rpm)^. Dry Motor
	Insulation	Class F (0.4-3.7HP).Class H (5.5-11HP)
	Protection	IP68
	Protector	Auto-Cut protector (built-in) up to 7.5 kW. MTS is from 11 kW.
	Bearing	Ball type
	M.Seal	Double M.Seal
Material	Impeller	Semi-open
	Upper Cover	scs14
	Motor Frame	SUS316
	Shaft	SUS316 (0.4-7.5HP) .SUS630 (11Kw)
	M.Seal	CA/CE &SiC/SiC
	Casing	Viton
	Impeller	SCS14
	Casing Cover	scs14
	Cable	VCTor H07RN-F or SJOW/SOW
Optional		Pumps can be customized to fit specifications

Submersible Pump KIRA US Series Specifications

MODEL	Output	Pole/Phase	Discharge Inch	Impeller	Start Method	Head	standard		Solid Passage	Weight kg.
MODEL	kW.	Pole/Phase	mm.	Impeller	Start Method	m.	m³/min	m³/h	mm.	Weight kg.
KIRA US2.4-2S	0.4	2P/1	2″(50)	Vortex	Capacitor	6	0.15	9	35	15
KIRA US2.4-2	0.4	2P/3	2″(50)	Vortex	Direct	6	0.15	9	35	14
KIRA US2.8-2S	0.75	2P/1	2″(50)	Vortex	Capacitor	8	0.2	12	35	16
KIRA US2.8-2	0.75	2P/3	2″(50)	Vortex	Direct	8	0.2	12	35	15
KIRA US1.5-3	1.5	2P/3	3″ (80)	Vortex	Direct	8.5	0.4	24	50	26.5
KIRA US2.2-3	2.2	2P/3	3″ (80)	Vortex	Direct	13	0.4	24	50	29
KIRA US3.7-3	3.7	2P/3	3″ (80)	Vortex	Direct	17.5	0.5	30	50	40
KIRA US25.5-3	5.5	2P/3	3″ (80)	Vortex	Direct	21	0.6	36	50	61
KIRA US27.5-3	7.5	2P/3	3″ (80)	Vortex	Direct	26	0.6	36	50	67
KIRA US211-3	11	2P/3	3″ (80)	Vortex	Star-Delta	33	0.6	36	50	76

Submersible Pump KIRA NS Series Specifications

MODEL	Output	Pole/Phase	Discharge Inch	Impeller	Start Method	Head	standard		Solid Passage	Weight kg.
MODEL	kW.	Pole/Phase	mm.	Impeller	Start Method	m.	m³/min	m³/h	mm.	Weight kg.
KIRA NS21.5-3	1.5	2P/3	3″ (80)	Channel	Direct	8.5	0.6	36	35	28.5
KIRA NS22.2-3	2.2	2P/3	3″ (80)	Channel	Direct	13	0.6	36	35	31.5
KIRA NS23.7-3	3.7	2P/3	3″ (80)	Channel	Direct	20.5	0.6	36	32	43
KIRA NS25.5-3	5.5	2P/3	3″ (80)	Channel	Direct	28	0.6	36	30	67
KIRA NS25.5-4	5.5	2P/3	4″ (100)	Channel	Direct	21.5	1	60	30	67
KIRA NS27.5-3	7.5	2P/3	3″ (80)	Channel	Direct	35.5	0.6	36	30	73
KIRA NS27.5-4	7.5	2P/3	4″ (100)	Channel	Direct	29	1	60	30	73
KIRA NS211-3	11	2P/3	3″ (80)	Channel	Star-Delta	46	0.6	36	30	82
KIRA NS211-4	11	2P/3	4″ (100)	Channel	Star-Delta	39.5	1	60	30	82

Dimensions

MODEL	Dimensions (mm.)
MODEL	A	B	C	D
KIRA US2.4-2S	237	199	153	433
KIRA US2.4-2	237	199	153	433
KIRA US2.8-2S	237	199	153	433
KIRA US2.8-2	237	199	153	433
KIRA US1.5-3	402	260	202	517
KIRA US2.2-3	402	260	202	517
KIRA US3.7-3	476	286	222	561
KIRA US25.5-3	499	309	258	657
KIRA US27.5-3	499	309	258	657
KIRA US211-3	499	309	258	657

MODEL	Dimensions (mm.)
MODEL	A	B	C	D
KIRA NS21.5-3	417	275	260	521
KIRA NS22.2-3	417	275	260	521
KIRA NS23.7-3	495	305	290	568
KIRA NS25.5-3	563	373	345	684
KIRA NS25.5-4	591	373	345	684
KIRA NS27.5-3	563	373	345	684
KIRA NS27.5-4	591	373	345	684
KIRA NS211-3	563	373	345	724
KIRA NS211-4	591	373	345	724
