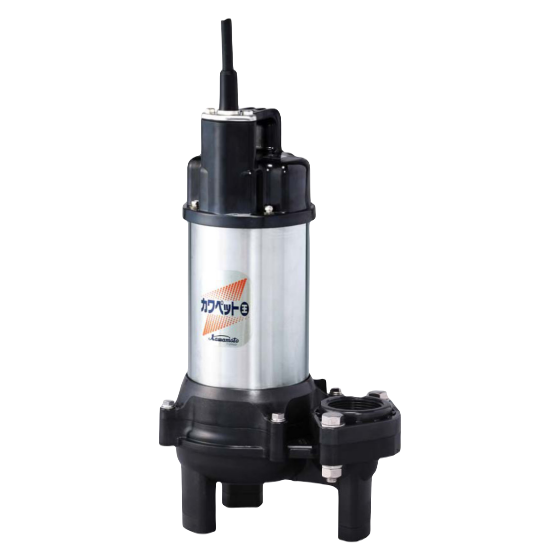

Submersible Pump KOWAMOTO Model WUO(4)-F
Submersible Pump KOWAMOTO Model WUO(4)-F Vortex type submerged pump is ideal for sewage and sludge application due to its exceptional foreign matter passage performance. Its lightweight and user-friendly design make it easy to operate. It has a long lifespan due to the stainless steel frame motor and resin parts. The impeller and casing are reinforced with glass fibers for added durability. The motor provides large starting torque and has a built-in auto-cut function to ensure trouble-free operation. This pump can be used with the resin discharge elbow for floor-mounted applications.
Facebook
Twitter
Email
Print
Model : WUO (4 )-F
Submersible water pump KAWAMOTO
2 POLES / 50 Hz
BORE SIZE 40~80 MM
APPLICATIONS
- For drainage of sewage and wastewater, and for drainageof septic tank pump.
FEATURES
- Light weight and easy-to-handle submersible sewage pump.
- Stainless steel made frame motor and plastic parts increase operating life.
- Use glass fiber reinforced plastic for the impeller and casing, and equipped with a motor with built-in auto-cut having a large starting torque for stable operation.

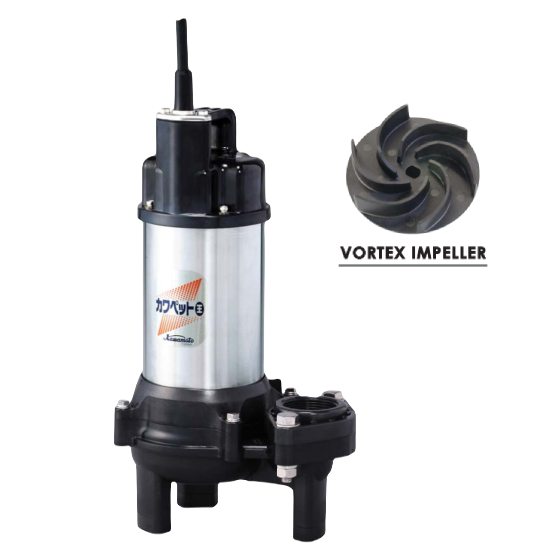

- Vortex type and excellent performance to pass foreign objects.
- Can be combined with a plastic pedestal support. (special accessory)
- Starting/stopping water levels are adjustable in L and LN types.
STANDARD SPECIFICATIONS
| Description | Model: WU0(4)-F | |
|---|---|---|
| Applicable Liquid | Waste water, Filthy water and Other miscellaneous dirty water | |
| Liquid Temperature | 0 ~ 40 °C | |
| pH | 5~9 | |
| Material | Casing | Glass fiber reinforced resin |
| Impeller | Glass fiber reinforced resin | |
| Shaft | Stainless Steel (SUS403) | |
| Motor | Speed | 3000 rpm |
| Construction | Impeller | Vortex type |
| Shaft seal | Double mechanical seal Pump: SiC x SiC Motor: Ceramics x Carbon | |
| Motor Bearing | Sealed ball bearing | |
| Cable length | 0.15~0.75kW: 6m 1.5~3.7kW: 10m | |
| Maximum submergence | 0.15~0.75kW: 5m 1.5~3.7kW: 8m | |
SOLID PASSAGE
| Cable length | 10m, 20m, 30m, 40m |
|---|---|
| Oil type | White oil |
OPTIONAL SPECIFICATIONS
| Pump Bore (mm) | Solid diameter (mm) | Clothes |
|---|---|---|
| 40 | 35 | - |
| 50 | 35 | - |
| 65 | 40 | - |
| 80 | 40 | - |
CABLE
| Output (kW) | Phase | Size (mm2) | Core | Outer diameter (mm) | Length (m) |
|---|---|---|---|---|---|
| 0.15 | 1 | 0.75 | 3 | 9.2 | 6 |
| 0.25 | 1 | 0.75 | 3 | 9.2 | 6 |
| 0.25 | 3 | 0.75 | 4 | 9.9 | 6 |
| 0.4 | 1 | 0.75 | 3 | 9.2 | 6 |
| 0.4 | 3 | 0.75 | 4 | 9.9 | 6 |
| 0.75 | 3 | 1.25 | 4 | 11 | 6 |
| 1.5 | 3 | 1.25 | 4 | 11 | 10 |
| 2.2 | 3 | 1.25 | 4 | 11 | 10 |
| 3.7 | 3 | 2 | 4 | 11.7 | 10 |
Cable Material: 600V insulating (VCT)

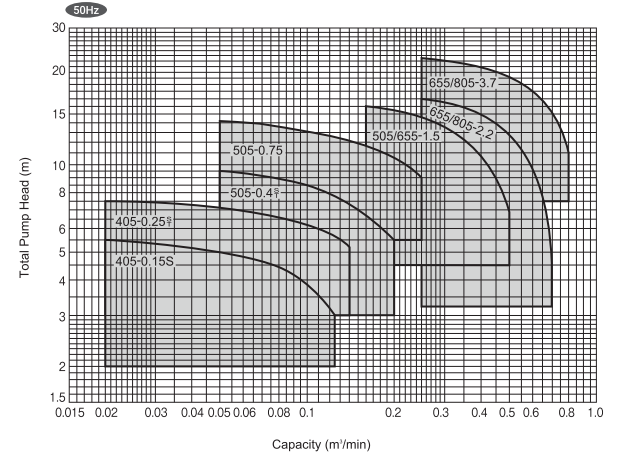

PERFORMANCE CHART

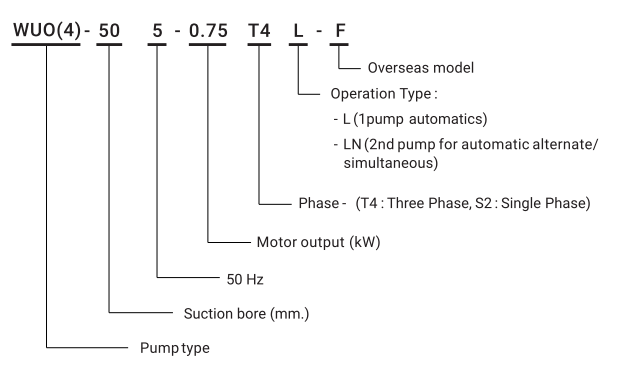

MODEL CODE
SPECIFICATION TABLE
| No. | Bore (mm) | Model | Motor (kW) | Performance | |||
|---|---|---|---|---|---|---|---|
| Capacity (m3/min) | Total Head (m) | Capacity (m3/min) | Total Head (m) | ||||
| 1 | 40 | WU04-405-0 15S2-F | 015 | 0.02 | 5.5 | 0125 | 3 |
| 2 | WUO4-405-0.25S2-F | 0.25 | 0.02 | 7.5 | 0.14 | 5.2 | |
| 3 | WUO4-405-Q.25T4-F | 0.25 | 0.02 | 7.5 | 0.14 | 5.2 | |
| 4 | 50 | WU04-505 0.4S2-F | 04 | 0 05 | 9.5 | 0.2 | 5.5 |
| 5 | WU04-505-0.4T4-F | 04 | 0 05 | 9.5 | 0.2 | 5.5 | |
| 6 | WU04-505-0.75S2-F | 0 75 | 005 | 14.2 | 0.25 | 9 | |
| 7 | WU04-505-0 75T4-F | 075 | 005 | 14.2 | 0.25 | 9 | |
| 8 | WUO-505-1.5T4F | 15 | 0.16 | 16 | 0.32 | 13.2 | |
| 9 | 65 | WUO-655-1.5T4-F | 1 5 | 025 | 14.5 | 0.5 | 6.8 |
| 10 | WUO-655-2.2T4-F | 2.2 | 0.25 | 17 | 0.5 | 128 | |
| 11 | WU0-655-3.7T4-F | 3.7 | 0.25 | 235 | 0.5 | 202 | |
| 12 | 80 | WUO-805-2.2T4-F | 22 | 036 | 15.5 | 0.7 | 48 |
| 13 | WUO-805-3.7T4-F | 37 | 04 | 215 | 08 | 112 | |
| 14 | 40 | WUO4-4O5-0 15S2L(LN)-F | 015 | 002 | 5.5 | 0125 | 3 |
| 15 | WU04-405-0 25S2L(LN)-F | 025 | 002 | 7.5 | 014 | 5.2 | |
| 16 | WU04-405-0 25T4L(LN)-F | 0.25 | 0.02 | 7.5 | 0.14 | 5.2 | |
| 17 | SO | WU04-505-0 4S2L(LN)-F | 04 | 0.05 | 9.5 | 0.2 | 5.5 |
| 18 | WU04-505-0 4T4L(LN) F | 0.4 | 0.05 | 9.5 | 0.2 | 5.5 | |
| 19 | WU04-505 0 75S2L(LN) F | 0.75 | 0.05 | 14.2 | 0.25 | 9 | |
| 20 | WU04 505-0.75T4L(LN)-F | 0.75 | 0.05 | 14.2 | 025 | 9 | |
| 21 | WUO 505-1.5T4L(LN) F | 1.5 | 016 | 16 | 0.32 | 132 | |
| 22 | 65 | WUO-655-1.5T4L(LN)-F | 1 5 | 025 | 14.5 | 0.5 | 68 |
| 23 | WU 0-655-2.2T4L(LN)-F | 22 | 025 | 17 | 05 | 128 | |
| 24 | WUO-655-3.7T4L(LN)-F | 3.7 | 0 25 | 235 | 0.5 | 202 | |
| 25 | 80 | WUO-805-2.2T4L(LN)-F | 2.2 | 036 | 15.5 | 0.7 | 48 |
| 26 | WU 0-805-3.7T4L(LN)-F | 3.7 | 0.4 | 21.5 | 08 | 112 | |
