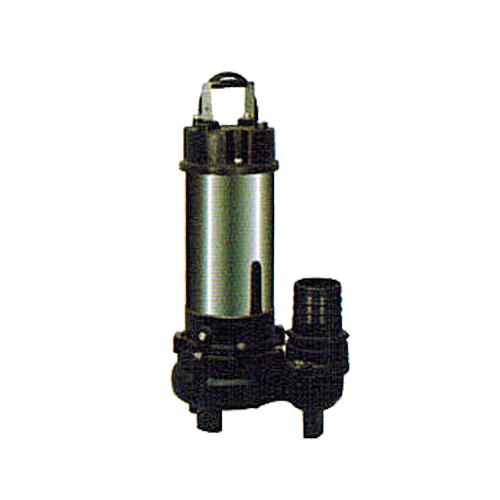

Submersible pump STAC SSA Series

Submersible pump STAC SSA Series

Submersible pump STAC SSA Series is durable and long-lasting

Category Wastewater Pump Tags stac submersible pump, Submersible pump, ปั๊มจุ่ม, ปั๊มจุ่ม stac, ปั๊มระบายน้ำเสีย, ปั๊มแช่, ปั๊มแช่ stac

Submersible pump STAC SSA Series

STAC SSA Series Features

Vortex impeller minimizes abrasives ware and allows large solid passage.
Dry motor with overload protector, Cable with and epoxy resin sealed water-proof cable hood. Use deep
groove C3 bearing to extend life time
Superior abrasion resistant double mechanical seal to ensure best seal effect.
Oil seal mounted outside of seal chamber stops solids gathering around seal faces

STAC SSA Series Applications

Waste water drainage from all industries.
Sewage drainage from hotels, restaurants, schools, malls and public facilities, etc.
Fishery, animal husbandry, stock farm, piggery, fecal sewage tank in waste water treatment plant.
Drainage of waste water containing fibrous additives from leather factory, dyeing factory and food processing plants.

STAC SSA Series Motor Specification

2 Poles dry type motor
Insulation : F Class
Protection : IP 68
Frequency : 50 Hz
Voltage : 1Ø220∼240V (0.37∼1.5kW), 3Ø220∼440V (all models)

STAC SSA Series Submersible Pump Specifications

Model		Power		Disch.	Phase	Rated		Max.
Model		Power		Disch.	Phase	Head	Capacity	Head	Cap.
SSA1	SSA2	kW	HP	Inch	ø	M	M³/min	M	M³/min
STAC SSA1-2-0.37	–	0.37	0.5	2″	1.3	4~5	0.18~0.15	8.5	0.30
STAC SSA1-2-0.75	–	0.75	1	2″	1.3	8~ 9	0.26~0.22	12.5	0.46
STAC SSA1-2-0.1.5	STAC SSA2-2-1.5	1.5	2	2″	3	9~10	0.42~0.38	17	0.65
STAC SSA1-3-2.2	STAC SSA2-3-2.2	2.2	2	3″	3	10~11	0.48~0.45	19.0	0.75
STAC SSA1-3-3.7	STAC SSA2-3-3.7	3.7	5	3″	3	11~13	0.70~0.50	21	1.20
STAC SSA1-3-5.5	STAC SSA2-3-5.5	5.5	7.5	3″	3	13~15	1.00~0.90	28.5	1.45
STAC SSA1-4-7.5	–	7.5	10	4″	3	15~17	1.12~1.00	30	1.65
STAC SSA1-4-11	–	11	15	4″	3	15~18	1.90~1.65	34	2.50
