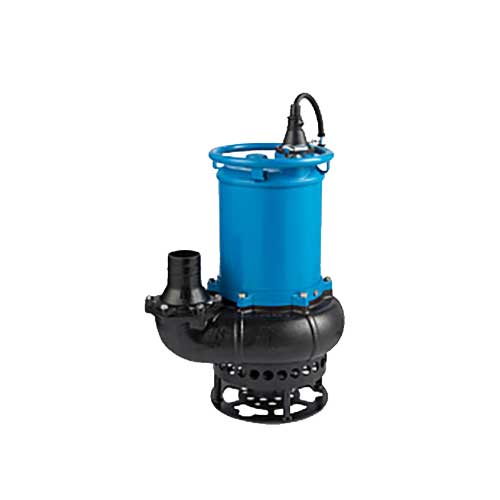

Submersible Pump TSURUMI GPN Series
Tsurumi GPN water pump is suitable for pumping sand and mud in construction. Such as construction of ports or landfills and helping to drain water for ceramics factories, other concrete mixing plants It is also able to pump water that has sludge from the steel mills.
Submersible Pump TSURUMI GPN Series
TSURUMI GPN35.5,GPN411,GPN415,GPN622
TSURUMI GPN-series is a submersible three-phase high power and extra heavy-duty slurry pump driven by a 4-pole motor. It is equipped with a high-chromium cast iron agitator that assists smooth suction of the settled matters. The other wear parts such as the impeller and the suction plate are also made of high-chromium cast iron for extra durability. The side discharge, spiral design allows smoother passage of the sucked solid matters. The motor is cooled by a water jacket that assures efficient motor cooling even when it operates with its motor exposed to air. The use of guide rail fitting system improves convenience in the facilities such as, iron works, ready-mixed concrete plants, and wastewater treatment plants where the pump is to be installed with a fixed discharge piping
TSURUMI GPN Series Submersible Pump Performance Curve
TSURUMI GPN35.5,GPN411,GPN415,GPN622
TSURUMI GPN Series Submersible Pump Specifications
TSURUMI GPN35.5,GPN411,GPN415,GPN622
| Discharge Bore | Model | Motor output | Phase | Starting Method | Weight | Cable Length |
| mm. | Kw. | Kg. | m. | |||
| 80 | TSURUMI GPN35.5 | 55 | Three | D.O.L | 145 | 8 |
| 100 | TSURUMI GPN411 | 11 | D.O.L | 217 | 8 | |
| 100 | TSURUMI GPN415 | 15 | D.O.L | 220 | 10 | |
| 150 | TSURUMI GPN622 | 22 | D.O.L | 415 | 10 |
TSURUMI GPN Series Submersible Pump Dimensions
TSURUMI GPN35.5,GPN411,GPN415,GPN622
| Model | d | A | A1 | B | D | H | W1 |
| TSURUMI GPN35.5 | 80 | 487 | 425 | 449 | 390 | 796 | 290 |
| TSURUMI GPN411 | 100 | 617 | 518 | 500 | 451 | 879 | 315 |
| TSURUMI GPN415 | 100 | 617 | 518 | 500 | 451 | 879 | 315 |
| TSURUMI GPN622 | 150 | 725 | 625 | 528 | 572 | 1102 | 300 |
