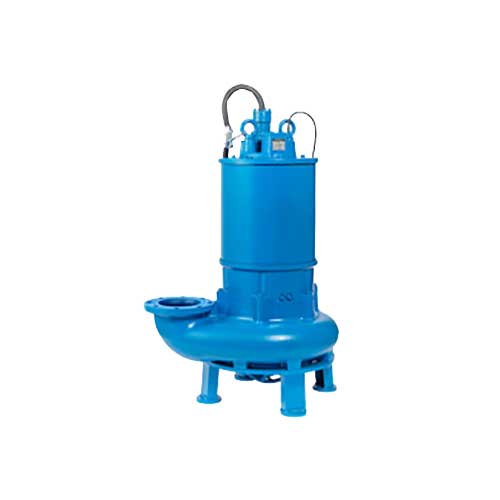

Submersible Pump TSURUMI GSZ-6 Series
Tsurumi Pump GSZ-6 is a high-power, three-phase submersible pump for pumping large volumes of water. Driven by 6-port motor, used together with parts that are resistant to friction. Low speed motor will provide long service life. Motor cooled by a water jacket that helps the motor to cool efficiently even when working with motors that are exposed to air.
Submersible Pump TSURUMI GSZ-6 Series
tsurumi GSZ-6 Series GSZ5-22-6,GSZ5-37-6
Tsurumi Pump GSZ-6 is a pump for pumping water in construction. Designed to pump water with mud, sediment and sand for construction, foundations, soil work, etc. It is safe to use, compact, lightweight, materials used. The production has a strong structure, resistant to impact. The OIL LIFTER system helps the oil seal set waterproof thoroughly, increasing the duration. And reduce maintenance costs Easy repair Easy to remove and clean quickly. The waterproof seal system can withstand water pressure up to 100 meters (0.98 Mpa). Available in more than 100 models, sizes from 0.4-110 kilowatts (0.5 – 150 horsepower), pipe sizes from 25 – 200 mm, pumping water up to 175 meters
TSURUMI GSZ-6 Series Performance Curve
tsurumi GSZ-6 Series GSZ5-22-6,GSZ5-37-6
TSURUMI GSZ-6 Series Specifications
tsurumi GSZ-6 Series GSZ5-22-6,GSZ5-37-6
| Discharge Bore | Model | Motor output | Phase | Starting Method | Solid Passage | Dimensions | Weight | Cable Length |
| mm. | Kw. | mm. | L x H | Kg. | m. | |||
| mm. | ||||||||
| 200 | TSURUMI GSZ5-22-6 | 32 | Three | 6 | D.O.L | 965×1360 | 685 | 10 |
| 200 | TSURUMI GSZ5-37-6 | 37 | 6 | Star-Delta | 1047×1421 | 796 | 10 |
