Submersible Pump TSURUMI KRS Series

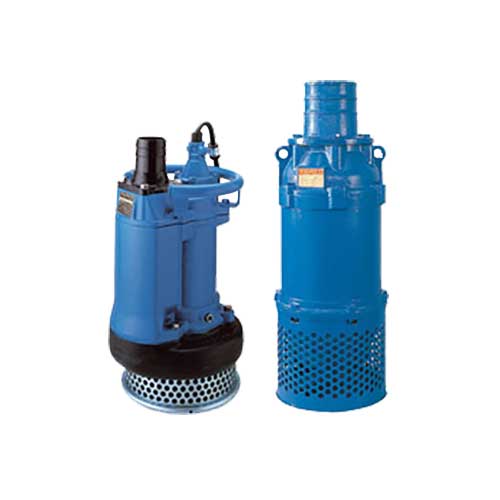

Tsurumi KRS Series Pump is a submersible heavy-duty submersible pump. Tsurumi is designed and built to handle large volumes of pumping work. Chromium cast iron impeller For drainage water in sewer pipes, floods, civil works. This construction was built for a variety of applications
TSURUMI KRS Series Submersible Pump Specifications
| MODEL | Discharge Bore | Motor output | Dry Weight | Dimensions mm | |
| mm | kW | kg | D | H | |
| TSURUMI KRS2-CA/A3 | 80 | 2.2 | 72 | 340 | 619 |
| TSURUMI KRS2-D3/B3 | 80 | 3.7 | 91/89 | 362/349 | 704 |
| TSURUMI KRS2-C4/A4 | 100 | 3.7 | 88 | 349 | 719 |
| TSURUMI KRS2-D4/B4 | 100 | 5.5 | 98/95 | 362/349 | 709 |
| TSURUMI KRS2-C6/A6 | 150 | 7.5 | 130 | 415 | 767 |
| TSURUMI KRS2-D6/B6 | 150 | 11 | 158/150 | 434/415 | 813/812 |
| TSURUMI KRS-8S | 200 | 11 | 174 | 472 | 933 |
| TSURUMI KRS815 | 200 | 15 | 235 | 481 | 1069 |
| TSURUMI KRS819 | 200 | 18.5 | 385 | 576 | 1241 |
| TSURUMI KRS822 | 200 | 22 | 390 | 576 | 1241 |
| TSURUMI KRS822L | 200 | 22 | 390 | 576 | 1241 |
| TSURUMI KRS1022 | 250 | 22 | 450 | 520 | 1439 |

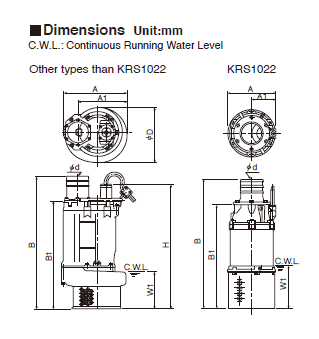

TSURUMI KRS Series Submersible Pump Dimensions
| Model | d | A | A1 | B | B1 | D | H | W1 |
| KRS2-CA/A3 | 80 | 340 | 255 | 620 | 499 | 315 | 600 | 145 |
| KRS2-D3 | 80 | 365 | 275 | 705 | 584 | 350 | 685 | 155 |
| KRS2B3 | 80 | 350 | 260 | 705 | 584 | 320 | 685 | 155 |
| KRS2-C4/A4 | 100 | 350 | 260 | 720 | 584 | 320 | 685 | 155 |
| KRS2-D4 | 100 | 365 | 275 | 710 | 574 | 350 | 675 | 155 |
| KRS2-B4 | 100 | 350 | 260 | 710 | 574 | 320 | 675 | 155 |
| KRS2-C6 | 150 | 415 | 305 | 767 | 585 | 373 | 685 | 175 |
| KRS2-A6 | 150 | 415 | 305 | 767 | 585 | 373 | 685 | 175 |
| KRS2-D6 | 150 | 434 | 324 | 813 | 632 | 407 | 744 | 180 |
| KRS2B6 | 150 | 415 | 605 | 812 | 630 | 373 | 742 | 175 |
| KRS-8S | 200 | 472 | 356 | 933 | 701 | 403 | 814 | 300 |
| KRS815 | 200 | 481 | 348 | 1069 | 837 | 440 | 949 | 275 |
| KRS819 | 200 | 572 | 445 | 1238 | 1006 | 530 | 1156 | 345 |
| KRS822 | 200 | 572 | 445 | 1238 | 1006 | 530 | 1156 | 345 |
| KRS822L | 200 | 572 | 445 | 1238 | 1006 | 530 | 1156 | 345 |
| KRS1022 | 250 | 520 | 250 | 1439 | 1156 | – | – | 450 |
