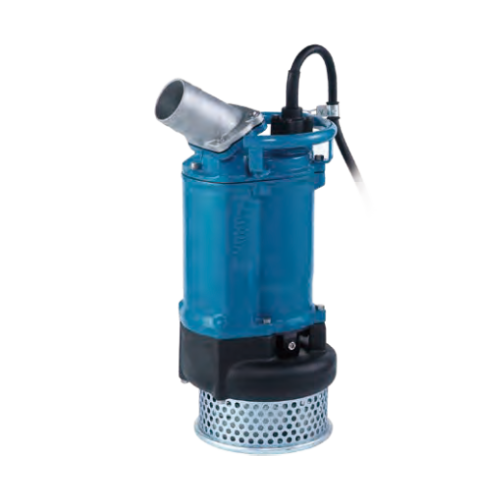

Submersible Pump TSURUMI KTZ Series

Submersible Pump TSURUMI KTZ Series

TSURUMI KTZ21.5, TSURUMI KTZ22.2, TSURUMI KTZ23.7, TSURUMI KTZ31.5, TSURUMI KTZ32.2, TSURUMI KTZ33.7, TSURUMI KTZ35.5, TSURUMI KTZ43.7, TSURUMI KTZ45.5, TSURUMI KTZ47.5, TSURUMI KTZ411, TSURUMI KTZ67.5, TSURUMI KTZ611

TSURUMI : Submersible Pumps

Sewage & Wastewater

Led by aruguably the best cutter pump on the market today, our powerful and versatile sewage pumps confirm Tsurumi’s commitment to this growing market segment. Through the use of an adapter, our pumps are compatible with guide rail systems making pump replacement quick and easy while saving you time and money on entire rail systems.

Durable and compact. From our powerful sand and trash handling pumps to our efficient dewatering and residue/utility pumps, Tsurumi can meet your applications. Let us assist you in choosing the correct model that will handle your needs and save you time and money. KTZ pumps are designed to withstand the most demanding conditions, including those found in the highly abrasive waters of construction, aggregate, and mining dewatering. Versatility is increased as each pump model has the capability of easily converting between high head and high volume performance with a simple change of the impeller and wear plate.

• Discharge sizes from 2-6 inches and horsepower range from 2-15 hp.
• Utilizes 2-pole, 3600 rpm motors to achieve higher heads.
• High pressure rated mechanical seals are isolated to provide superior motor protection.
• Rugged cast iron construction.
• Pressure relief ports and exclusive oil lifter extend mechanical seal life, eliminating premature wear and failure in high head operations.
• Internal thermal motor protection.
• Anti-wicking cable entrance.

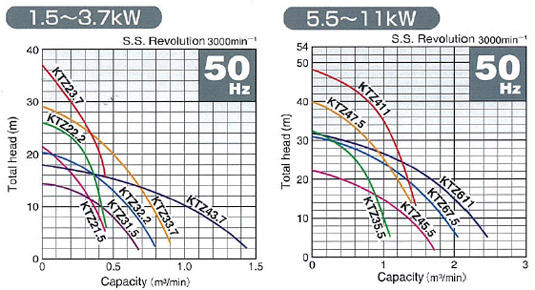

TSURUMI KTZ Series Specifications

KTZ21.5,KTZ22.2,KTZ23.7,KTZ31.5,KTZ32.2,KTZ33.7,KTZ35.5,KTZ43.7,KTZ45.5,KTZ47.5,KTZ411,KTZ67.5,KTZ611

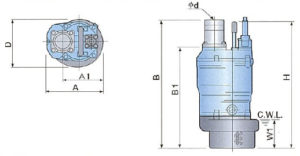

TSURUMI KTZ Series Dimensions

KTZ21.5,KTZ22.2,KTZ23.7,KTZ31.5,KTZ32.2,KTZ33.7,KTZ35.5,KTZ43.7,KTZ45.5,KTZ47.5,KTZ411,KTZ67.5,KTZ611
