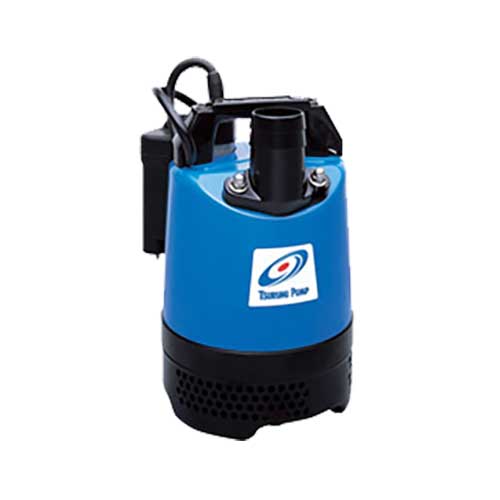

Submersible Pump TSURUMI LB-A Series
Tsurumi LB-A Series, automatic model, works only when there is enough water Not only reduces energy consumption But also helps to extend the service life of the pump wear parts Because the pump will automatically shut down when the water level is low Prevent pump damage Suitable for pumping, general construction applications
Submersible Pump TSURUMI LB-A Series
TSURUMI LB-480A,TSURUMI LB-800A
Submersible Pump TSURUMI LB-A Series
Tsurumi LB-480A
The EL-1 relay module installed on the side of the pump reduces the need to use a float switch. These sensitive electrodes detect water levels. Turn the pump on and off automatically.
Tsurumi LB-800A
Three phase water pump With double SIC mag seal, oil lift And lightweight material, durable Same as the Single-Phase pump of Tsurumi pump

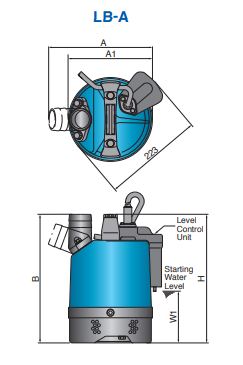

TSURUMI LB-A Series Submersible Pump Dimensions
TSURUMI LB-480A,TSURUMI LB-800A
| Model | A | A1 | B | H | W1 |
| TSURUMI LB-480A | 233 | 189 | 286 | 115 | |
| TSURUMI LB-800A | 230 | 186 | 338 | 341 | 170 |
TSURUMI LB-A Series Submersible Pump Specifications
TSURUMI LB-480A,TSURUMI LB-800A
| MODEL | Discharge Bore | Motor Output | Phase | Starting Method | Solids Passage | Dry Weight | Cable Length |
| mm | kW | mm | kg | m | |||
| TSURUMI LB-480 A | 50 | 0.48 | Single | Capacitor Run | 6 | 11 | 5 |
| TSURUMI LB-800A | 50 (80) | 0.75 | 6 | 13.7 | 5 |
