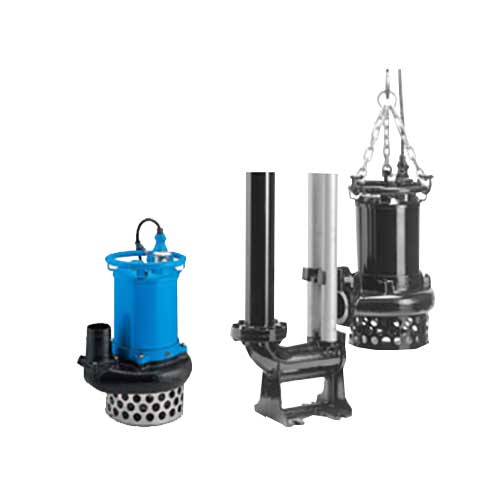

Submersible Pump TSURUMI NKZ Series
Tsurumi pumps, model NKZ, have agitator impeller Can make the soil sand or mud pass smoothly Also, the motor has a cooling system Makes the pump can work longer and continuously, more durable
Submersible Pump TSURUMI NKZ Series
TSURUMI NKZ3-C3/A3,NKZ3-D3/B3,NKZ-80H,NKZ3-C4/A4,NKZ3-D4/B,NKZ3-100H,NKZ3-D6/B6
Tsurumi Pump NKZ Series is a submersible three-phase light steel water pump, which is driven by 4-poles motor, spiral design allows the liquid to pass well. Motor cooled by a water jacket that helps the motor to cool efficiently even when working with motors that are exposed to air. The use of a suitable sliding rail system increases the maintenance convenience of the pump. Is a facility Such as steel work, ready-mixed concrete plants, and wastewater treatment plants that need to install pumps with fixed distribution pipes

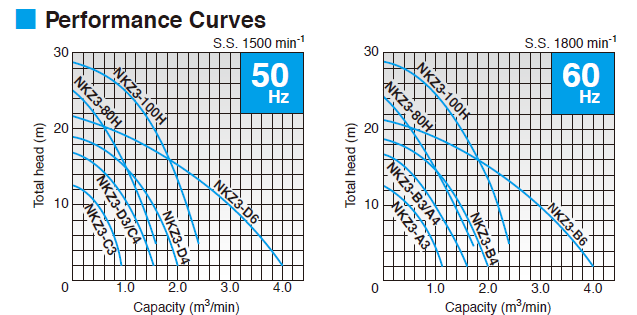

TSURUMI NKZ Series Submersible Pump Performance Curve
TSURUMI NKZ Series Submersible Pump Specifications
TSURUMI NKZ3-C3/A3,NKZ3-D3/B3,NKZ-80H,NKZ3-C4/A4,NKZ3-D4/B,NKZ3-
| Discharge Bore | Model | Motor output | Phase | Starting Method | Solid Passage | Dimensions | Weight | Cable Length |
| mm. | Kw. | mm. | L x H | Kg. | m. | |||
| mm. | ||||||||
| 80 | TSURUMI NKZ3-C3/A3 | 2.2 | Three | 10 | 0.5 | D.O.L | 91 | 8 |
| 80 | TSURUMI NKZ3-D3/B3 | 3.7 | 15 | 0.5 | D.O.L | 100 | 8 | |
| 80 | TSURUMI NKZ-80H | 5.5 | 20 | 0.55 | D.O.L | 132 | 8 | |
| 100 | TSURUMI NKZ3-C4/A4 | 3.7 | 10 | 1 | D.O.L | 37 | 8 | |
| 100 | TSURUMI NKZ3-D4/B4 | 5.5 | 15 | 1 | D.O.L | 115 | 8 | |
| 100 | TSURUMI NKZ3-100H | 11 | 25 | 1 | D.O.L | 196 | 8 | |
| 150 | TSURUMI NKZ3-D6/B6 | 11 | 15 | 2 | D.O.L | 192 | 8 |

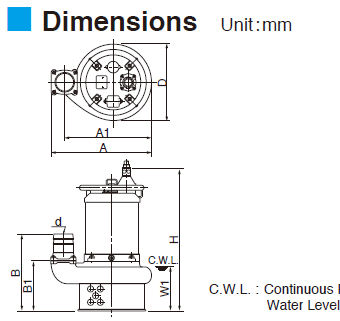

TSURUMI NKZ Series Submersible Pump Dimensions
TSURUMI NKZ3-C3/A3,NKZ3-D3/B3,NKZ-80H,NKZ3-C4/A4,NKZ3-D4/B,NKZ3-100H,NKZ3-D6/B6
| Model | d | A | A1 | B | B1 | D | H | W1 |
| TSURUMI NKZ3-C3/A3 | 80 | 467 | 405 | 371 | 249 | 370 | 664 | 225 |
| TSURUMI NKZ3-D3/B3 | 80 | 467 | 405 | 371 | 249 | 370 | 709 | 225 |
| TSURUMI NKZ-80H | 80 | 491 | 430 | 387 | 264 | 401 | 754 | 220 |
| TSURUMI NKZ3-C4/A4 | 100 | 467 | 405 | 386 | 249 | 370 | 709 | 225 |
| TSURUMI NKZ3-D4/B4 | 100 | 485 | 424 | 382 | 245 | 380 | 715 | 220 |
| TSURUMI NKZ3-100H | 100 | 547 | 486 | 422 | 284 | 414 | 841 | 240 |
| TSURUMI NKZ3-D6/B6 | 150 | 620 | 520 | 458 | 266 | 450 | 798 | 240 |
