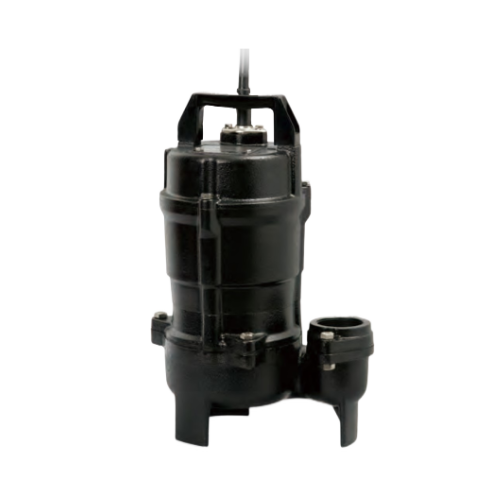

Submersible Pump TSURUMI UT Series
TSURUMI Pump UT Series is a compact submersible pump. The pump is made of cast iron. Vortex impeller is used in general industrial wastewater treatment systems. Good quality products From Japan.
Submersible Pump TSURUMI UT Series
Tsurumi 40UT2.25S,40UT2.25,50UT2.4S,50UT2.4,50UT2.75S,50UT2.75
Sewage pump with sediment and solid impurities in the water. The body is made of cast iron. The open impeller can be pumped through water containing 35 mm of sediment, lightweight, easy to move. Motor size 0.4 KW (1 / 2HP), 220V Single Phase power system0.75 KW motor (1HP), 220V Single Phase power system Device for protection of heat motor in reaction to heat caused by overcurrent or Automatically shuts down the motor circuit when the water is dry and when the heat is high, the motor cools down to a safe operating temperature. The motor will restart. The top and bottom mechanical seals are lubricated. With oil, ensuring the product has a longer service life

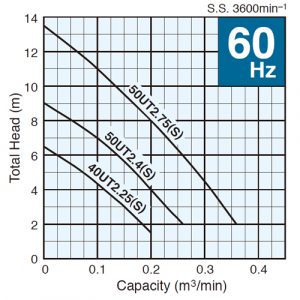

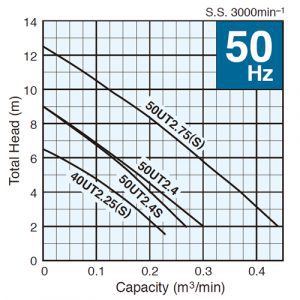

TSURUMI UT Series Performance Curve
Tsurumi 40UT2.25S,40UT2.25,50UT2.4S,50UT2.4,50UT2.75S,50UT2.75

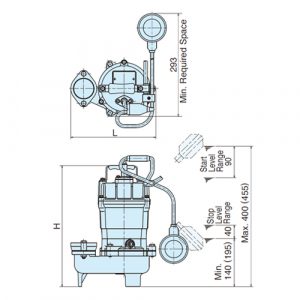

TSURUMI UT Series Dimensions
Tsurumi 40UT2.25S,40UT2.25,50UT2.4S,50UT2.4,50UT2.75S,50UT2.75
TSURUMI UT Series Specifications
Tsurumi 40UT2.25S,40UT2.25,50UT2.4S,50UT2.4,50UT2.75S,50UT2.75
| Discharge Bore | Model | Motor Output | Phase | Starting Method | Solid Passage | Dimensions LxH | Dry Weight | Cable Lenght | ||
| (mm) | Free Standing | Kw | mm | mm | kg | m | ||||
| Standara | Autometic | Guide rail Fitting | ||||||||
| 40 | 40UT2.25S | 40UTZ2.25S | TOK4-A | 0.25 | Single | Capacitor run | 35 | 239×350 | 13.5 | 5 |
| 40 | 40UT2.25 | – | TOK4-A | 0.25 | Three | D.O.L | 35 | 239×350 | 13 | 5 |
| 50 | 50UT2.4S | 50UTZ2.4S | TOK4-A | 0.4 | Single | Capacitor run | 35 | 242×350 | 13.5 | 5 |
| 50 | 50UT2.4 | – | TOK4-A | 0.4 | Three | D.O.L | 35 | 242×350 | 13 | 5 |
| 50 | 50UT2.75S | 50UTZ2.4S | TOK4-A | 0.75 | Single | Capacitor run | 35 | 242×406 | 16.5 | 5 |
| 50 | 50UT2.75 | – | TOK4-A | 0.75 | Three | D.O.L | 35 | 242×387 | 15.5 | 5 |
