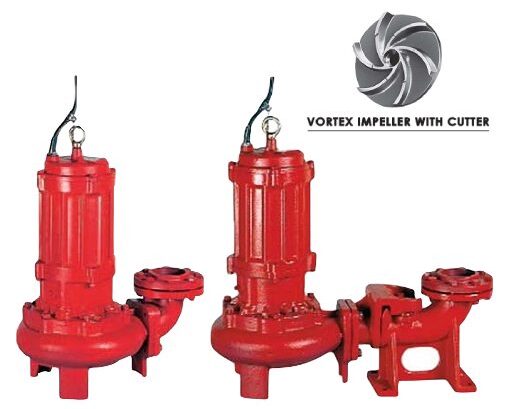

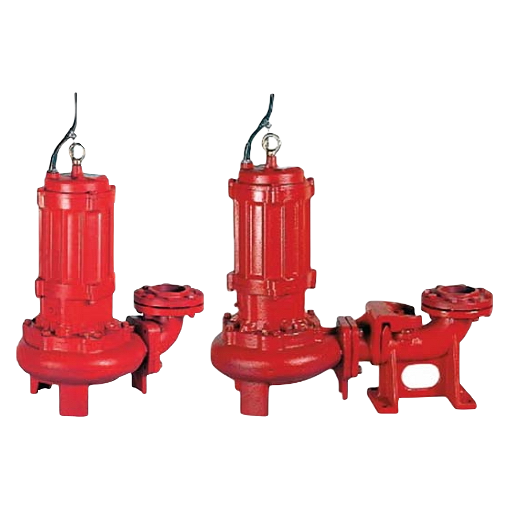

Submersible Pump KAWAMOTO AU4 Series
Submersible Water Pump KAWAMOTO Model AU4 device used for drainage from sewage tanks, kitchens, and other sources of sewage and waste water. It features a ceramic-coated cutter piece for long service life and excellent performance, an original suction configuration and casing structure, and a motor with built-in auto-cut to prevent burnout.
Facebook
Twitter
Email
Print
Model AU4
Submersible Water Pump (cutter) KAWAMOTO
4 Poles / 50 Hz Size 50-100 mm.
APPLICATIONS
- For drainage from sewage tanks, kitchens, and drainage of
other sewage and waste water.
FEATURES
- The ceramic-coated cutter piece help maintain long service life
with excellent performance. - Original suction configuration (patented) and casing structure.
- Equipped with a motor with built-in auto-cut to prevent motor burnout
- Two types available: flange type and pedestal suppor t type for
easy maintenance and inspection. - Some models with output of 3.7kW or less are available with a float switch (automatic, auto alternate built-in).
STANDARD SPECIFICATIONS
| Description | Model: AU4 | |
|---|---|---|
| Applicable Liquid | Waste water, filthy water and other miscellaneous dirty water | |
| Liquid Temperature | 0-40 °C | |
| pH | 5-9 | |
| Main Pump | Casing | Cast Iron |
| Impeller | FCD 4S0-SKDII (Ceramic coating) | |
| Shaft | Stainless Steel (SUS420J2) | |
| Motor | Speed | 1500 rpm |
| Protection | IP68, Class F | |
| Construction | Impeller | Vortex with cutter |
| Shaft Seal | Double mechanical seal Pump : Sic x Sic Motor: Ceramics x Carbon | |
| Motor Bearing | Sealed ball bearing | |
| Maximum Submergence | 0.7S kW : 5m. 1.5-7.5 kW : 8 m. | |

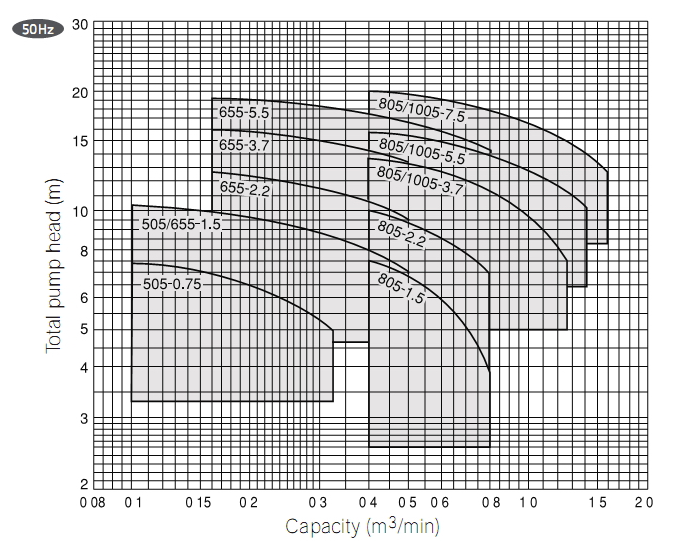

PERFORMANCE CHART
