Submersible Pump KOSHIN PKG Series
Submersible Grinder Pump KOSHIN PKG Series submersible pumps for use as a pump with Organic waste Suitable for pumping waste water such as food waste, leaf litter ,disposable wipes, garbage, fabrics the machine is highly durable
[vc_row][vc_column][vc_column_text]

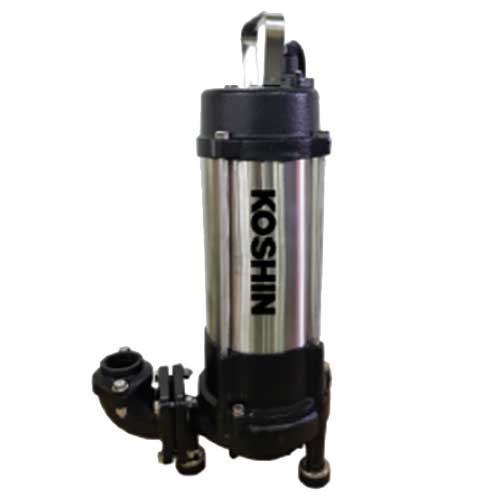

Submersible Pump KOSHIN PKG Series
Submersible Grinder Pump KOSHIN PKG Series is a sludge pump. With a Grinder or impeller for cutting, grinding Suitable for pumping water to grind sewage. Organic wastes such as food and leaf litter, as well as litter and offal.
KOSHIN PKG Series feature a high chrome iron grinder mechanism in the suction port to grind soft solids into small pieces and discharge without clogging.
[/vc_column_text][vc_column_text]
Construction Material
- Double Mechanical Seal (0.25 kw and above)
- Class F motor insulation
- Shaft sleeve saves on shaft wear due to abrasives and corrosion.
- Additional lip seal protection keeps impurities and abrasives away from the mechanical seals.
- Thermal overload protection guards against high amperage and high temperature.
- Enanced cable entry sealing system
[/vc_column_text][/vc_column][/vc_row][vc_row][vc_column][vc_column_text]
Performance Curve
[/vc_column_text][vc_row_inner][vc_column_inner][vc_single_image image=”760128″ img_size=”500×500″ alignment=”center”][/vc_column_inner][/vc_row_inner][/vc_column][/vc_row][vc_row][vc_column][vc_column_text]
Submersible Pump KOSHIN PKG Series Specifications
[/vc_column_text][vc_column_text]
| Model | Output (kW.) | Output (HP) | Discharge (inch) | Voltage | Max | Cable (M.) | Weight (kg..) | ||
| Head (M.) | Capacity (L/min.) | Solid (mm.) | |||||||
| KOSHIN PKG-750 | 0.75 | 1 | 1 1/4 | 1 Phase 100V-240V | 14/14 | 185/185 | 3 | 10 | 29 |
| KOSHIN PKG-1200 | 1.2 | 1.5 | 1 1/4 | 19/19 | 190/190 | 3 | 10 | 31 | |
| KOSHIN PKG-Series | 1.5 | 2 | 1 1/4 | 22/22 | 190/190 | 3 | 10 | 37 | |
[/vc_column_text][/vc_column][/vc_row][vc_row][vc_column][vc_column_text]
Dimensions
[/vc_column_text][vc_column_text]
| MODEL | Discharge Bore | PUMP SECTION | ||
| d | A | D | H | |
| KOSHIN PKG-750 | 1 1/4” (32) | 300 | 170 | 557 |
| KOSHIN PKG-1200 | 1 1/4” (32) | 300 | 170 | 557 |
| KOSHIN PKG-1500 | 1 1/4” (32) | 305 | 170 | 605 |
[/vc_column_text][/vc_column][/vc_row]
