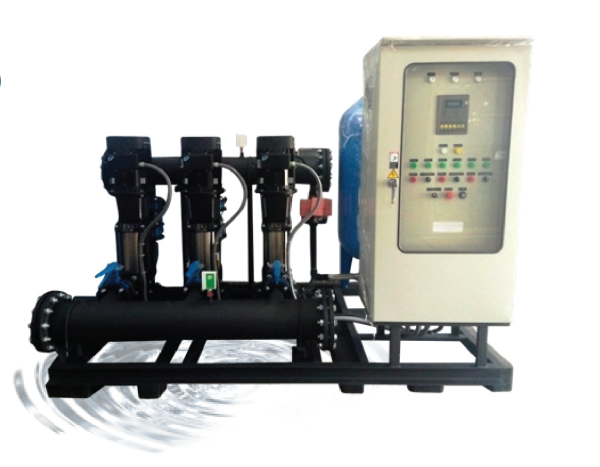

Booster Pump Set or System is a complete set assembly which is used for maintaining suitable water transfer pressure and flow rate, increasing water transfer and pump efficiency and reducing energy together with cost consumption.
This maintenance-friendly booster pump set is a suitable and cost effective solution for water transfer system. Especially for high-rise buildings or multi-story buildings that water pressure usually lack and become problems, booster pump set and transfer pump set are needed.

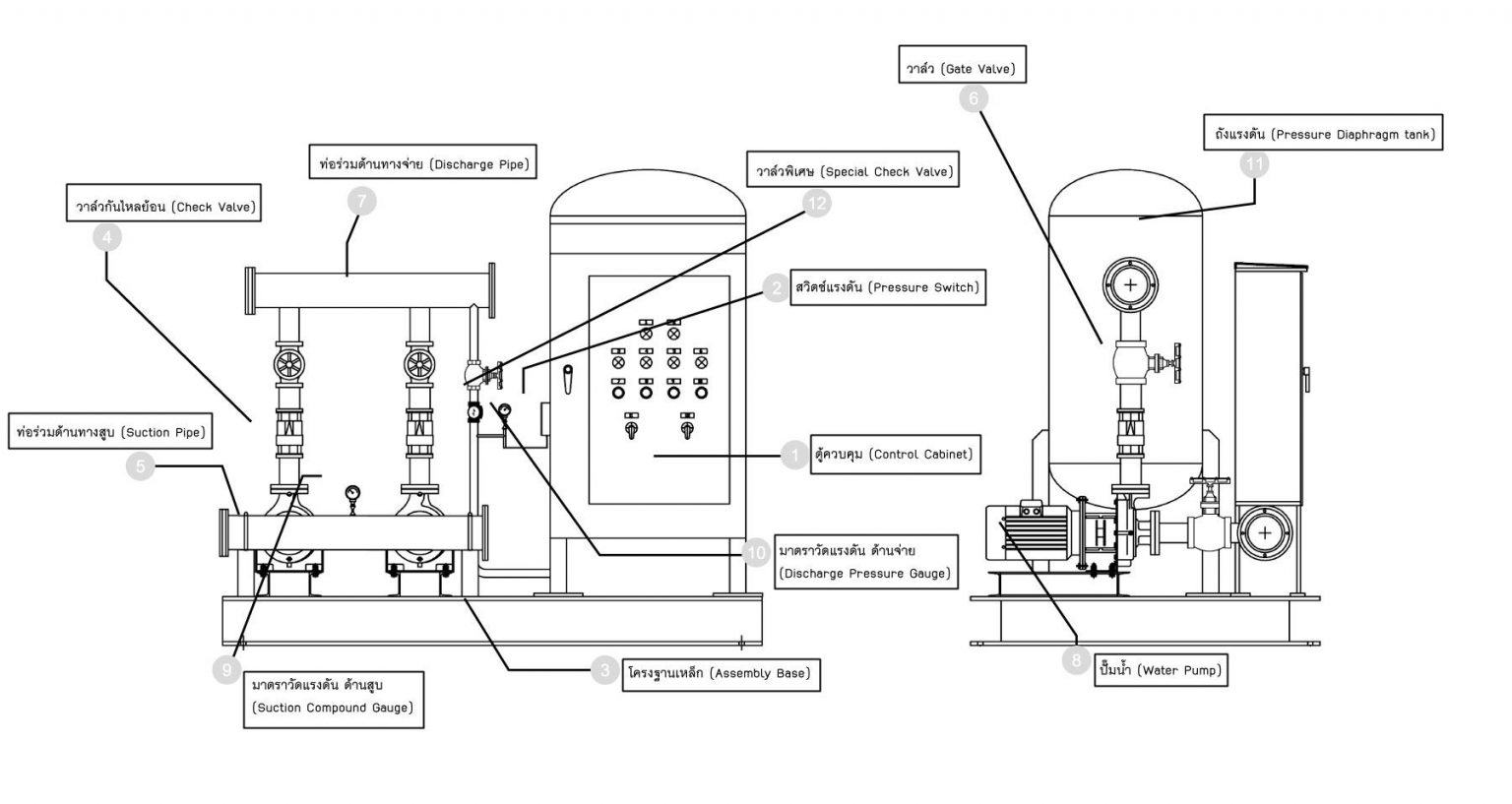

1. Control panel

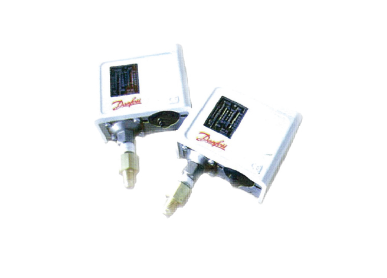

2. Pressure Switch
3. Assembly Base
4. Check Valve
5. Suction Pipe
6. Gate Valve
7. Discharge Pipe

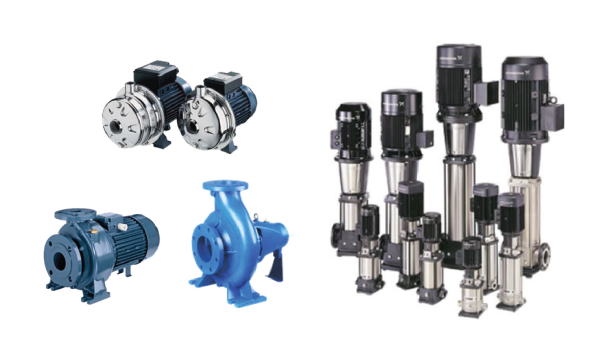

8. Centrifugal pump
9. Suction Compound Gauge
10. Discharge Pressure Gauge

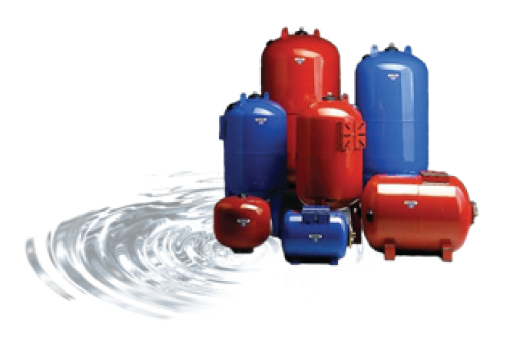

11. Pressure Tank
12. Special Check Valve
