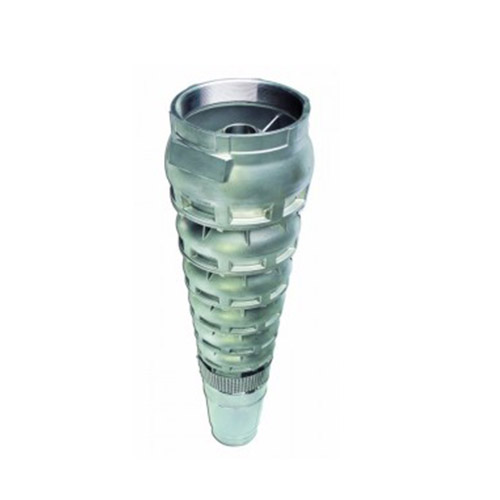

Borehole Pumps in AISI 304/ Duplex for 8″ wells LOWARA Z8, ZR8
The Z8-ZR8 series is designed for use in 8” wells. The pump is built in stainless steel and resists corrosion even in more aggressive environments thanks to the ZR8 version in Duplex.
This design feature boasts a “dynamic” wear ring which reduces hydraulic losses to a minimum and prevents the pump from blocking during stand-by periods. Meaning the pump is ideal for use in mining, water supply from deep wells and pressure boosting and water distribution applications in municipal and industrial systems.
Z8: AISI 304
ZR8: DUPLEX
All Z8, ZR8 pumps can be coupled to NEMA standard motors.
Specifications
- Delivery: up to 180 m³/h
- Head: up to 550 m
- Power supply: three-phase 50 and 60 Hz
- Power: from 5,5 kW up to 150 kW
- Maximum operating pressure: 55 bar
- Temperature of pumped liquid: to 30 °C
- Maximum immersion depth: 350 m
