Centrifugal Pump CALPEDA MXH Series

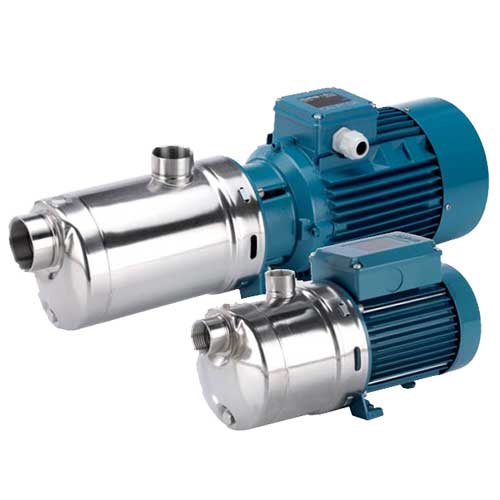

Calpeda water pump, MXH, horizontal multi-stage Stainless steel chromenickel model, compact and strong structure Suitable for use in homes Various industries
Centrifugal Pump CALPEDA MXH Series
CALPEDA MXH Series
Applications
- For tap water
- For clean liquid without corrosive substances
- Liquid temperature from – 15 ° C to + 110 ° C
- Ambient temperature up to 40 ° C
- Maximum pressure: 8 bar
CALPEDA MXH Series Performance
[vc_row_inner][vc_column_inner width=”1/2″][vc_single_image image=”747153″ img_size=”full” alignment=”center”][/vc_column_inner][vc_column_inner width=”1/2″][vc_single_image image=”747154″ img_size=”full” alignment=”center”][/vc_column_inner][/vc_row_inner][vc_row_inner][vc_column_inner][vc_single_image image=”747155″ img_size=”full” alignment=”center”][/vc_column_inner][/vc_row_inner]
Performance n =2800 rpm
| 3~ | 230V | 400V | 1~ | 230V | P1 | P2 | Q m3/h | 0 | 1 | 1.5 | 2 | 2.5 | 3 | 3.5 | 4 | 4.25 | 4.8 | |
| A | A | A | kW | kW | HP | l/min | 0 | 16.6 | 25 | 33.3 | 41.6 | 50 | 58.3 | 66.6 | 70.8 | 80 | ||
| MXH 202E | 1.7 | 1 | MXHM 202E | 2.3 | 0.5 | 0.33 | 0.45 | H m | 22 | 20.5 | 19.4 | 18 | 16.4 | 14.2 | 12 | 9.9 | 8.7 | 5.5 |
| MXH 203E | 2.4 | 1.4 | MXHM 203E | 3 | 0.65 | 0.45 | 0.6 | 33 | 31 | 29 | 27 | 24.5 | 21.7 | 18.6 | 15.5 | 13.8 | 9 | |
| MXH 204/A | 2.8 | 1.6 | MXHM 204/A | 4.2 | 0.9 | 0.55 | 0.75 | 45 | 42.5 | 40.4 | 37.5 | 34.5 | 30.8 | 26.7 | 22.4 | 20.1 | 14.8 | |
| MXH 205/A | 3.5 | 2 | MXHM 205/A | 5.4 | 1.2 | 0.75 | 1 | 57 | 53.5 | 50.5 | 47.5 | 43.5 | 39 | 34 | 28.5 | 25.8 | 19 | |
| MXH 206/A | 4.7 | 2.7 | MXHM 206 | 7.4 | 1.5 | 1.1 | 1.5 | 68.5 | 65 | 61.5 | 58 | 53.5 | 48 | 43 | 36.5 | 33.5 | 25 | |
| 3~ | 230V | 400V | 1~ | 230V | P1 | P2 | Q m3/h | 0 | 2.25 | 3 | 3.5 | 4 | 4.5 | 5 | 6 | 7 | 8 | |
| A | A | A | kW | kW | HP | l/min | 0 | 37.5 | 50 | 58.3 | 66.6 | 75 | 83.3 | 100 | 116 | 133 | ||
| MXH 402E | 2.4 | 1.4 | MXHM 402E | 3 | 0.65 | 0.45 | 0.6 | H m | 22.5 | 20 | 19 | 18.5 | 17.5 | 16 | 15 | 12.5 | 9.5 | 6 |
| MXH 403/A | 2.8 | 1.6 | MXHM 403/A | 4.2 | 0.9 | 0.55 | 0.75 | 33 | 30 | 29 | 27.5 | 26 | 24.5 | 23 | 19.5 | 15 | 9.5 | |
| MXH 404/A | 3.5 | 2 | MXHM 404/A | 5.4 | 1.2 | 0.75 | 1 | 44.5 | 40.5 | 38 | 36.5 | 35 | 33 | 31 | 26 | 20 | 12.5 | |
| MXH 405/A | 4.7 | 2.7 | MXHM 405 | 7.4 | 1.5 | 1.1 | 1.5 | 56.5 | 52 | 50 | 47.5 | 45.5 | 43 | 40 | 33.5 | 26 | 16.5 | |
| MXH 406 | 6.4 | 3.7 | MXHM 406 | 9.2 | 2 | 1.5 | 2 | 68.5 | 63 | 60 | 58 | 56 | 53.5 | 51 | 44 | 35 | 23 | |
| 3~ | 230V | 400V | 1~ | 230V | P1 | P2 | Q m3/h | 0 | 5 | 6 | 7 | 8 | 9 | 10 | 11 | 12 | 13 | |
| A | A | A | kW | kW | HP | l/min | 0 | 83.3 | 100 | 116 | 133 | 150 | 166 | 183 | 200 | 216 | ||
| MXH 802/A | 3.5 | 2 | MXHM 802/A | 5.4 | 1.2 | 0.75 | 1 | H m | 22.5 | 20.5 | 20 | 19 | 18 | 16.5 | 15 | 13 | 11 | 8.5 |
| MXH 802/A | 5 | 2.9 | MXHM 803 | 7.4 | 1.5 | 1.1 | 1.5 | 36 | 32 | 30.5 | 29 | 27.5 | 25.5 | 23 | 20 | 17 | 14 | |
| MXH 804 | 6.4 | 3.7 | MXHM 804 | 9.2 | 2 | 1.5 | 2 | 48 | 42.5 | 41 | 39 | 37 | 34.5 | 32 | 28 | 24 | 19.5 | |
| MXH 805 | 7.5 | 4.3 | 1.8 | 2.5 | 60 | 54 | 52 | 49.5 | 47 | 43.5 | 39.5 | 35 | 29.5 | 24 | ||||
| 3~ | 230V | 400V | P2 | Q m3/h | 0 | 5 | 8 | 11 | 14 | 16 | 18 | 20 | 22 | 25 | |
| A | A | kW | HP | l/min | 0 | 83.3 | 133 | 183 | 233 | 266 | 300 | 333 | 366 | 416 | |
| MXH 1602 | 6.4 | 3.7 | 1.5 | 2 | H m | 24 | 23 | 21.7 | 20.5 | 18.8 | 17.5 | 15.8 | 14 | 11.5 | 6.5 |
| MXH 1603 | 7.5 | 4.3 | 1.8 | 2.5 | 36 | 34 | 31.8 | 29.5 | 26.8 | 24.8 | 22.4 | 19.2 | 15.3 | 8.8 | |
| MXH 1604 | 11.5 | 6.6 | 3 | 4 | 48 | 46.5 | 44.5 | 41.5 | 38 | 36 | 33 | 29 | 23 | 14 | |
| MXH 1605 | 9.6 | 3.7 | 5 | 60 | 57.5 | 55 | 51.5 | 48 | 45 | 42 | 37.5 | 31.5 | 19 | ||
| MXH 1606 | 9.6 | 4 | 5.5 | 71 | 68 | 65 | 61 | 56 | 53 | 49 | 44 | 36 | 22 | ||
CALPEDA MXH Series Dimensions
[vc_row_inner][vc_column_inner][vc_single_image image=”747156″ img_size=”full”][/vc_column_inner][/vc_row_inner]
| Type | DN1 | DN2 | mm | kg | |||||
| ISO 228 | L | L1 | L2 | H | W | MXH | MXHM | ||
| MXH 202E – MXHM 202E | G 1 1/4 | G 1 | 331 | 94 | 182 | 176 | 98.5 | 6.8 | 6.9 |
| MXH 203E – MXHM 203E | G 1 1/4 | G 1 | 331 | 94 | 182 | 176 | 98.5 | 7.6 | 7.7 |
| MXH 204/A – MXHM 204/A | G 1 1/4 | G 1 | 381 | 118 | 206 | 193 | 112 | 10 | 11 |
| MXH 205/A – MXHM 205/A | G 1 1/4 | G 1 | 405 | 142 | 230 | 193 | 112 | 11.5 | 12.5 |
| MXH 206/A | G 1 1/4 | G 1 | 429 | 166 | 254 | 193 | 112 | 13,5 | – |
| MXH 402E – MXHM 402E | G 1 1/4 | G 1 | 331 | 94 | 182 | 176 | 98.5 | 7.6 | 7.7 |
| MXH 403/A – MXHM 403/A | G 1 1/4 | G 1 | 357 | 94 | 182 | 193 | 112 | 9.3 | 10.3 |
| MXH 404/A – MXHM 404/A | G 1 1/4 | G 1 | 381 | 118 | 206 | 193 | 112 | 10.8 | 11.8 |
| MXH 405/A | G 1 1/4 | G 1 | 405 | 142 | 230 | 193 | 112 | 13 | – |
| MXH 802/A – MXHM 802/A | G 1 1/2 | G 1 | 381 | 118 | 206 | 193 | 112 | 10.6 | 11.6 |
| Type | DN1 | DN2 | mm | kg | |||||||
| ISO 228 | L | L1 | L2 | L3 | H | h1 | h2 | MXH | MXHM | ||
| MXHM 206 | G 1 1/4 | G 1 | 500 | 166 | 254 | 88 | 210 | 127 | 184 | – | 18.6 |
| MXHM 405 | G 1 1/4 | G 1 | 476 | 142 | 230 | 88 | 210 | 127 | 184 | – | 18 |
| MXH 406 – MXHM 406 | G 1 1/4 | G 1 | 500 | 166 | 254 | 88 | 210 | 127 | 184 | 19.5 | 20.5 |
| MXH 803 – MXHM 803 | G 1 1/2 | G 1 | 452 | 118 | 206 | 88 | 210 | 127 | 184 | 15.8 | 16.9 |
| MXH 804 – MXHM 804 | G 1 1/2 | G 1 | 482 | 148 | 236 | 88 | 210 | 127 | 184 | 18.2 | 19.2 |
| MXH 805 | G 1 1/2 | G 1 | 512 | 178 | 266 | 88 | 210 | 127 | 184 | 19 | – |
| MXH 1602 | G 2 | G 1 1/2 | 476 | 128 | 230 | 101 | 210 | 117 | 187 | 18.2 | – |
| MXH 1603 | G 2 | G 1 1/2 | 476 | 128 | 230 | 101 | 210 | 117 | 187 | 18.4 | – |
| MXH 1604 | G 2 | G 1 1/2 | 687 | 166 | 279 | 113 | 225 | 132 | 202 | 30.8 | – |
| MXH 1605 | G 2 | G 1 1/2 | 687 | 203 | 316 | 113 | 225 | 132 | 202 | 35 | – |
| MXH 1606 | G 2 | G 1 1/2 | 687 | 241 | 354 | 113 | 225 | 132 | 202 | 35.9 | – |
