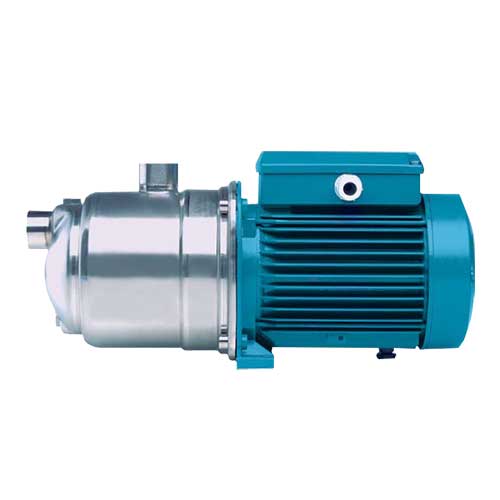

Centrifugal Pump CALPEDA MXP/MXPM Series
Calpeda MXP, MXPM Serie horizontal, vertical, speed 2900 rpm, built-in motor High efficiency type IE3 (Premium Efficiency) and can be used with variable speed motor Variable Speed Drive suitable for general multi-purpose water pumping. Or used in homes delivering up to 120 liters of water per minute. Housing: Grade 304 stainless steel pump.
Facebook
Twitter
Email
Print
Centrifugal Pump CALPEDA MXP/MXPM Series
CALPEDA MXP/MXPM Series Applications
- For water supply.
- For domestic use, for garden use and irrigation.
- Motor 2-pole induction motor, 50 Hz (n = 2800 rpm). MXP: three-phase 230/400 V + 10%. MXPM: single-phase 230 V + 10%, with thermal
- protector. Capacitor inside the terminal box. Insulation class F. Protection IP 54.
CALPEDA MXP/MXPM Series Performance
[vc_row_inner][vc_column_inner][vc_single_image image=”747159″ img_size=”full”][/vc_column_inner][/vc_row_inner]
| 3~ | 230V | 400V | 1~ | 230V | P1 | P2 | Q m3 /h | 0 | 1 | 1.5 | 2 | 2.5 | 3 | 3.5 | 4 | 4.5 | 5 | |
| A | A | A | kW | kW | HP | l/min | 0 | 16.6 | 25 | 33.3 | 41.6 | 50 | 58.3 | 66.6 | 75 | 83.3 | ||
| MXP 202 | 1.7 | 1 | MXPM 202 | 2.3 | 0.45 | 0.33 | 0.45 | H m | 21.5 | 19 | 17.5 | 16 | 14.5 | 12.5 | 10.5 | 8.5 | 6.5 | |
| MXP 203 | 2.4 | 1.4 | MXPM 203 | 3 | 0.63 | 0.45 | 0.6 | 32.5 | 29 | 27 | 25 | 22.5 | 20 | 20 | 14 | 11 | 7.5 | |
| MXP 204/A | 2.8 | 1.6 | MXPM 204/A | 4.2 | 0.8 | 0.55 | 0.75 | 45 | 40 | 37.5 | 35 | 32 | 28.5 | 28.5 | 21.5 | 17 | 13 | |
| 3~ | 230V | 400V | 1~ | 230V | P1 | P2 | Q m3 /h | 0 | 2.25 | 3 | 3.5 | 4 | 4.5 | 5 | 6 | 7.2 | |
| A | A | A | kW | kW | HP | l/min | 0 | 37.5 | 50 | 58.3 | 66.6 | 75 | 83.3 | 100 | 120 | ||
| MXP 402 | 2.4 | 1.4 | MXPM 202 | 3 | 0.61 | 0.45 | 0.6 | H m | 22 | 19 | 17.5 | 16.5 | 15 | 14 | 12.5 | 9.5 | 5 |
| MXP 403/A | 2.8 | 1.6 | MXPM 203 | 4.2 | 0.9 | 0.55 | 0.75 | 33.5 | 30 | 28 | 26.5 | 25 | 23 | 21.5 | 17 | 10 | |
| MXP 404/A | 3.5 | 2 | MXPM 204/A | 5.4 | 1.2 | 0.75 | 1 | 46 | 40 | 38 | 36.5 | 34 | 32 | 29.5 | 24 | 16 | |
CALPEDA MXP/MXPM Series Dimensions
[vc_row_inner][vc_column_inner][vc_single_image image=”747160″ img_size=”full”][/vc_column_inner][/vc_row_inner]
| Type | mm | kg | |||
| f | h3 | W | MXP | MXPM | |
| MXP 202 – MXPM 202 | 362 | 176 | 102 | 5.9 | 6 |
| MXP 203 – MXPM 203 | 362 | 176 | 102 | 6.6 | 6.7 |
| MXP 204/A – MXPM 204/A | 391 | 192 | 112 | 8.7 | 9.6 |
| MXP 402 – MXPM 402 | 362 | 176 | 102 | 6.5 | 6.6 |
| MXP 403/A – MXPM 403/A | 391 | 192 | 112 | 8.6 | 9.5 |
| MXP 404/A – MXPM 404/A | 391 | 192 | 112 | 9.5 | 10.5 |
