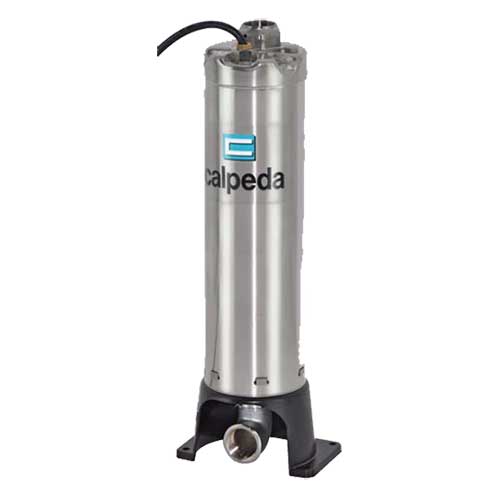

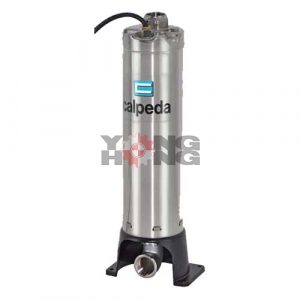

Calpeda MXSU, MXSUM vertical, multi-stage, 2900 rpm vertical speed centrifugal pump with built-in motor Water-cooled, suitable for multi-purpose water distribution or home use Workable Even with flooding, delivering up to 183 liters of water per minute, the housing is a grade 304 stainless steel pump with 1-phase and 3-phase electrical systems.
3 ~ | 230 V | 400 V | 1 ~ | 230 V | Capacitor | P1 | P2 | Q m3 /h | 0 | 1 | 1.5 | 2 | 2.5 | 3 | 3.5 | 4 | 4.5 | ||
A | A | A | μF | V | kW | kW | HP | l/min | 0 | 16.6 | 25 | 33.3 | 41.6 | 50 | 58.3 | 66.6 | 75 | ||
MXSU 203/A | 2.4 | 1.4 | MXSUM 203/A | 3.5 | 20 | 450 | 0.8 | 0.55 | 0.75 | H m | 33 | 31 | 29.5 | 27.5 | 25 | 22 | 19 | 16 | 12 |
MXSU 204/A | 2.7 | 1.6 | MXSUM 204/A | 4.1 | 20 | 450 | 0.85 | 0.55 | 0.75 | 44 | 41.5 | 39.5 | 36.5 | 33.5 | 29.5 | 25.5 | 21 | 16 | |
MXSU 205/A | 3.3 | 1.9 | MXSUM 205/A | 5 | 20 | 450 | 1.1 | 0.75 | 1 | 53 | 49.5 | 47 | 44 | 40 | 35 | 30 | 25 | 19 | |
MXSU 206/A | 3.8 | 2.2 | MXSUM 206/A | 6 | 25 | 450 | 1.3 | 0.9 | 1.2 | 65 | 61 | 58 | 54 | 49 | 43 | 37 | 30.5 | 23 |
3 ~ | 230 V | 400 V | 1 ~ | 230 V | Capacitor | P1 | P2 | Q m3 /h | 0 | 2.5 | 3 | 3.5 | 4 | 4.5 | 5 | 6 | 7 | 8 | ||
A | A | A | μF | V | kW | kW | HP | l/min | 0 | 41.6 | 50 | 58.3 | 66.6 | 75 | 83.3 | 100 | 116 | 133 | ||
MXSU 404/A | 3.8 | 2.2 | MXSUM 404/A | 6 | 25 | 450 | 1.3 | 0.9 | 1.2 | H m | 43 | 39 | 38 | 36.5 | 34.5 | 33 | 30.5 | 25.5 | 19.5 | 13 |
MXSU 405/A | 4.5 | 2.6 | MXSUM 405/A | 7 | 25 | 450 | 1.55 | 1.1 | 1.5 | 53 | 48 | 46.5 | 45 | 42.5 | 40 | 37.5 | 31 | 24 | 15 |
3 ~ | 230 V | 400 V | 1 ~ | 230 V | Capacitor | P1 | P2 | Q m3 /h | 0 | 5 | 6 | 7 | 8 | 9 | 10 | 11 | ||
A | A | A | μF | V | kW | kW | HP | l/min | 0 | 83.3 | 100 | 116 | 133 | 150 | 166 | 183 | ||
MXSU 803/A | 4.5 | 2.6 | MXSUM 803/A | 7 | 25 | 450 | 1.55 | 1.1 | 1.5 | H m | 34.5 | 29.5 | 28 | 26.5 | 24.5 | 22.5 | 20 | 16.5 |
MXSU 804/A | 6.6 | 3.8 | 1.5 | 2 | 45.5 | 39 | 37 | 35 | 32.5 | 30 | 26.5 | 22.5 |
PUMP | H | kg |
mm | ||
MXSU 203/A | 524 | 11.3 |
MXSU 204/A | 524 | 11.5 |
MXSU 205/A | 548 | 12 |
MXSU 206/A | 572 | 13.3 |
MXSU 404/A | 524 | 12.4 |
MXSU 405/A | 548 | 12.9 |
MXSU 803/A | 548 | 12.5 |
MXSU 804/A | 548 | 14.7 |
PUMP | H | kg |
mm | ||
MXSUM 203/A | 524 | 12.3 |
MXSUM 204/A | 524 | 12.5 |
MXSUM 205/A | 548 | 13.6 |
MXSUM 206/A | 572 | 14.8 |
MXSUM 404/A | 524 | 14 |
MXSUM 405/A | 548 | 14.4 |
MXSUM 803/A | 548 | 14.1 |
