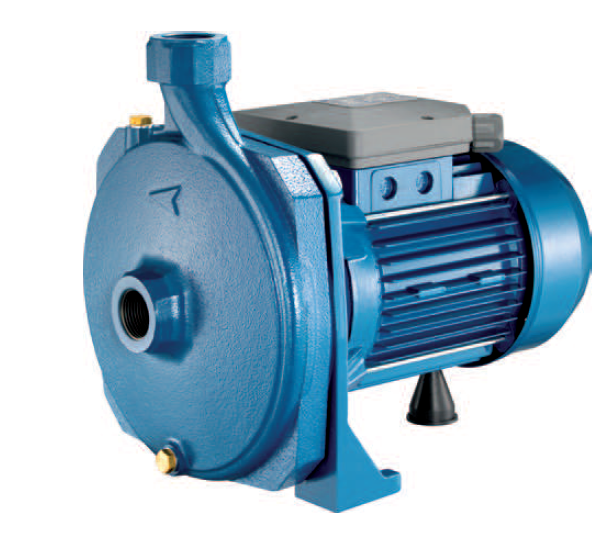

Centrifugal Pump FORAS KM 160-310
Foras centrifugal pump KM 160-310. The pump is made of high quality cast iron, rust-proof, impeller is made of brass, not rust. Suitable for a variety of applications The product is durable in use.
Facebook
Twitter
Email
Print
Centrifugal Pump FORAS KM 160-310
Applications
- Suitable for general water pumping tasks Needs a small amount of water Medium high delivery
- Suitable for use in transportation to residential buildings
- Suitable for use in agricultural and industrial water systems
- Suitable for use with agricultural water systems
- Suitable for general water pumping tasks
Property
- Single impeller centrifugal pump
- Medium to low water content
- Pipe size 1 inch
- Motor size 0.5-2 horsepower
- Able to deliver water up to 53-35 metersฃ
- Water flow rate 20-150 liters / minute
Power system
- There are two power lines, 1 phase 220V and 3 phase 380V.
FORAS KM 160-310 Centrigugal Pump Specifications
| CARATTERISTICHE COSTRUTTIVE / CONSTRUCTION FEATURES CARACTERISTICAS CONSTRUCTIVAS / CARACTERISTIQUES D’EXECUTION |
|
| Corpo pompa | ghisa |
| Pump body | cast iron |
| Cuerpo bomba | fundicion |
| Corps de pompe | fonte |
| Supporto motore | ghisa |
| Motor bracket | cast iron |
| Soporte motor | fundicion |
| Support moteur | fonte |
| Girante | Noryl® o ottone |
| Impeller | Noryl® or brass |
| Rodete | Noryl® o laton |
| Turbine | Noryl® ou laiton |
| Tenuta meccanica | ceramica-grafite |
| Mechanical seal | ceramic-graphite |
| Sello mecanico | ceramica-grafito |
| Garniture mecanique | ceramique-graphite |
| Albero motore | aciero AISI 303 |
| Motor shaft | stainless steel AISI 303 |
| Eje motor | acero AISI 303 |
| Arbre moteur | acier AISI 303 |
| Temperatura del liquido | girante Noryl®: o 0-50 °C |
| girante ottone: 0-90°C | |
| Liquid temperature | Noryl® impeller : 0-50 °C |
| brass impeller: 0-90°C | |
| Temperatura del liquido | rodete Noryl® : 0-50°C |
| rodete laton: 0-90°C | |
| Temperature du liquide | turbine Noryl®l : 0-50°C |
| turbine laton: 0-90°C | |
| Pressione di esercizio | |
| Operating pressure | max 8 bar |
| Presion de trabajo | |
| Pression de fonctionnement | |
| MOTORE / MOTOR / MOTOR / MOTEUR | |
| Motore 2 poli a induzione | 3- 230/400V-50Hz |
| 2 pole induction motor | 1-230V-50Hz con termoprotettore |
| Motor de 2 polos a inducción | with thermal protection |
| con proteccion termica | |
| Moteur a induction a 2 poles | avec protection thermique |
| Classe di isolamento | |
| Insulation class | F |
| Clase de aislamiento | |
| Classe d’isolation | |
| Grado di protezione | |
| Protection degree | IP44 |
| Grado de proteccion | |
| Protection | |

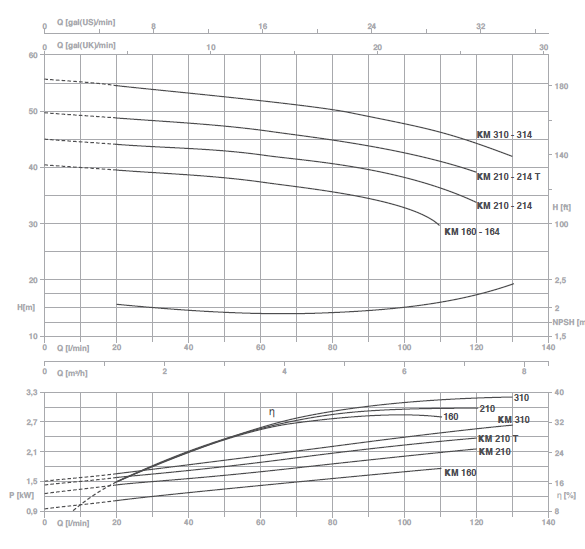

FORAS KM 160-310 Centrifugal Pump Performance Curve
| Type | P2 | P1 (kW) | AMPERE | Q (m3/h – l/min) | ||||||||||||
| 1~ | 3~ | 1~ | 3~ | 0 | 1.2 | 2.4 | 3.6 | 4.8 | 5.4 | 6.6 | 7.2 | 7.8 | ||||
| HP | kW | 1~ | 3~ | 1x230V 50 Hz | 3x400V 50 Hz | 0 | 20 | 40 | 60 | 80 | 90 | 110 | 120 | 130 | ||
| H(m) | ||||||||||||||||
| KM 160/164 | KM 160/164 T | 1.5 | 1.1 | 1.9 | 1.8 | 8.5 | 3.4 | 40.5 | 39.3 | 38.6 | 37.5 | 35.6 | 34.6 | 29.5 | ||
| KM 210/214 | 2 | 1.5 | 2.2 | 10.3 | 45.1 | 44.1 | 43.3 | 42.3 | 40.5 | 39.2 | 36.4 | 33.5 | ||||
| KM 210/214 T | 2 | 1.5 | 2.43 | 4.9 | 50 | 48.7 | 47.8 | 46.5 | 44.9 | 43.7 | 41.3 | 39.4 | ||||
| KM 310/314 | KM 310/314 T | 3 | 2.2 | 2.85 | 2.67 | 13.5 | 5.1 | 55.9 | 54.5 | 53.4 | 52 | 50.1 | 48.9 | 46.2 | 44.2 | 41.9 |

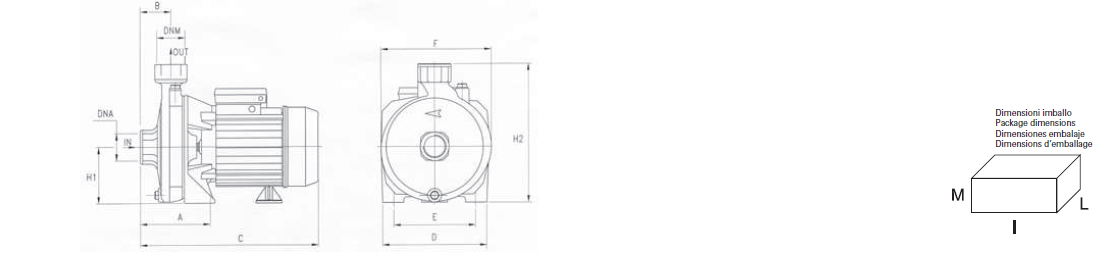

FORAS KM 160-310 Centrifugal Pump Dimensions
| TYPE | DIMENSIONS (mm) | CUBE | Kg | |||||||||||
| A | B | C | D | E | F | H1 | H2 | DNA | DNM | I | L | M | ||
| KM 160 | 117 | 46.5 | 348 | 220 | 180 | 225 | 115 | 285 | 1″G | 1″G | 370 | 240 | 315 | 22.5 |
| KM 164 | 117 | 46.5 | 348 | 220 | 180 | 225 | 115 | 285 | 1″ 1/4 G | 1″G | 370 | 240 | 315 | 22.5 |
| KM 210 | 117 | 46.5 | 348 | 200 | 180 | 225 | 115 | 285 | 1″G | 1″G | 370 | 240 | 315 | 23 |
| KM 214 | 117 | 46.5 | 348 | 220 | 180 | 225 | 115 | 285 | 1″ 1/4 G | 1″G | 370 | 240 | 315 | 23 |
| KM 310 | 117 | 46.5 | M 410 | 220 | 180 | 225 | 115 | 285 | 1″G | 1″G | 370 | 240 | 315 | M 27.5 |
| T 348 | T 23.5 | |||||||||||||
| KM 314 | 117 | 46.5 | M 410 | 220 | 180 | 225 | 115 | 285 | 1″ 1/4 G | 1″G | 370 | 240 | 315 | M 27.5 |
| T 348 | T 23.5 | |||||||||||||
