ปั๊มน้ำหอยโข่ง FORAS KM Series

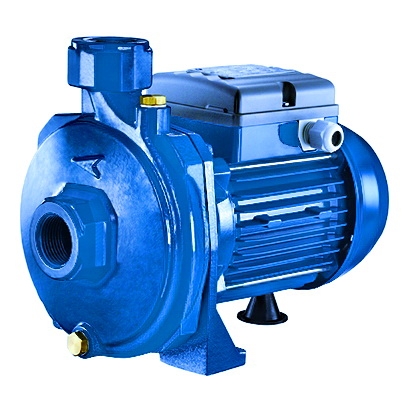

Centrifugal Pump FORAS KM 45-100

Foras Centrifugal Pump KM 45-100 The pump is made of high quality cast iron, rust-proof, impeller is made of brass, not rust. Suitable for a variety of applications The product is durable in use.

Category Tags , , , , , , ,
ขอใบเสนอราคา/Request a quote
Facebook
Twitter
Email
Print

Centrifugal Pump FORAS KM 45-100

Applications

  • suitable for general water pumping tasks Needs a small amount of water Medium high delivery
  • suitable for use in transportation to residential buildings
  • Suitable for use in agricultural and industrial water systems
  • Suitable for use with agricultural water systems
  • suitable for general water pumping tasks

property

  • single impeller centrifugal pump
  • Medium to low water content
  • pipe size 1 inch
  • Motor size 0.5-2 horsepower
  • able to deliver water up to 53-35 meters
  • Water flow rate 20-150 liters / minute
  • Operating pressure 6 BAR

Power system

  • There are two power lines, 1 phase 220V and 3 phase 380V.

The motor

  •  Motor made from 100% high quality copper wire for maximum power Do not make the cycle fall Makes the motor last longer
  • Motor body Manufactured from lightweight aluminum. Good heat dissipation Makes it possible to extend the service life for longer
  • CLASS F insulation can withstand 155 degrees of heat, thus allowing for longer use
  • IP58, able to prevent small dust And prevents raindrops or large drops of water Can help extend the service life even longer It also helps to save money.
  • Environment temperature up to 40 ° can be used in all areas

FORAS KM 45-100 Centrifugal Pump Specfications

CARATTERISTICHE COSTRUTTIVE / CONSTRUCTION FEATURES
CARACTERISTICAS CONSTRUCTIVAS / CARACTERISTIQUES D’EXECUTION
Corpo pompa ghisa
Pump body cast iron
Cuerpo bomba fundicion
Corps de pompe  fonte
Supporto motore ghisa (KM45-50)
ghisa o alluminio (KMBO-100)
Motor bracket  cast iron (KM45-50)
cast iron or aluminium (KMBO-100)
Soporte motor fundicion (KM45-50)
fundicion o aluminio (KMB0-100)
Support moteur fonte (KM45-50)
fonte ou aluminium (KMBO-100)
Girante  Noryl® o ottone
Impeller Noryl® or brass
Rodete  Noryl® o laton
Turbine Noryl® ou laiton
Tenuta meccanica  ceramica-grafite
Mechanical seal ceramic-graphite
Sello mecanico ceramica-grafito
Garniture mecanique ceramique-graphite
Albero motore aciero AISI 416
Motor shaft stainless steel AISI 416
Eje motor acero AISI 416
Arbre moteur acier AISI 416
Temperatura del liquido  girante  Noryl®o support aluminium: 0-50 °C
girante ottone: 0-90°C
Liquid temperature Noryl® impeller or aluminium bracket: 0-50 °C
brass impeller: 0-90°C
Temperatura del liquido rodete Noryl®o soporte aluminio: 0-50°C
rodete laton: 0-90°C
Temperature du liquide turbine e Noryl® o soporte aluminio: 0-50°C
turbine laton: 0-90°C
Pressione di esercizio
Operating pressure max 6 bar
Presion de trabajo
Pression de fonctionnement
MOTORE / MOTOR / MOTOR / MOTEUR
Motore 2 poli a induzione 3- 230/400V-50Hz
2 pole induction motor 1-230V-50Hz
con termoprotettore
 Motor de 2 polos a inducción with thermal protection
con proteccion termica
Moteur a induction a 2 poles avec protection thermique
Classe di isolamento
Insulation class F
Clase de aislamiento
Classe d’isolation
Grado di protezione
Protection degree IP44
Grado de proteccion
Protection

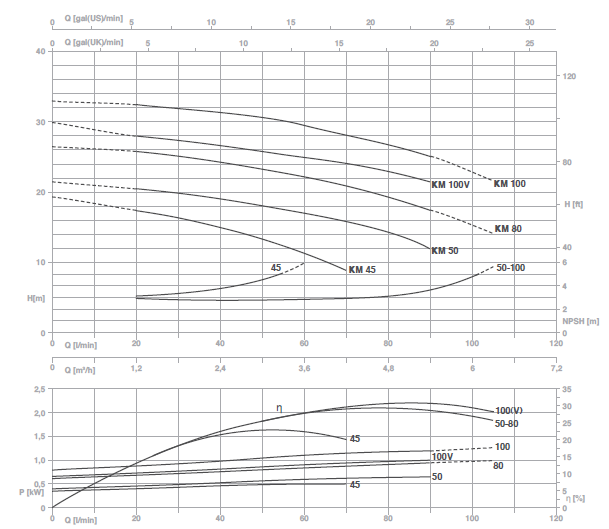

FORAS KM 45-100 Centrifugal Pump Performance Curve

KM Dimen



Type P2 P1 (kW) AMPERE Q (m3/h – l/min)
1~  3~ 1~  3~ 0 1.2 2.4 3.6 4.2 4.8 5.4
HP kW 1~  3~ 1x230V 50 Hz 3x400V 50 Hz 0 20 40 60 70 80 90
H(m)
KM 45 KM 45 T 0.4 0.3 0.51 0.56 2.3 1 19.3 17.4 15 11.3 8.9
KM 50 KM 50 T 0.5 0.37 0.59 0.65 2.8 1.1 21.5 20.5 19 17 15.8 15 12
KM 80 KM 80 T 0.8 0.59 0.9 0.94 4.5 1.7 26.5 25.8 24.5 22.2 20.9 19.5 17.5
KM 100V KM 100V T 1 0.74 1.05 4.6 30 28 26.6 25 24.1 23 21.5
KM 100 KM 100 T 1 0.74 1.16 1.17 5.7 2 33 32.5 31.5 29.6 28.3 26.8 25.2

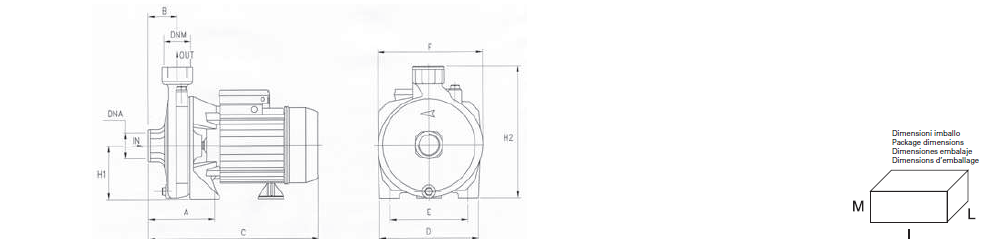

FORAS KM 45-100 Centrifugal Pump Dimensions

KM Dimen.1

TYPE DIMENSIONS (mm) CUBE Kg
A B C D E F H1 H2 DNA DNM I L M
KM 45 95 45.5 265 150 110 160 82 202 1″ G 1″ G 290 175 225 8.5
KM 50 95 45.5 265 150 110 160 82 202 1″ G 1″ G 290 175 225 9
KM 80 110 46.5 300 180 140 185 97 234 1″ G 1″ G 325 200 265 12.7
KM 100V  110 46.5 300 180 140 185 97 234 1″ G 1″ G 325 200 265 13.5
KM 100 110 46.5 300 180 140 185 97 234 1″ G 1″ G 325 200 265 14
