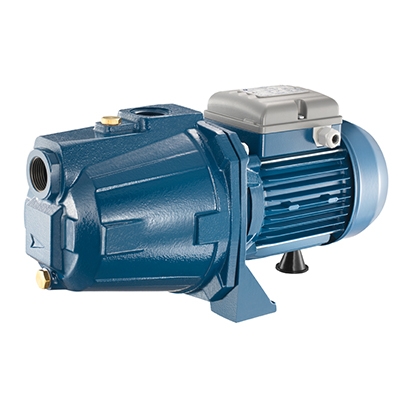

Centrifugal Pump FORUS JA/JR Series

Centrifugal Pump FORUS JA/JR Series

Electrical system

• There are two power lines, 1 phase 220V and 3 phase 380V.

The machine

• The nautilus body is made of high quality cast iron, rust-proof Resulting in longer service life of The pump Reduce The cost of replacing a new pump.
• The impeller is made of brass, not rust. Without problems in use in all conditions
• Stainless steel shaft SUS 304, not rust, highly resistant to corrosion, thus helping to prolong the service life for a long time No problems with maintenance
• Maximum liquid temperature resistant to 40 degrees, can be used in a variety of applications.
• Suction up to 8 meters deep.

The motor

•  Motor made from high quality 100% copper wire for full power Does not cause the cycle to fall, resulting in longer service life
• Motor body Manufactured from lightweight aluminum. Good heat dissipation, allowing for longer service life
• CLASS F insulation, heat resistant to 150 degrees, thus allowing for longer use
• IP55, can prevent small dust And prevents raindrops or large drops of water can help extend The service life even longer It also helps to save money.
• Resistant to environmental temperatures up to 40 degrees can be used in a variety of environments.

Applications

• Suitable for delivering water to buildings, houses
• or used with agricultural water systems
• And water distribution work General purpose

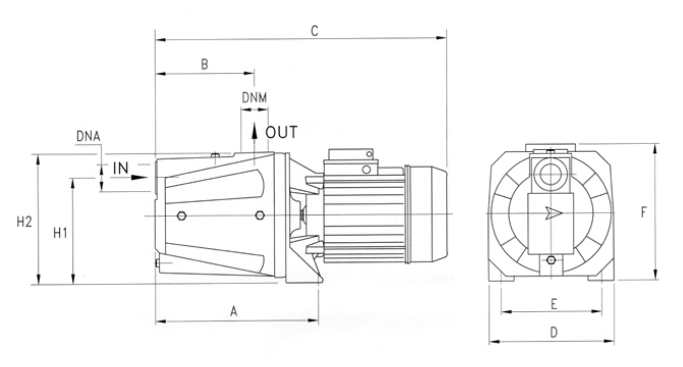

Specifications

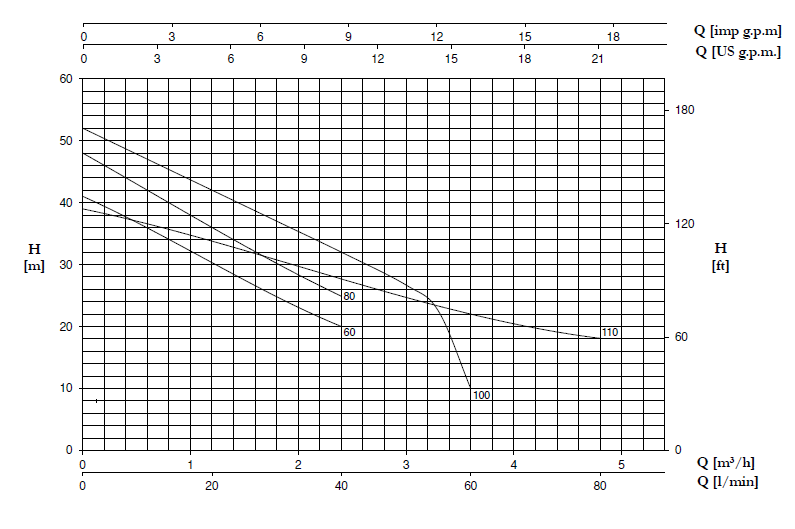

Performance Curve
