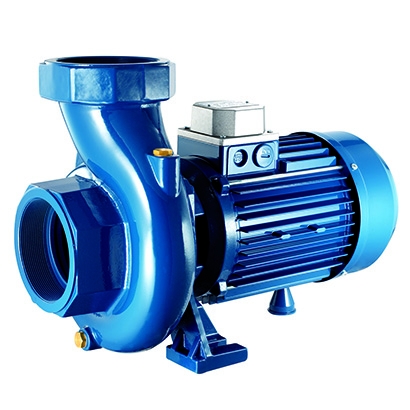

Cenrifugal Pump FORUS SD Series
Foras centrifugal pump SD model is a single impeller centrifugal pump with inlet diameter 2-4 inches Motor size 1-5.5 horsepower can send water up to 18-7.5 meters.Water flow rate 300 – 1000 liters / minute 1 phase / 3 phase power
Facebook
Twitter
Email
Print
Cenrifugal Pump FORUS SD Series
property
The impeller is made of brass, not rust. No problems with The use in every environment.
- Stainless steel shaft SUS 304, not rust, high corrosion resistance Therefore helps to prolong the service life No problems with maintenance
- Maximum fluid temperature up to 40 degrees can be used everywhere.
- Suction up to a maximum of 8 meters.
- Motor made from high quality 100% copper wire for full power Does not cause the cycle to fall, resulting in longer service life
Motor body Manufactured from lightweight aluminum. Good heat dissipation Makes it possible to extend The service life for longer
IP55, can prevent small dust And prevents raindrops or large drops of water can help extend The service life even longer it also helps to save money. - Resistant to environmental temperatures up to 40 degrees, can be used for a long time and is durable.
Applications
- Suitable for use in agricultural water systems
- Suitable for general multi-purpose water distribution
Specifications
| CARATTERISTICHE COSTRUTTIVE / CONSTRUCTION FEATURES CARACTERISTICAS CONSTRUCTIVAS / CARACTERISTIQUES D’EXECUTION |
|
| Corpo pompa | ghisa |
| Pump body | cast iron |
| Cuerpo bomba | fundicion |
| Corps de pompe | fonte |
| Supporto motore | ghisa |
| Motor bracket | cast iron |
| Soporte motor | fundicion |
| Support moteur | fonte |
| Girante | ghisa / ottone (SBD) |
| Impeller | cast iron / brass |
| Rodete | fundicion / laton |
| Turbine | fonte / laiton |
| Tenuta meccanica | ceramica-grafite |
| Mechanical seal | ceramic-graphite |
| Sello mecanico | ceramica-grafito |
| Garniture mecanique | ceramique-graphite |
| Albero motore | acciaio AISI 303 |
| acciaio AISI 416 (SD 80-100) | |
| Motor shaft | stainless steel AISI 303 |
| stainless steel AISI 416 (SD 80-100) | |
| Eje motor | acero AISI 303 |
| acero AISI 416 (SD 80-100) | |
| Arbre moteur | acier AISI 303 |
| acier AISI 416 (SD 80-100) | |
| Temperatura del liquido | |
| Liquid temperature | 0 – 90 °C |
| Temperatura del liquido | |
| Temperature du liquide | |
| Pressione di esercizio | |
| Operating pressure | max 6 bar |
| Presion de trabajo | |
| Pression de fonctionnement | |
| MOTORE / MOTOR / MOTOR / MOTEUR | |
| Motore 2 poli a induzione | 3- 230/400V-50Hz |
| 1-230V-50Hz | |
| 2 pole induction motor | con termoprotettore |
| Motor de 2 polos a induccion | with thermal protection |
| con proteccion termica | |
| Moteur a induction a 2 poles | avec protection thermique |
| Classe di isolamento | |
| Insulation class | F |
| Clase de aislamiento | |
| Classe d’isolation | |
| Grado di protezione | |
| Protection degree | IP44 |
| Grado de protección | |
| Protection | |

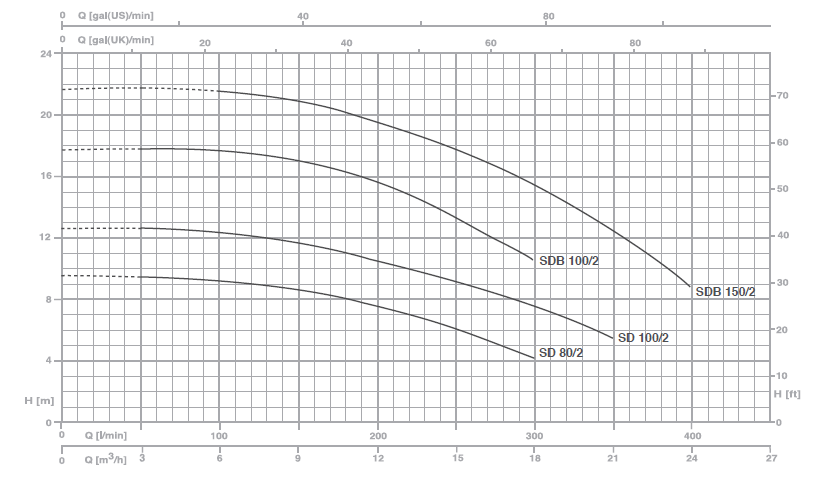

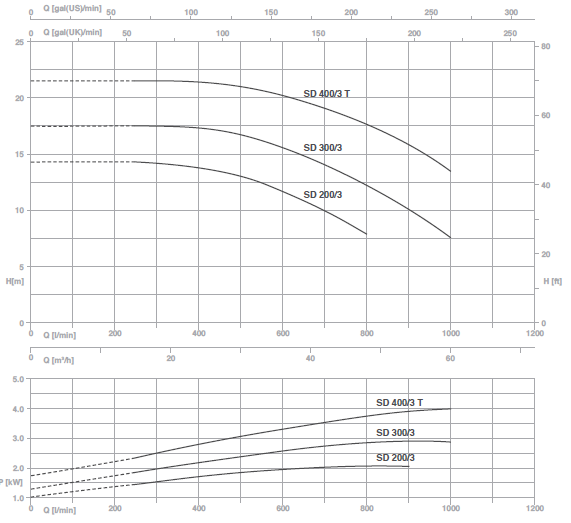

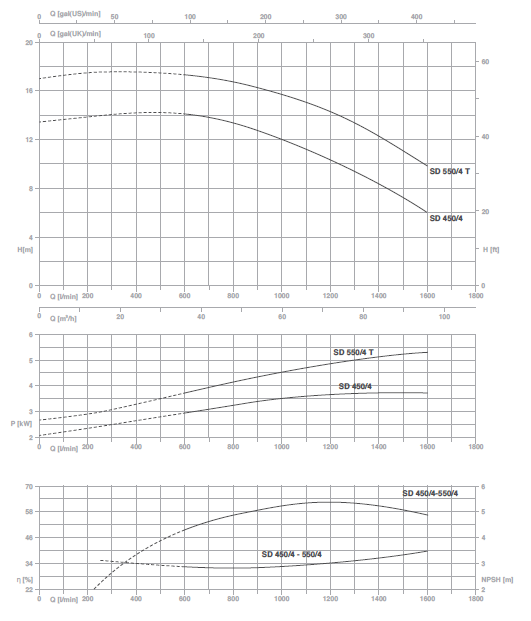

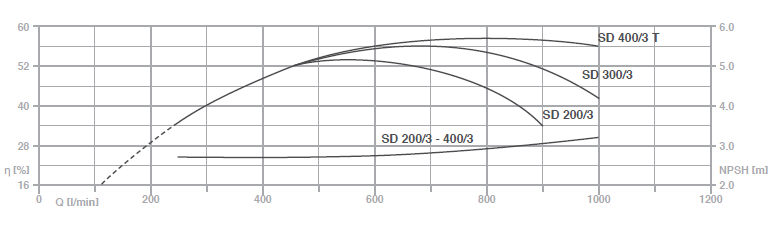

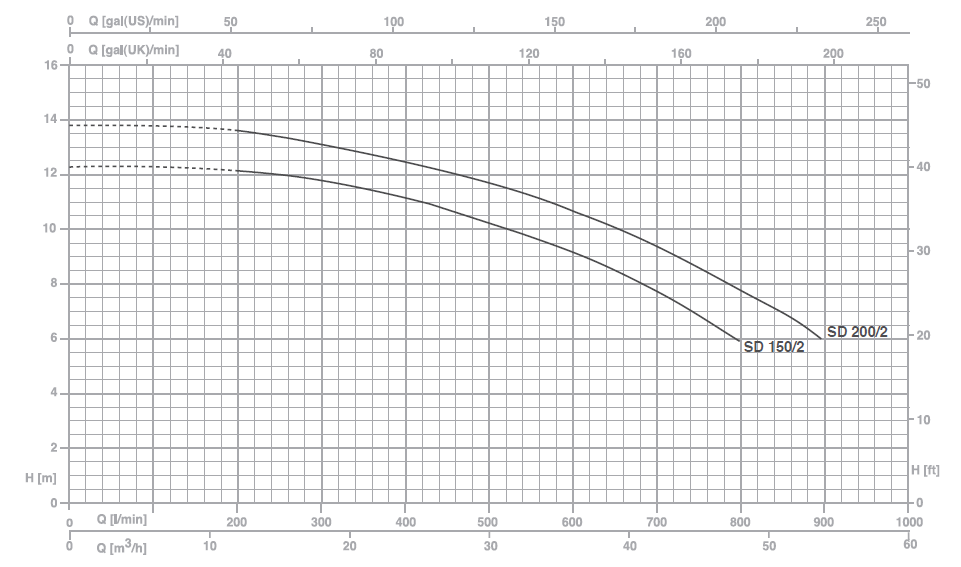

Performance curve
| TYPE | P2 | P1 (kW) | AMPERE | Q (m3/h-l/min) | ||||||||||||
| 1~ | 3~ | 1~ | 3~ | 0 | 3 | 6 | 9 | 12 | 15 | 18 | 21 | 24 | ||||
| 0 | 50 | 100 | 150 | 200 | 250 | 300 | 350 | 400 | ||||||||
| (HP) | (kW) | 1~ | 3~ | 1×230 V (50 Hz) | 3×400 V (50 Hz) | H (m) | ||||||||||
| SD 80/2 | SD 80/2 T | 0.8 | 0.59 | 0.63 | 0.7 | 2.9 | 1.3 | 9.5 | 9.4 | 9.2 | 8.5 | 7.3 | 6 | 4.2 | ||
| SD 100/2 | SD 100/2 T | 1 | 0.74 | 0.92 | 1.05 | 4.3 | 2.3 | 12.6 | 12.5 | 12.3 | 11.5 | 10.3 | 9.3 | 7.5 | 5.5 | |
| SDB 100/2 | SDB 100/2 T | 1 | 0.74 | 1.23 | 6 | 17.5 | 17.5 | 17.5 | 16.7 | 15.2 | 13.2 | 10.5 | ||||
| SDB 150/2 | SDB 150/2 T | 1.5 | 1.1 | 1.78 | 1.65 | 8.5 | 3 | 21.5 | 21.5 | 21.5 | 20.6 | 19.2 | 17.5 | 15.3 | 12.3 | 8.8 |
| TYPE | P2 | P1 (kW) | AMPERE | Q (m3/h-l/min) | |||||||||||||
| 1~ | 3~ | 1~ | 3~ | 0 | 6 | 12 | 18 | 24 | 30 | 36 | 42 | 48 | 54 | ||||
| 0 | 100 | 200 | 300 | 400 | 500 | 600 | 700 | 800 | 900 | ||||||||
| (HP) | (kW) | 1~ | 3~ | 1×230 V (50 Hz) | 3×400 V (50 Hz) | H (m) | |||||||||||
| SD 150/2 | SD 150/2 T | 1.5 | 1.1 | 1.85 | 1.8 | 8.8 | 3.3 | 12.3 | 12.3 | 12.2 | 11.8 | 11 | 10.2 | 9.1 | 7.7 | 6 | |
| SD 200/2 | SD 200/2 T | 2 | 1.5 | 2.1 | 2.1 | 10 | 3.9 | 13.8 | 13.8 | 13.6 | 13.1 | 12.4 | 11.6 | 10.6 | 9.4 | 7.8 | 6 |
| TYPE | P2 | P1 (kW) | AMPERE | Q (m3/h-l/min) | |||||||||
| 1~ | 3~ | 1~ | 3~ | 0 | 15 | 24 | 36 | 48 | 60 | ||||
| 0 | 100 | 200 | 300 | 400 | 500 | ||||||||
| (HP) | (kW) | 1~ | 3~ | 1×230 V (50 Hz) | 3×400 V (50 Hz) | H (m) | |||||||
| SD 200/3 | SD 200/3 T | 2 | 1.5 | 2.35 | 2.15 | 11 | 3.6 | 14.2 | 14.2 | 13.8 | 11.7 | 7.8 | |
| SD 300/3 | SD 300/3 T | 3 | 2.2 | 3.3 | 2.9 | 15 | 4.9 | 17.5 | 17.5 | 17.2 | 15.3 | 12.3 | 7.5 |
| SD 400/3 T | 4 | 3 | 4 | 6.7 | 21.5 | 21.5 | 21.4 | 19.9 | 17.7 | 13.5 | |||
| TYPE | P2 | P1 (kW) | AMPERE | Q (m3/h-l/min) | ||||||||||
| 1~ | 3~ | 1~ | 3~ | 0 | 36 | 48 | 60 | 72 | 84 | 96 | ||||
| 0 | 600 | 800 | 1000 | 1200 | 1400 | 1600 | ||||||||
| (HP) | (kW) | 1~ | 3~ | 1×230 V (50 Hz) | 3×400 V (50 Hz) | H (m) | ||||||||
| SD 450/4 | SD 450/4 T | 4 | 3 | 3.7 | 3.6 | 18 | 6.2 | 13.5 | 14.1 | 13.4 | 12.1 | 10.3 | 8.3 | 6.1 |
| SD 500/4 T | 5.5 | 4 | 5.05 | 8.8 | 17 | 17.3 | 16.8 | 15.7 | 14.4 | 12.2 | 10 | |||

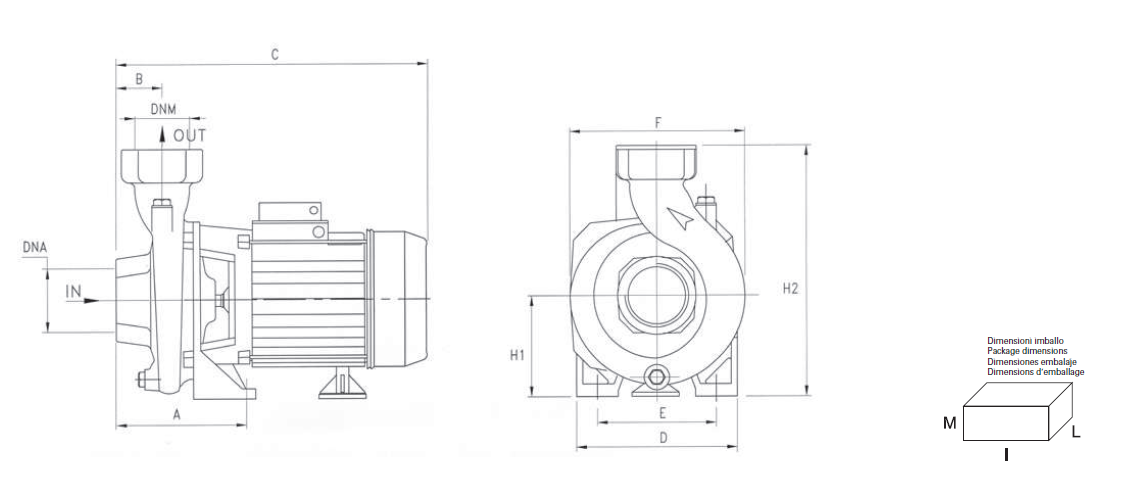

Dimensions
| TYPE | DIMENSIONS(mm) | CUBE | Kg | |||||||||||
| A | B | C | D | E | F | H1 | H2 | DNA | DNM | I | L | M | ||
| SD 80/2 | 127 | 45 | 315 | 155 | 115 | 178 | 97 | 247 | 2” G | 2” G | 340 | 195 | 280 | 14.2 |
| SD 100/2 | 127 | 45 | 315 | 155 | 115 | 178 | 97 | 247 | 2” G | 2” G | 340 | 195 | 280 | 15.5 |
| SD 150/2 | 150 | 53 | 370 | 180 | 140 | 218 | 115 | 285 | 2” G | 2” G | 390 | 230 | 325 | 23.3 |
| SD 200/2 | 150 | 53 | 370 | 180 | 130 | 218 | 115 | 285 | 2” G | 2” G | 390 | 230 | 325 | 24.3 |
| SDB 100/2 | 130 | 70 | 365 | 180 | 130 | 195 | 90 | 240 | 2” G | 2” G | 390 | 230 | 325 | 18.2 |
| SDB 150/2 | 130 | 70 | 365 | 200 | 140 | 195 | 90 | 240 | 2” G | 2” G | 390 | 230 | 325 | 19.1 |
| SD 200/3 | 176.5 | 80 | 455 | 200 | 140 | 225 | 112 | 292 | 3” G | 3” G | 480 | 245 | 330 | 28.3 |
| SD 300/3 | 176.5 | 80 | 455 | 200 | 140 | 225 | 112 | 292 | 3” G | 3” G | 480 | 245 | 330 | 31.5 |
| SD 400/3 T | 176.5 | 80 | 455 | 200 | 140 | 225 | 112 | 292 | 3” G | 3” G | 480 | 245 | 330 | 31.6 |
| SD 450/4 T | 165 | 85 | 480 | 220 | 160 | 250 | 130 | 330 | 4” G | 4” G | 510 | 275 | 365 | 41.1 |
| SD 550/4 T | 165 | 85 | 480 | 220 | 160 | 250 | 130 | 330 | 4” G | 4” G | 510 | 275 | 365 | 41.1 |
