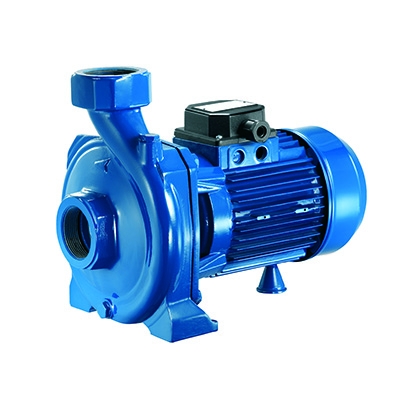

Centrifugal Pump FORUS SE Series
Foras SE centrifugal pump is a single impeller centrifugal pump with 2-inch inlet and 2-inch inlet line. Motor size 1-3 horsepower, able to deliver water up to 40-15 meters, flow rate of 10-620 liters / minute Power system 1 phase 220V and 3 phase 380V
Facebook
Twitter
Email
Print
Centrifugal Pump FORUS SE Series
The machine
The nautilus body is made of high quality cast iron, rust-proof Helps to prolong pump life
The impeller is made of brass, not rust. No problems with operation under all conditions
- Stainless steel shaft SUS 304, not rust, high corrosion resistance Therefore helps to prolong the service life No problems with maintenance
- Maximum liquid temperature resistant to 40 degrees, can be used in a variety of applications.
- Suction up to a maximum depth of 8 meters.
The motor
- Motor made from high quality 100% copper wire for full power Do not make the cycle fall The motor housing is made of lightweight aluminum. Good heat dissipation Resulting in longer service life IP55, can prevent small dust And prevents raindrops or large drops of water can help extend The service life even longer It also Helps to save money.
- Resistant to environmental temperatures up to 40 degrees, can be used for a long time and is durable.
Applications
- Suitable for use in buildings
- Suitable for agricultural water systems
- Suitable for springy systems
- Suitable for general multi-purpose water distribution
Specifications
| CARATTERISTICHE COSTRUTTIVE / CONSTRUCTION FEATURES CARACTERISTICAS CONSTRUCTIVAS / CARACTERISTIQUES D’EXECUTION |
|
| Corpo pompa | ghisa |
| Pump body | cast iron |
| Cuerpo bomba | fundicion |
| Corps de pompe | fonte |
| Supporto motore | ghisa |
| Motor bracket | cast iron |
| Soporte motor | fundicion |
| Support moteur | fonte |
| Girante | ottone |
| Impeller | brass |
| Rodete | laton |
| Turbine | laiton |
| Tenuta meccanica | ceramica-grafite |
| Mechanical seal | ceramic-graphite |
| Sello mecanico | ceramica-grafito |
| Garniture mecanique | ceramique-graphite |
| Albero motore | acciaio AISI 303 |
| Motor shaft | stainless steel AISI 303 |
| Eje motor | acero AISI 303 |
| Arbre moteur | acier AISI 303 |
| Temperatura del liquido | |
| Liquid temperature | 0 – 90 °C |
| Temperatura del liquido | |
| Temperature du liquide | |
| Pressione di esercizio | |
| Operating pressure | max 6 bar |
| Presion de trabajo | |
| Pression de fonctionnement | |
| MOTORE / MOTOR / MOTOR / MOTEUR | |
| Motore 2 poli a induzione | 3- 230/400V-50Hz |
| P1-230V-50Hz | |
| 2 pole induction motor | con termoprotettore |
| Motor de 2 polos a induccion | with thermal protection |
| con proteccion termica | |
| Moteur a induction a 2 poles | avec protection thermique |
| Classe di isolamento | |
| Insulation class | F |
| Clase de aislamiento | |
| Classe d’isolation | |
| Grado di protezione | |
| Protection degree | IP44 |
| Grado de protección | |
| Protection | |

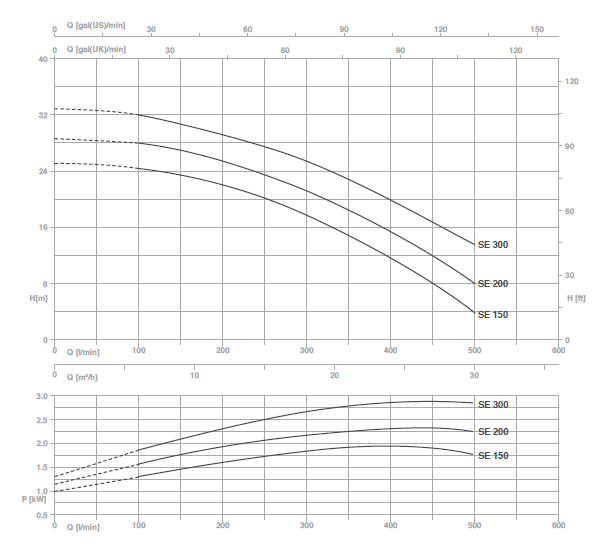

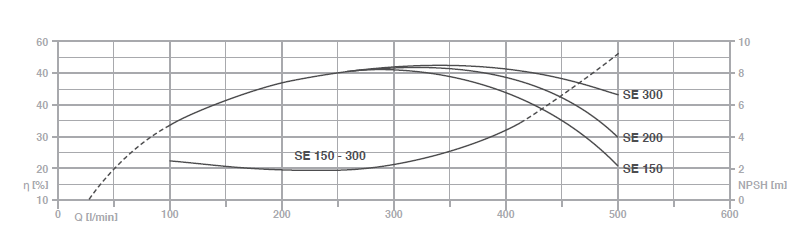

Performance Curve
|
TYPE
|
P2 | P1 (kW) | AMPERE | Q (m3/h-l/min) | |||||||||||||
| 1~ | 3~ | 1~ | 3~ | 0 | 6 | 9 | 12 | 15 | 18 | 21 | 24 | 27 | 30 | ||||
| 0 | 100 | 150 | 200 | 250 | 300 | 350 | 400 | 450 | 500 | ||||||||
| (HP) | (kW) | 1~ | 3~ | 1×230 V (50 Hz) | 3×400 V (50 Hz) | H (m) | |||||||||||
| SE 150 | SE 150 T | 1.5 | 1.1 | 1.9 | 1.9 | 9.2 | 3.4 | 25 | 24.2 | 23.4 | 22 | 20.1 | 17.8 | 15 | 11.8 | 8.2 | 4 |
| SE 200 | SE 200 T | 2 | 1.5 | 2.49 | 2.36 | 11.5 | 4.2 | 28.8 | 28 | 27.1 | 25.4 | 23.4 | 21.2 | 18.5 | 15.5 | 12 | 8 |
| SE 300 | SE 300 T | 3 | 2.2 | 3.1 | 2.9 | 13.6 | 5.3 | 32.8 | 32 | 30.9 | 29.5 | 27.6 | 25.5 | 22.9 | 20 | 16.7 | 13.5 |

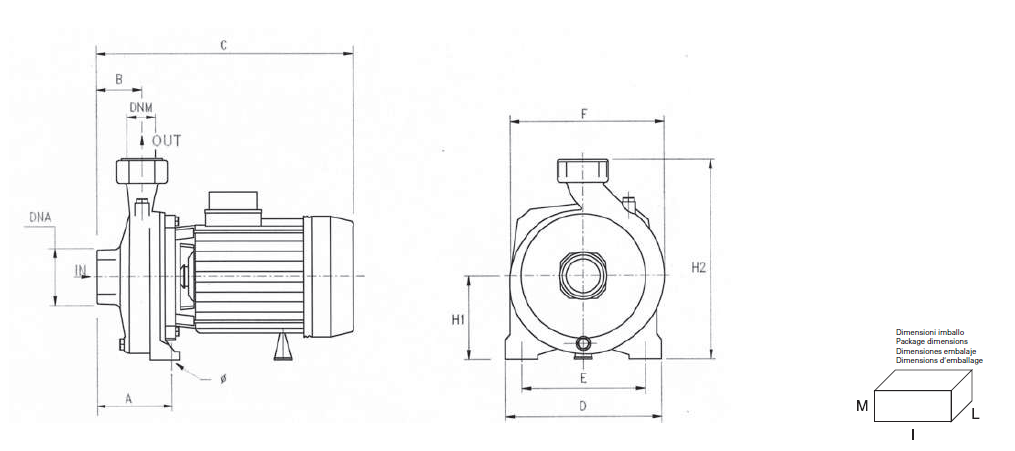

Dimensions
|
TYPE
|
DIMENSIONS(mm) | CUBE | Kg | ||||||||||||
| A | B | C | D | E | F | Ø | H1 | H2 | DNA | DNM | I | L | M | ||
| SE 150 | 105 | 48 | 370 | 200 | 160 | 215 | 9.5 | 110 | 280 | 2″G | 2″G | 390 | 230 | 300 | 22 |
| SE 200 | 105 | 48 | 370 | 200 | 160 | 215 | 9.5 | 110 | 280 | 2″G | 2″G | 390 | 230 | 300 | 24 |
| SE 300 | 105 | 48 | 410 | 200 | 160 | 215 | 9.5 | 110 | 280 | 2″G | 2″G | 430 | 230 | 300 | 32 |
| SE 300 T | 105 | 48 | 370 | 200 | 160 | 215 | 9.5 | 110 | 280 | 2″G | 2″G | 390 | 230 | 300 | 26 |
