ปั๊มน้ำหอยโข่ง MITSUBISHI ACL Series

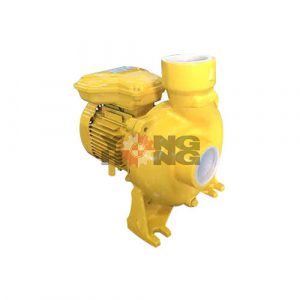

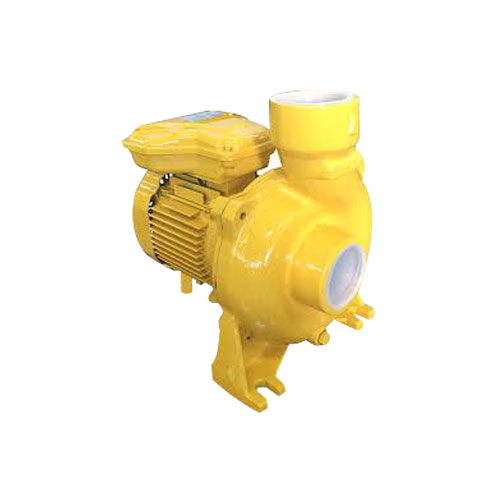

Centrifugal Pump MITSUBISHI ACL Series

Mitsubishi ACL centrifugal pump, stainless steel impeller (SUS304) with laser welding for maximum strength. Cast iron pump body with stainless shaft Suitable for rain irrigation Pumping water from lakes, rivers, wells and for use in various industries that require high transmission rates.

Category Tags , , , , , , , , , ,
ขอใบเสนอราคา/Request a quote
Facebook
Twitter
Email
Print

Centrifugal Pump MITSUBISHI ACL Series

Centrifugal pumps for agriculture And jobs that require a lot of water There are both normal And flange type

  • Using Mitsubishi electric motor which has high working efficiency
  • The pump is made of cast iron.
  • Closed impeller, which is a powerful impeller to pump water Made from stainless steel By choosing the method of forming and welding Makes the skin smooth, strong, helping to prevent rust and friction as well
  • The shaft is made of stainless steel.
  • Waterproof seal using ceramics and graphite charcoal Which is waterproof and Has a long service life
  • IP55 type motor that can be used outdoors
  • Class F electrical insulation
  • Motor equipped with overheating coil protection devices in models of 1/2 horsepower to 1.5 horsepower



SPECIFICATIONS DATA MITSUBISHI ACL Series

MODEL HP Flow rate m3/h 0 12 24 36 42 48
l/min 0 200 400 600 700 800
ACL-755S 1 Total Head  (m) 12.6 11.8 10.2 6.8 4.4
ACL-1105S 1.5 14 13.4 11.9 9.1 6.8 4.3

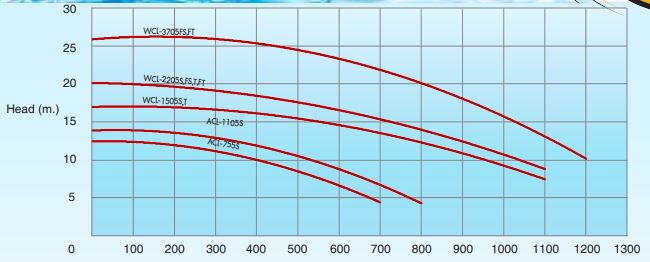

PERFORMANCE DATA MITSUBISHI ACL Series

performance mitsubishi ACL WCL

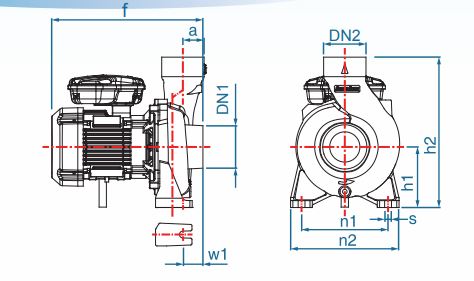

DIMENSIONS DATA MITSUBISHI ACL Series

dimensions mitsubishi ACL
