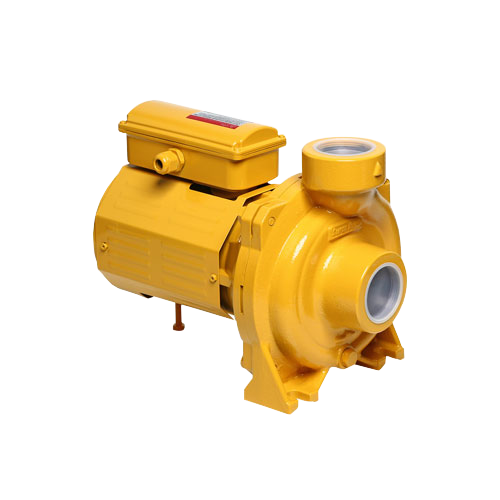

Centrifugal Pump MITSUBISHI ACM Series
Mitsubishi centrifugal water pump, ACM, high pressure, impeller stainless steel for delivering medium volume water. Suitable for pumping in construction, agriculture, industry or general work such as watering, sprinkling, irrigation, watering Automatic water delivery system High pressure systems for condos, hotels, apartments and general industrial applications
Facebook
Twitter
Email
Print
Centrifugal Pump MITSUBISHI ACM Series
Mitsubishi centrifugal pumps, ACM, multi-stage, high-pressure
- provides high pressure, low noise, durable, rust-proof, suitable for drinking water, water systems, utilities in homes Residences, buildings and industrial factories
- Pump housing and suction side lid Made from special polymers Corrosion resistance Inlaid with stainless steel threads
- Chassis and rotors Manufactured from special polymers through the NSF61 standard.
- Pump cover and shaft Made from stainless steel
- Motor frame made of aluminum with excellent cooling system Complete with anti-corrosion spraying
SPECIFICATIONS DATA MITSUBISHI ACM Series
| Model | Discharge | HP | Voltage |
|---|---|---|---|
| ACM-375SH | 1 1/2″ x 1 1/2″ | 1/2 | 220 |
| ACM-755SH | 1 1/2″ x 1 1/2″ | 1 | 220 |
| ACM-755TH | 1 1/2″ x 1 1/2″ | 1 | 380 |
| ACM-755S | 2″ x 2″ | 1 | 220 |
| ACM-755T | 2″ x 2″ | 1 | 380 |
| ACM-1105S | 2″ x 2″ | 1.5 | 220 |
| ACM-1105T | 2″ x 2″ | 1.5 | 380 |

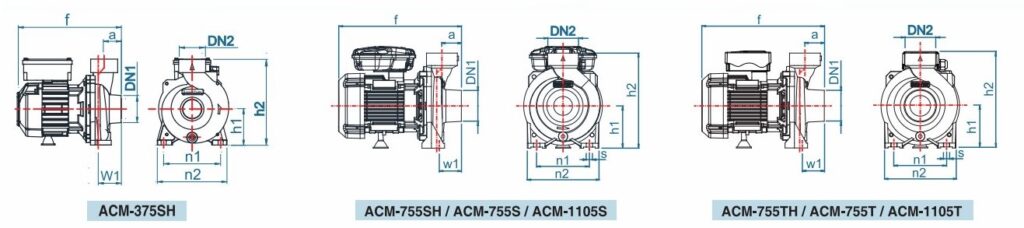

DIMENSIONS DATA MITSUBISHI ACM Series
| MODEL | BORESIZE (Inch) | DIMENSIONS(mm.) | WEIGHT (kg.) | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1Φ | 3Φ | DN1 | DN2 | a | f | h1 | h2 | n1 | n2 | w1 | w2 | S | 1Φ | 3Φ |
| ACM-375SH | – | 1.1/2″ | 1 1/2″ | 39 | 253.5 | 85 | 203 | 135 | 165 | 39 | – | 12 | 8.8 | – |
| ACM-755SH | ACM-755TH | 1 1/2″ | 1 1/2″ | 45 | 319.7 | 112 | 252 | 140 | 190 | 52 | – | 15 | 16.0 | 16.0 |
| ACM-755S | ACM-755T | 2″ | 2″ | 51.5 | 326.2 | 112 | 252 | 140 | 190 | 58.5 | – | 15 | 16.0 | 16.0 |
| ACM-1105S | ACM-1105T | 2″ | 2″ | 51.5 | 326.2 | 112 | 252 | 140 | 190 | 58,5 | – | 15 | 17.1 | 16.0 |
