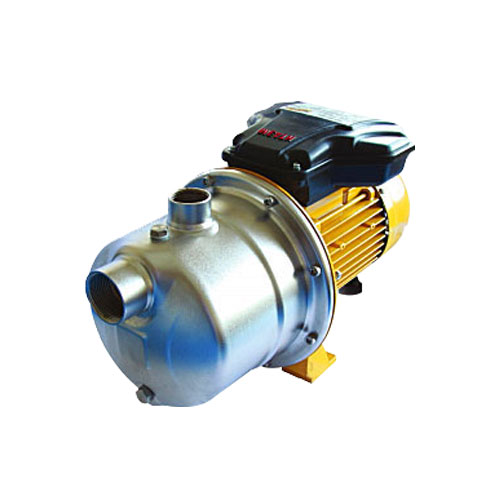

Centrifugal pump Mitsubishi SSH Series made of SUS304 stainless steel Rust-free strong, durable and has a smooth surface. Reduce friction In rotation makes it highly efficient in pumping water. Leakproof with mechanical seals, ceramic and graphite motors, a closed squirrel cage induction type Cooled by fan IP54 protection standard, can be used outdoors, Class F insulation can be used continuously And the motor shaft is one piece with the pump shaftSuitable for use with clean water for homes, homes, general water supplying to water filtration systems, water supply systems in the food industry Including other fluids that are not corrosive to metals.
Centrifugal Pump MITSUBISHI SSH Series Feature :
| MODEL | Bore SIZE (inch) | DIMENSIONS (mm) | WEIGHT (kg.) | |||||||||
| DN1 | DN2 | a | f | h1 | h2 | n1 | n2 | w1 | w2 | s | ||
| SSH-375S | 1″ | 1″ | 90 | 354 | 88 | 178 | 100 | 172 | 198 | 9 | 8.5 | |
| SSH-755S | 1 1/4 “ | 1″ | 100 | 405 | 106 | 210 | 120 | 207 | 225 | 9 | 12.6 | |

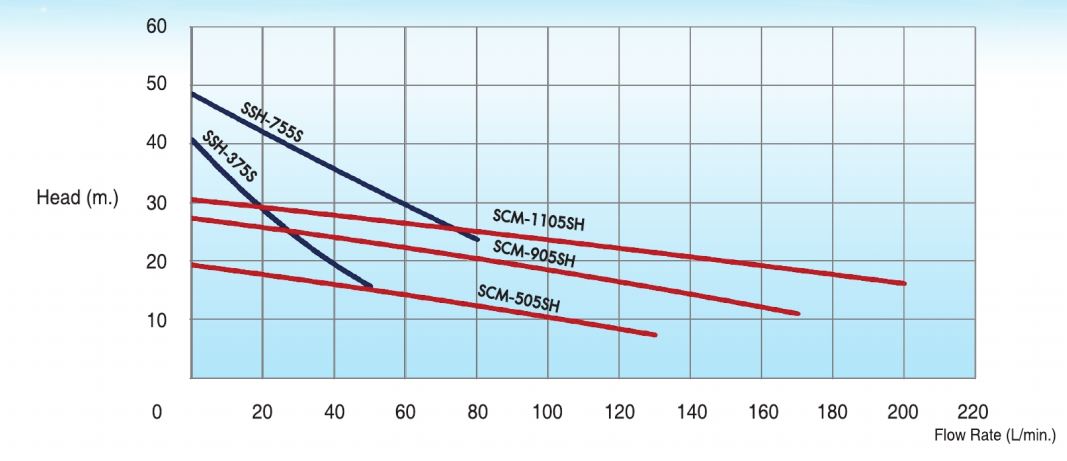

| MODEL | HP | Rate Current | Flow Rate | m3/H | 0 | 0.6 | 1.2 | 1.8 | 2.4 | 3 | 3.6 | 4.2 | 4.8 | |
| 1Ø,220 V | 3Ø,380 V | l/min | 0 | 10 | 20 | 30 | 40 | 50 | 60 | 70 | 80 | |||
| SSH-375S | 0.5 | 3.4 | – | Total Head (m) | 43.3 | 35.4 | 28.4 | 22.5 | 19.3 | 15.8 | ||||
| SSH-755S | 1 | 6.3 | – | 49 | 45 | 41.6 | 38.4 | 35.6 | 32.6 | 30.1 | 27.3 | 22.8 | ||
