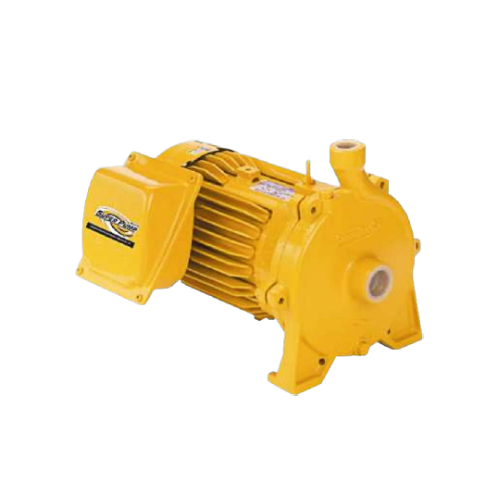

Mitsubishi centrifugal water pump, WCH, single impeller pump for delivering high water. Suitable for general water supply, home, hotel, resort Make fountains, decorate gardens, wash various works, suitable for use with pressure tanks And pressure switches to automate the water system
| Model | HP | Current (A) | |||
| 10ø, 220V 50Hz | 3ø, 220V/380V 50Hz | 10ø, 220V | 3ø, 220V | 3ø, 380V | |
| WCH-375S | – | 2/1 | 3.3 | – | – |
| WCH-755S | – | 1 | 7.2 | – | – |
| WCH-1105S | – | 1 1/2 | 8.2 | – | – |
| WCH-1505S | WCH-1505T | 2 | 13.5 | 8.5 | 4.9 |
| WCH-2205S | WCH-2205T | 3 | 16.8 | 9.9 | 5.7 |

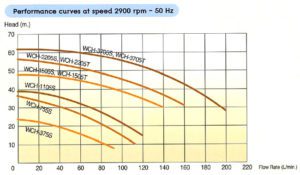

| Model | FLOWRATE | m3/H.r. l/min |
0 | 1.2 | 2.4 | 3.6 | 4.8 | 6 | 6.6 | 8.4 | 9 | 10.8 | 12 | 12.6 | 12.6 | |
| 10ø, 220V 50Hz | 3ø, 220V/380V 50Hz | 0 | 20 | 40 | 60 | 80 | 90 | 100 | 120 | 140 | 160 | 180 | 200 | 200 | ||
| WCH-375S | – | TOTAL HEAD (m.) | 22.4 | 20.9 | 18.9 | 15.6 | 10.4 | 8.2 | – | – | – | – | – | – | – | |
| WCH-755S | – | 37.3 | 33.7 | 31.9 | 29.9 | 26.5 | 23.5 | 20.4 | 10.5 | – | – | – | – | – | ||
| WCH-1105S | – | 39.1 | 36.6 | 35 | 32.8 | 30.4 | 27.8 | 25.1 | 15 | – | – | – | – | – | ||
| WCH-1505S | WCH-1505T | 48.3 | 47.8 | 46.6 | 44.8 | 42.2 | 40.5 | 38.8 | 37 | 30 | – | – | – | – | ||
| WCH-2205S | WCH-2205T | 56.4 | 55.5 | 54.1 | 52 | 49 | 47.2 | 45.3 | 43.2 | 35.8 | 33 | – | – | – | ||

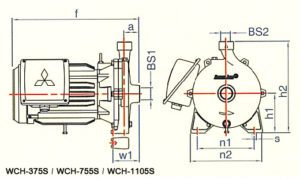

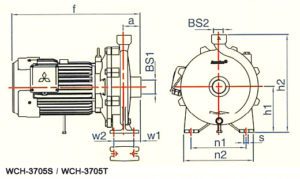

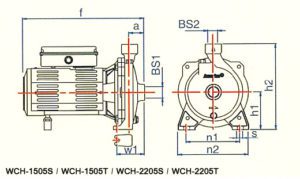

| Model | BORE (Inch) | DIMENSIONS (mm.) | WEIGHT (kg) | |||||||||||
| ไฟ 2 สาย (10ø) | ไฟ 3 สาย (3ø) | BS1 | BS2 | a | f | h1 | h2 | n1 | n2 | w1 | w2 | s | 1ø | 3ø |
| WCH-375S | – | 1″ | 1″ | 42 | 266 | 85 | 214 | 135 | 165 | 83 | – | 10 | 9.5 | – |
| WCH-755S | – | 1″ | 1″ | 44 | 327.3 | 112 | 262 | 160 | 210 | 94 | – | 15 | 17 | – |
| WCH-1105S | – | 1″ | 1″ | 44 | 363.3 | 112 | 262 | 160 | 210 | 94 | – | 15 | 21.2 | – |
| WCH-1505S | WCH-1505T | 1 1/4″ | 1″ | 51.5 | 424.8 | 132 | 307 | 190 | 240 | 89 | – | 15 | 39.5 | 38.1 |
| WCH-2205S | WCH-2205T | 1 1/4″ | 1″ | 51.5 | 424.8 | 132 | 307 | 190 | 240 | 89 | – | 15 | 39.5 | 39 |
