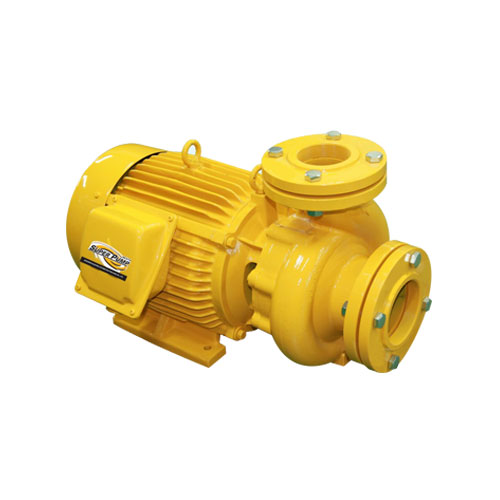

Centrifugal Pump MITSUBISHI WCXL Series
Mitsubishi centrifugal water pump, WCXL, single impeller pump for delivering large volumes of water with flange The pump body and pump cover are made of cast iron. The shaft is made of stainless steel. Flange manufactured from cast iron Suitable for pumping water in construction, agriculture, industry or general work such as irrigation waterworks that require high durability
Facebook
Twitter
Email
Print
Centrifugal Pump MITSUBISHI WCXL Series
- large water pump Suitable for agricultural work Industrial sector And public utilities
- Suitable for applications that require a lot of water. With both standard type and flange
- Using Mitsubishi electric motor which has high working efficiency
- The pump is made of cast iron. And the pump shaft is made of SUS304 stainless steel
- brass propeller Closed type, high pumping efficiency
- Leak proof with mechanical seal, ceramic and graphite Which is waterproof and has a long service life
- Closed squirrel cage induction motor Cooling with fans. IP55 protection standard. Used to report Class F electrical insulation for continuous use. And the motor shaft is one piece with the machine shaft
SPECIFICATIONS DATA MITSUBISHI WCXL Series
| MODEL | Power | ขนาดท่อ | m3/h | 0 | 42 | 48 | 60 | 66 | 72 | 90 | 96 | |
| kW | HP | l/min | 0 | 700 | 800 | 1000 | 1100 | 1200 | 1500 | 1600 | ||
| WCXL-11005FT | 11 | 15 | 4″x3″ | ส่งสูง (m) | 29.3 | 28.5 | 28.6 | 28.1 | 27.3 | 26.5 | 25.8 | 25.1 |
| WCXL-15005FT | 15 | 20 | 36.3 | 35.2 | 34.7 | 34.2 | 33.7 | 33.1 | 32.5 | |||
| MODEL | Power | ขนาดท่อ | m3/h | 0 | 108 | 120 | 132 | 144 | 156 | 168 | 180 | |
| kW | HP | l/min | 0 | 1800 | 2000 | 2200 | 2400 | 2600 | 2800 | 3000 | ||
| WCXL-11005FT | 11 | 15 | 4″x3″ | ส่งสูง (m) | 29.3 | 23.8 | 22.3 | 20.5 | 19.1 | 16.3 | ||
| WCXL-15005FT | 15 | 20 | 36.3 | 31 | 29.5 | 27.8 | 26.1 | 24.1 | 24.6 | 19.6 | ||
