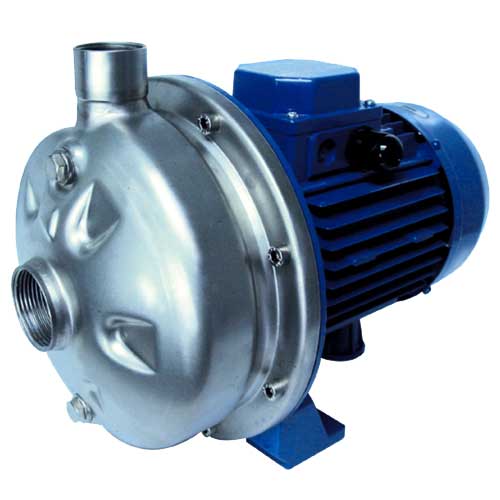

Centrifugal Pump STAC CX Series
STAC centrifugal pump, Model CX, made of stainless steel, suitable for booster water, water supply, treatment and irrigation, air conditioning systems, general water pumping,Liquid that is not very corrosive
Facebook
Twitter
Email
Print
Centrifugal Pump STAC CX Series
Specifications
- Maximum working pressure : 8 bar
- Maximum liquid temperature : 60°C for CX-50, CX-80, CX-100 / 90°C for other models
Materials
- Pump body, impeller, diffuser and casing cover in AISI 304
- Shaft in AISI 303
- Bracket and motor casing in aluminium
- Mechanical seal in carbon/ceramic/NBR (Standard)
Technical Data
- T.E.F.C. 2 poles motor
- Insulation class F
- Protection degree IP55
- 1~230V+10% 50Hz, 3~230/400V+10% 50Hz
- Permanent split capacitor and automatic thermal overload protection for single-phase version
- Thermal protection to be provided by the user for three-phase version

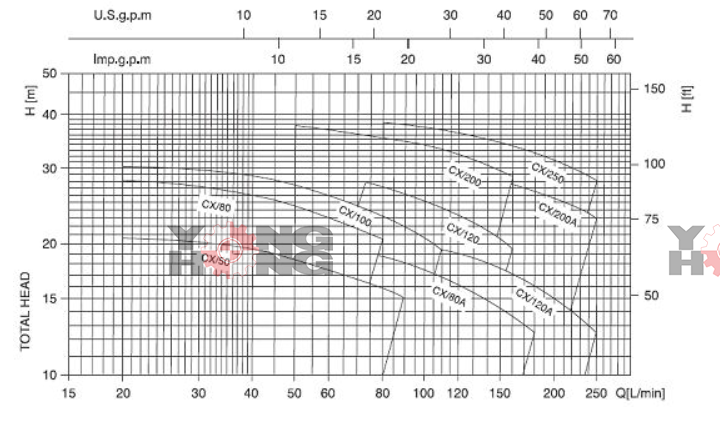

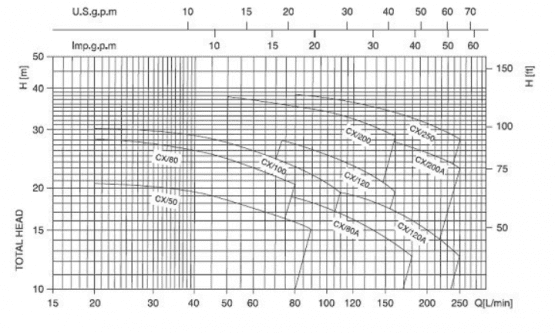

Performance data STAC CX Series

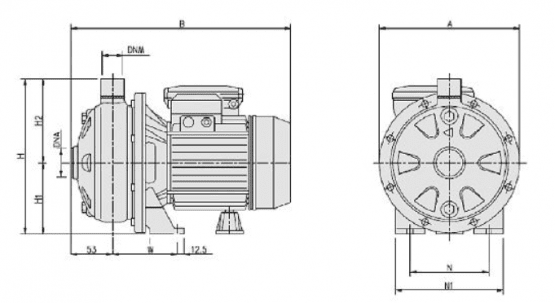

Dimensions data STAC CX Series
Specifications data STAC CX Series
| Model | Power | ขนาดท่อ | m3/h | 1.2 | 3 | 4.8 | 5.4 | 6.6 | 7.8 | 9.6 | 10.8 | 12.6 | 15 | ||
| 220V | 380V | HP | KW | inch | l/min | 20 | 50 | 80 | 90 | 110 | 130 | 160 | 180 | 210 | 250 |
| CX-50M | CX-50T | 0.5 | 0.37 | 1.1/4×1 | Total Head (m) | 21 | 18 | 16 | |||||||
| CF-80M CX-75M | CF-80T CX-75M | 0.8 | 0.55 | 1.1/4×1 | 28 | 25 | 21 | ||||||||
| CX-100M | CX-100T | 1 | 0.75 | 1.1/4×1 | 30 | 27 | 24 | 22 | 20 | ||||||
| CX-120M | CX-120T | 1.2 | 0.9 | 1.1/4×1 | 30 | 27 | 26 | 24 | 22 | 20 | |||||
| CX-200M | CX-200T | 2 | 1.5 | 1.1/4×1 | 38 | 35 | 34 | 33 | 31 | 28 | |||||
| CX-200AT | 2 | 1.5 | 1.1/2×1 | 31 | 31 | 30 | 29 | 28 | 27 | 25 | 23 | ||||
| CX-250T | 2.5 | 1.8 | 1.1/2×1 | 38 | 37 | 36 | 35 | 34 | 33 | 31 | 28 | ||||
