191022 Stac KRW3

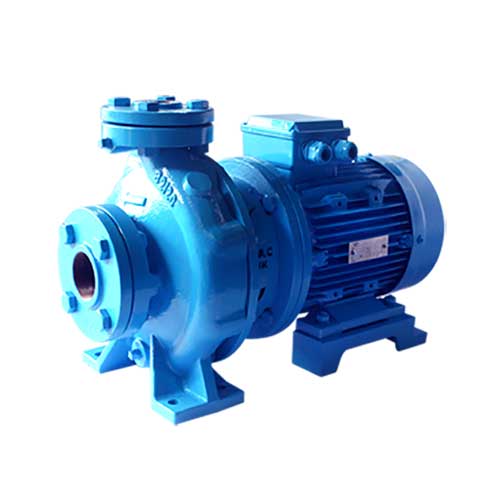

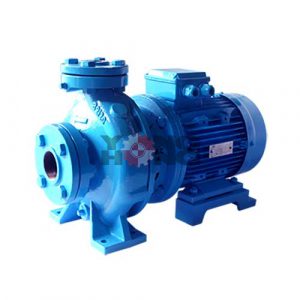

Centrifugal Pump STAC KRW3 Series

STAC KRW3 water pump is a general water pump, such as indoor use, Pressure Boosting system, water treatment system, air conditioning system, agriculture, industrial plants, irrigation systems, fire water pumps.

Category Tags , , , , , , ,
ขอใบเสนอราคา/Request a quote
Facebook
Twitter
Email
Print

Centrifugal Pump STAC KRW3 Series

Suitable for use in work

  • air conditioning system
  • Water delivery system in tall buildings
  • Heating and ventilation systems
  • Agricultural Water supply system
  • Refrigeration syste
  • General industry
  • General Agricultural work
  •  Water circulation system
  • Water systems in the factory
  • Fire fighting pump work
  • Petroleum production system

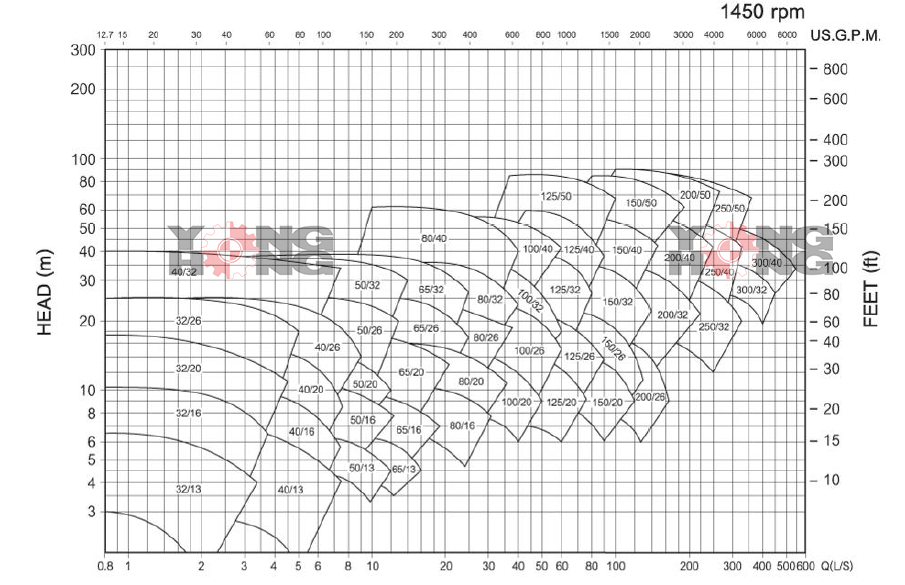

PERFORMANCE DATA STAC KRW3 Series

ตารางการทำงานKRW3 1     ตารางการทำงานKRW3.1 1

Dimensions data STAC KRW3 Series

ทรงมิติKRW3.1 2

Specifications data STAC KRW3 Series

Pump size Shaft Unit DNE DNA a f h1 h2 b m1 m2 n1 n2 n3 h3 Øs1 Øs2 w d l t u WT kg
32/13 25 Ø50 Ø32 80 360 112 140 50 100 70 190 140 100 14 14 14 267 24 50 27 8 27.5
32/16 25 Ø50 Ø32 80 360 132 160 50 100 70 240 190 100 14 14 14 267 24 50 27 8 35
32/20 25 Ø50 Ø32 80 360 160 180 50 100 70 240 190 110 14 14 14 267 24 50 27 8 41
32/26 25 Ø50 Ø32 100 360 180 225 65 125 95 320 250 110 14 14 14 267 24 50 27 8 59
40/13 25 Ø65 Ø40 80 360 112 140 50 100 70 210 160 100 14 14 14 267 24 50 27 8 30
40/16 25 Ø65 Ø41 80 360 132 160 50 100 70 240 190 100 14 14 14 267 24 50 27 8 36
40/20 25 Ø65 Ø42 100 360 160 180 50 100 70 265 212 110 14 14 14 267 24 50 27 8 44
40/26 25 Ø65 Ø43 100 360 180 225 65 125 95 320 250 110 14 14 14 267 24 50 27 8 61
40/32 35 Ø65 Ø44 125 470 200 225 65 125 95 345 280 110 14 14 14 342 32 80 35 10 45.8
40/32H 35 Ø65 Ø45 125 470 200 225 65 125 95 345 280 110 14 14 14 342 32 80 35 10 45.8
50/13 25 Ø65 Ø50 100 360 132 160 50 100 70 240 190 100 14 14 14 267 24 50 27 8 34
50/16 25 Ø65 Ø50 100 360 160 180 50 100 70 265 212 110 14 14 14 267 24 50 27 8 38
50/20 25 Ø65 Ø50 100 360 160 200 50 100 70 265 212 110 14 14 14 267 24 50 27 8 46
50/26 25 Ø65 Ø50 100 360 180 225 65 125 95 320 250 110 14 14 14 267 24 50 27 8 63
50/32 35 Ø65 Ø50 125 470 225 280 65 125 95 345 280 110 16 14 14 342 32 80 35 10 101
50/32H 35 Ø65 Ø50 125 470 225 280 65 125 95 345 280 110 16 14 14 342 32 80 35 10 101
65/13 25 Ø80 Ø65 100 360 160 180 65 125 95 280 212 110 14 14 14 267 24 50 27 8 39
65/16 25 Ø80 Ø65 100 360 160 200 65 125 95 280 212 110 14 14 14 267 24 50 27 8 43
65/20 25 Ø80 Ø65 100 360 180 180 65 125 125 320 250 110 14 14 14 267 24 50 27 8 70
65/26 35 Ø80 Ø65 100 470 200 250 80 160 120 360 280 110 16 17.5 14 342 32 80 35 10 91
65/32 35 Ø80 Ø65 125 472 225 280 80 160 120 400 315 110 16 17.5 14 342 32 80 35 10 110
65/32H 35 Ø80 Ø65 125 472 225 280 80 160 120 400 315 110 16 17.5 14 342 32 80 35 10 110
80/16 25 Ø100 Ø80 125 360 180 225 65 125 95 320 250 110 14 14 14 267 24 50 27 8 54
80/20 35 Ø100 Ø80 125 470 180 250 65 125 95 345 280 110 14 14 14 342 32 80 35 10 70
80/26 35 Ø100 Ø80 125 470 200 280 80 160 120 400 315 110 16 17.5 14 342 32 80 35 10 91
80/32 35 Ø100 Ø80 125 470 250 315 80 160 120 400 315 110 16 17.5 14 342 32 80 35 10 120
80/32H 35 Ø100 Ø80 125 470 250 315 80 160 120 400 315 110 16 17.5 14 342 32 80 35 10 120
80/40 45 Ø100 Ø80 125 530 280 355 85 160 120 400 340 110 16 17.5 14 368 42 110 45 12 161
100/20 35 Ø125 Ø100 125 470 200 280 80 160 120 360 280 110 16 17.5 14 342 32 80 35 10 85
100/26 35 Ø125 Ø100 140 470 225 280 80 160 120 400 315 110 16 17.5 14 342 32 80 35 10 106
100/26H 35 Ø125 Ø100 140 470 225 280 80 160 120 400 315 110 16 17.5 14 342 32 80 35 10 106
100/32 35 Ø125 Ø100 140 470 250 315 80 160 120 400 315 110 16 17.5 14 342 32 80 35 10 134
100/40 45 Ø125 Ø100 140 530 280 355 100 200 150 500 400 110 18 23 14 370 42 110 45 12 174
125/20 35 Ø150 Ø125 140 470 250 315 80 160 120 400 315 110 16 17.5 14 342 32 80 35 10 106
125/26 35 Ø150 Ø125 140 470 250 355 80 160 120 400 315 110 16 17.5 14 342 32 80 35 10 115
125/32 45 Ø150 Ø125 140 530 280 355 100 200 150 500 400 110 18 23 14 370 42 110 45 12 163
125/40 45 Ø150 Ø125 140 530 315 400 100 200 150 500 400 110 18 23 14 370 42 110 45 12 181
125/50 60 Ø150 Ø125 180 680 375 500 100 200 150 550 450 140 24 24 14 500 55 110 59 16 220
150/20 35 Ø200 Ø150 160 495 280 400 100 200 150 550 450 110 20 23 14 367 32 80 35 10 156
150/26 45 Ø200 Ø150 160 530 250 355 100 200 150 450 350 110 18 23 14 370 42 110 45 12 148
150/32 45 Ø200 Ø150 160 530 280 400 100 200 150 550 450 110 18 23 14 370 42 110 45 12 170
150/40 45 Ø200 Ø150 160 530 315 450 100 200 150 550 450 110 18 23 14 370 42 110 45 12 209
150/50 60 Ø200 Ø150 180 670 375 500 100 200 150 550 450 140 24 24 15 500 55 110 59 16 430
200/26 45 Ø250 Ø200 180 546 280 400 100 200 150 550 450 110 25 26 15 389 42 110 45 12 210
200/32 55 Ø250 Ø200 200 670 355 450 100 200 150 550 450 110 20 24 15 500 48 110 52 14 323
200/40 55 Ø250 Ø200 200 670 355 500 100 200 150 550 450 110 20 24 15 500 48 110 52 14 370
200/50 60 Ø250 Ø200 240 783 400 495 160 300 300 720 600 140 30 27 23 534 70 140 75 20 530
250/32 55 Ø300 Ø250 200 783 360 525 160 300 175 720 500 140 30 27 23 534 70 140 75 20 370
250/40 60 Ø300 Ø250 240 783 405 495 160 300 240 720 600 140 30 27 23 534 70 140 75 20 457
250/50 75 Ø300 Ø250 240 783 425 545 160 300 240 720 600 140 30 27 23 534 70 140 75 20 646
300/40 75 Ø350 Ø300 280 783 500 600 150 300 200 800 660 140 40 27 23 550 70 140 74.5 20 720



DNA/DNE 32 40 50 65 80 100 125 150 200 250 300 350
ØD 140 150 165 185 200 220 250 285 340 405 460 520
ØK 100 110 125 145 160 180 210 240 295 355 410 470
d2xnumber 18×4 18×4 18×4 18×4 18×8 18×8 18×8 22×8 22×12 26×12 26×12 26×16
