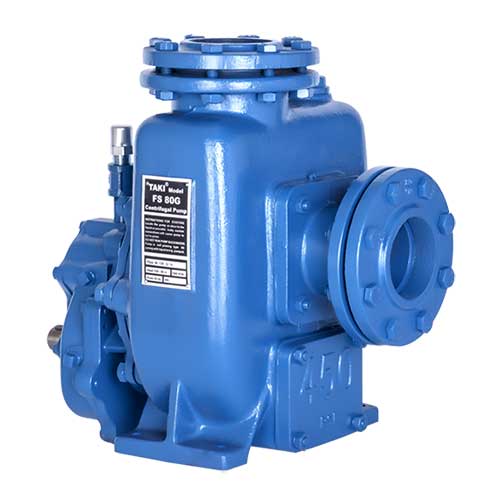

Centrifugal Pump TAKI FS 80 G

Centrifugal Pumpง TAKI FS 80 G

• There is a reverse flow valve in the suction pipe. Helps to absorb water well
• Can pump water at the rate of 2,000 liters per minute
• Pressure up to 167 pounds per square inch at 1000 cycles and pressure at 400 pounds per square inch at 1560 cycles.
• The reduction gear set has a ratio of 1: 4.09 which is successfully assembled into one set. Able to operate by transferring power from the engine through Power transmission system (POWER TAKE OFF
• pumping-distribution pipe sizes With a diameter of 3 inches

Material

• Pump cover: ductile cast iron 60-40-18, FCD 400 (GGG 40)
• Impeller: Cast iron FC 250 (GG 20)
• Casing shaft: SUS 304 stainless steel\
• Shaft: 4140 alloy steel (SCM4)
• Shaft seal: mechanical shaft
• Gear room: Cast iron FC 250 (GG 20)
• Gear: alloy steel 4620 (20Ni2Mo2)
• Flange: Cast iron FC 250 (GG 20)

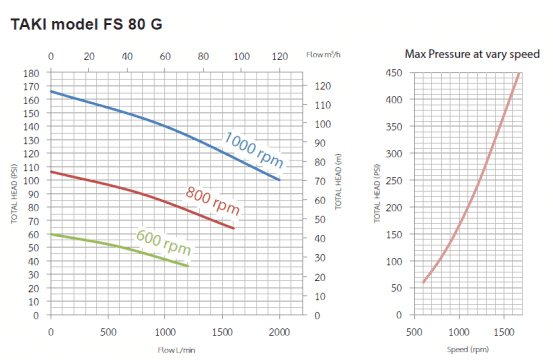

TAKI FS 80 G Performance

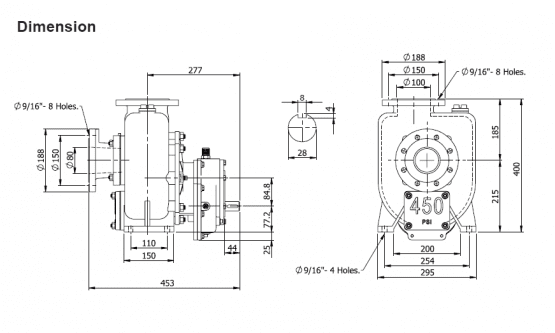

TAKI FS 80 G Dimensions
