Centrifugal Pump VOLUTE PCD Series

Name: Centrifugal Pump VOLUTE PCD Series - บริษัท ย่งฮง (ประเทศไทย) จำกัด
Brand: VOLUTE

Centrifugal pumps PCD Series are pumps that can be used to pump water containing chemicals. Is a single-stage horizontal centrifugal pump, suction a single way. Work according to standards And designed with international standards.

Category Water Pump Tags กลุ่มระบบบำบัดน้ำเสีย, กลุ่มอาคารนิติบุคคล, กลุ่มอาคารนิติบุคคล, กลุ่มเกษตรและการเพาะเลี้ยงสัตว์น้ำ, กลุ่มเกษตรและการเพาะเลี้ยงสัตว์น้ำ, กลุ่มโรงงานอาหาร, กลุ่มโรงงานอาหาร, งานเกษตร, งานเกษตร, งานเพาะเลี้ยงสัตว์น้ำ, งานเพาะเลี้ยงสัตว์น้ำ, ปั๊มน้ำ, ปั๊มน้ำ (ที่ใช้กับน้ำไม่มีตะกอน), ปั๊มน้ำ (ที่ใช้กับน้ำไม่มีตะกอน), ปั๊มน้ำ volute, ปั๊มน้ำหอยโข่ง, ปั๊มน้ำหอยโข่ง volute, ปั๊มน้ำโวลลูท, ปั๊มหอยโข่ง, ระบบน้ำดี, ระบบน้ำดี, โวลลูทปั๊ม

Centrifugal Pump VOLUTE PCD Series

The Volute PCD Series centrifugal pump has a back design that allows the motor to be assembled and installed as a sub-motor. The motor will remain in the correct position. While other parts of the pump can be removed for quick and easy maintenance.

VOLUTE PCD Series Application

Chemistry
Chemical industry
Petroleum
Refinery
Paper work
Water transfer
tissue
beverage
the sugar
Food
Wastewater treatment
chemicals
Saltwater treatment system

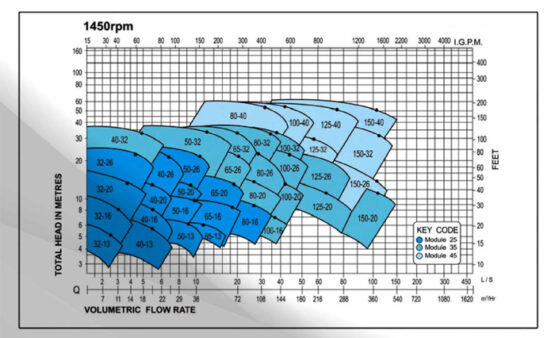

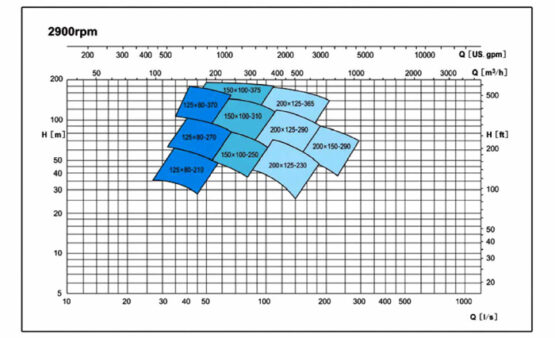

Centrifugal Pump VOLUTE Series Performane Chart 50Hz

Pump VOLUTE PCD Series Dimensions

Model	Seal Housing	D2	D1	a	f	h1	h2	b	c	m1	m2	n1	n2	n3	s	w	a	l	t	u	x	Net w.G.
32-13	25	32	50	80	360	112	140	50	14	100	70	190	140	100	14	267	24	50	27	8	4	30
32-16	25A			80	360	132	160	50	14	100	70	240	190	100		267	24	50	27			35
32-20	25			80	360	160	180	50	14	100	70	240	190	110		267	24	50	27			47
32-26	25A			100	360	180	225	65	14	125	95	320	250	110		267	24	50	27			58
40-13	25	40	65	80	360	112	140	50	14	100	70	210	160	100		267	24	50	27			31
40-16	25A			80	360	132	160	50	14	100	70	240	190	100		267	24	50	27			37
40-20	25			100	360	160	180	50	14	100	70	265	212	110		267	24	50	27			48
40-26	25A			100	360	180	225	65	14	125	95	320	250			267	24	50	27			61
40-32	25			125	470	200	250	65	14	125	95	345	280			342	32	80	35	10		95
40-32H	25A			125	526	200	250	65	14	125	95	345	280			367	42	110	45	12		115
50-13	25	50	65	100	360	132	160	50	14	100	70	240	190	100		267	24	50	27	8		35
50-16	25A			100	360	160	180	50	14	100	70	265	212	110		267	24	50	27			39
50-20	25			100	360	160	200	50	14	100	70	265	212			267	24	50	27			49
50-26	25A			100	360	180	225	65	14	125	95	320	250			267	24	50	27			68
50-26H	35			100	470	180	225	65	14	125	95	320	250			344	32	80	35	10		80
50-32	35			125	470	225	280	65	18	125	95	345	280			342	32	80	35	10		100
50-32H	45			125	526	225	280	65	18	125	95	345	280			367	42	110	45	12		120
65-13	25	65	80	100	360	160	180	65	14	125	95	280	212			267	24	50	27	8		41
65-16	25A			100	360	160	200	65	14	125	95	280	212			267	24	50	27			47
65-20	25			105	360	180	225	65	14	125	95	320	250			267	24	50	27			55
65-20H	35			105	465	180	225	65	14	125	95	320	250			339	32	80	35	10		70
65-26	35			100	470	200	250	80	15	160	120	360	280		18	342	32	80	35			87
65-32	35			125	470	225	280	80	18	160	120	400	315			342	32	80	35			110
65-32H	45			125	526	225	280	80	18	160	120	400	315			367	42	110	45	12		130
80-16	25A	80	100	125	360	180	225	65	14	125	95	320	250		14	267	24	50	27	8		53
80-20	35			125	470	180	250	65	15	125	95	345	280		14	342	32	80	35	10		76
80-26	35			125	470	200	280	80	15	160	120	400	315		18	342	32	80	35			95
80-32	35			125	470	250	315	80	16	160	120	400	315			342	32	80	35			115
80-32H	45			125	526	250	315	80	16	160	120	400	315			367	42	110	45	12		140
80-40	45			125	530	280	355	83	18	160	120	440	340			370	42	110	45	12		160
100-16	35	100	125	125	470	200	250	80	15	160	120	360	280			342	32	80	35	10		87
100-20	35			140	470	200	280	80	16	160	120	360	280			342	32	80	35			84
100-26	35			140	470	225	280	80	16	160	120	400	315			342	32	80	35			102
100-32	35			140	470	250	315	80	16	160	120	400	315			342	32	80	35			118
100-32H	45			140	526	250	315	80	16	160	120	400	315			367	42	110	45	12		145
100-40	45			140	530	280	355	100	20	200	150	500	400		23	370	42	110	45	12		176
125-20	35	120	150	145	470	250	315	80	16	160	120	400	315		18	342	32	80	35	10		112
125-26	35			140	470	250	355	80	16	160	120	400	315		18	342	32	80	35	10		117
125-32	45			140	530	280	355	100	18	200	150	500	400		23	370	42	110	45	12		155
125-40	45			160	530	315	400	100	18	200	150	500	400			370	42	110	45	12		178
150-20	35	150	200	160	497	280	400	100	18	200	150	400	315			367	32	80	35	10		133
150-26	45			160	530	250	355	100	18	200	150	450	350			370	42	110	45	12		163
150-32	45			160	530	280	400	100	18	200	150	550	450			370	42	110	45			170
150-40	45			160	530	315	450	100	18	200	150	550	450			370	42	110	45			207
