Centrifugal Pump VOLUTE PCI Series design is in accordance with international standards of ISO5199/2858, EN 25199/22858, which means PCI Series pumps are interchangeable with other similar pumps, conforming to the same standards. This ensures a robust, long lasting, high performing product consumers have come to depend on from Volute.

Category Water Pump Tags centrifugal pump, volute centrifugal pump, volute centrifugal pump, volute water pump, water pump, กลุ่มระบบบำบัดน้ำเสีย, กลุ่มระบบบำบัดน้ำเสีย, กลุ่มอาคารนิติบุคคล, กลุ่มอาคารนิติบุคคล, กลุ่มเกษตรและการเพาะเลี้ยงสัตว์น้ำ, กลุ่มเกษตรและการเพาะเลี้ยงสัตว์น้ำ, กลุ่มโรงงานอาหาร, กลุ่มโรงงานอาหาร, งานเกษตร, งานเกษตร, ปั๊มน้ำ, ปั๊มน้ำ (ที่ใช้กับน้ำไม่มีตะกอน), ปั๊มน้ำ (ที่ใช้กับน้ำไม่มีตะกอน), ปั๊มน้ำ volute, ปั๊มน้ำหอยโข่ง, ปั๊มน้ำหอยโข่ง volute, ระบบน้ำดี, ระบบน้ำดี

Centrifugal Pump VOLUTE PCI Series

PCI Series Centrifugal Pump Volute

FEATURE

PCL design is in accordance with international standards of ISO5199/2858, EN 25199/22858, which means PCL Series pumps are interchangeable with other similar pumps, conforming to the same standards. This ensures a robust, long lasting, high performing product consumers have come to depend on from Volute.

VOLUTE PCI Series Impeller / Casing

Optimized Hydraulic design with impeller diameter up to 547mm, PCI pumps have wider performance coverage than EN 25199/22858

Bearings

Cylindrical roller bearing at the impeller end, two angular contact ball bearing (back to back arrangement) at the drive end. Design bearing life up to 25000 hours.

Shaft seal

Single, Double mechanical seal, Cartridge mechanical seal, Gland packing are available.

Axial Force Balance

The axial force are mostly balance by the frony/rear wearing rings and balanceing holes in impeller design, The residual axial force are balanced by the back to back arranged contact ball bearing ar the drive end.

VOLUTE PCI Series Application

The PCI centrifugal pump is suitable for handling water or similar liquilar mainly used in the following.

Chemical and Petrochemical Industry
Oil refining plants
Paper making industry
Waste water treatment
Pharmaceutical
Food Industry

Pumped Liquids

Water
Acid
Alkaline
Ammonia
Other corrosive and abrasive liquids

Flange

Flange dimensions comply to ISO 7005-1:1992 PN16 Mpa as standard, other flange (including ANSI flange) are also available bby request.

Centrifugal Pump VOLUTE PCI Series Operating Data-50Hz

Pump sizes		32mm to 350mm
Flow	Up to	3000 m³/h
Head	Up to	160 m
Temperature	Up to	175 °C
Speed	Up to	3600 rpm
pressure	Up to	24 Bar

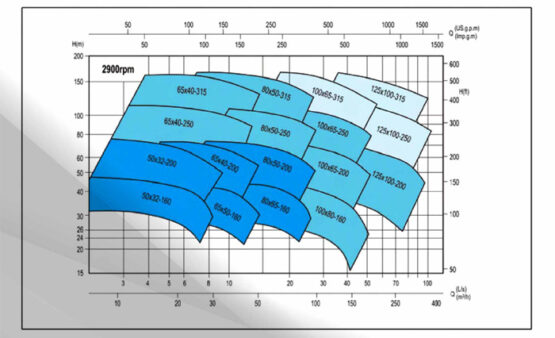

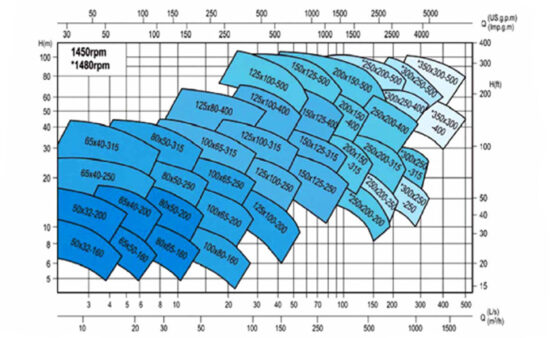

Centrifugal Pump VOLUTE PCI Series Performance

VOLUTE PCI Series Dimensions

Model	Shaft No	Flange Size		Pump Dimensions				Foot Dimensions									Bolt Hole		Shaft End					Spacer	Net Weight
Model	Shaft No	DN1	DN2	A	F	H1	H2	B	M1	M2	N1	N2	N3	W	T1	T2	S1	S2	D	L	T	E	U	X≥	Net Weight
50×32-160	1	50	32	80	385	132	160	50	100	70	240	190	110	285	12	6	M12	M12	24	50	27	8	20	100	38
50×32-200	1	50	32	80	385	160	180	50	100	70	240	190	110	285	12	6	M12	M12	24	50	27	8	20	100	46
65×40-200	1	65	40	100	385	160	180	50	100	70	265	212	110	285	13	6	M12	M12	24	50	27	8	20	100	48
65×40-250	2	65	40	100	500	160	225	65	125	95	320	250	110	370	14	6	M12	M12	32	80	35	10	27	100	70
65×40-315	2	65	40	125	500	180	250	65	125	95	345	280	110	370	16	6	M12	M12	32	80	35	10	27	100	80
65×50-160	1	65	50	80	385	200	160	50	100	70	240	190	110	285	11	6	M12	M12	24	50	27	8	20	100	40
80×50-200	1	80	50	100	385	132	200	50	100	70	265	2132	110	285	13	6	M12	M12	24	50	27	8	20	100	52
80×50-250	2	80	50	125	500	160	225	65	125	95	320	250	110	370	15	6	M12	M12	32	80	35	10	27	100	72
80×50-315	2	80	50	125	500	180	280	65	125	95	345	280	110	370	18	6	M12	M12	32	80	35	10	27	100	87
80×65-160	1	80	65	100	385	250	180	50	100	70	365	212	110	285	11	6	M12	M12	24	50	27	8	20	100	46
100×65-200	2	100	65	100	500	160	225	65	125	95	320	250	110	370	14	6	M12	M12	32	80	35	10	27	100	70
100×65-250	2	100	65	125	500	180	250	80	160	12	360	280	110	370	16	6	M16	M12	32	80	35	10	27	140	80
100×65-316	3	100	65	125	530	200	280	80	160	120	400	315	110	370	18	6	M16	M12	42	110	45	12	37	140	118
100×80-160	2	100	65	100	500	225	200	65	125	95	280	212	110	370	14	6	M12	M12	32	80	35	10	27	140	68
100×80-400	3	125	80	125	530	160	355	80	160	120	435	355	110	370	20	6	M16	M12	42	110	45	2	37	100	165
125×100-200	2	125	100	125	500	280	280	80	160	120	360	280	110	370	17	6	M16	M12	32	80	35	10	27	140	85
125×100-250	3	125	100	140	530	200	280	80	160	120	400	315	110	370	18	6	M16	M12	42	110	45	12	37	140	126
125×100-315	3	125	100	140	530	225	315	80	160	120	400	315	110	370	19	6	M16	M12	42	110	45	12	37	140	135
125×100-400	3	125	100	140	530	250	355	100	200	150	500	400	110	370	20	6	M20	M12	42	110	45	12	37	140	185
125×100-500	4	125	100	160	670	280	450	100	200	150	550	450	110	500	25	10	M20	M16	48	110	51.5	14	42.5	180	313
150X125-250	3	150	125	140	530	355	355	80	160	120	400	315	110	370	19	6	M16	M12	42	110	45	12	37	140	140
150X125-315	3	150	125	140	530	250	355	100	200	150	500	400	110	370	20	6	M20	M12	42	110	45	12	37	140	150
150X125-400	3	150	125	140	530	280	400	100	200	150	500	400	110	370	21	6	M20	M12	42	110	45	12	37	140	186
150X125-500	4	150	125	160	670	315	450	100	200	150	550	450	140	500	25	10	M20	M16	48	110	51.5	14	42.5	180	336
200×150-315	4	200	150	160	670	315	400	100	200	150	550	450	140	500	25	10	M20	M16	48	110	51.5	14	42.5	180	222
200×150-400	4	200	150	160	670	315	400	100	200	150	550	450	140	500	25	10	M20	M16	48	110	51.5	14	42.5	180	300
200×150-500	4	200	150	160	670	400	500	100	200	150	550	450	140	500	25	10	M20	M16	48	110	51.5	14	42.5	180	382
250×200-200	4	250	200	180	670	315	450	100	200	150	550	450	140	500	22	10	M20	M17	48	110	51.5	14	42.5	180	345
250×200-250	5	250	200	1880	885	315	450	100	200	150	550	450	180	670	25	12	M24	M18	65	140	69	18	58	250	490
250×200-315	4	250	200	180	670	315	450	100	200	150	550	450	140	500	25	10	M20	M19	48	110	51.5	14	42.5	180	277
250×200-400	4	250	200	180	670	355	500	100	200	150	550	450	140	500	25	10	M20	M20	48	110	51.5	14	42.5	180	340
250×200-500	5	300	200	225	885	400	580	150	315	250	760	630	180	670	28	12	M24	M21	65	140	69	18	58	250	495
300×250-250	5	300	250	225	885	355	5600	125	250	190	630	500	180	670	24	12	M24	M22	65	140	69	18	58	250	360
300×250-315	4	300	250	225	670	355	500	125	250	190	690	560	180	500	24	12	M20	M23	48	110	51.5	14	42.5	180	350
300×250-400	5	300	250	225	885	450	560	150	250	190	690	560	180	670	28	12	M24	M24	65	140	69	18	58	250	480
300×250-500	5	300	250	225	885	450	630	150	315	250	760	630	180	670	28	12	M24	M25	65	140	69	18	58	250	530
350×300-400	6	350	300	250	975	450	600	180	315	250	760	630	180	730	24	12	M24	M26	75	170	79.5	20	67.5	250	900
350×300-500	6	350	300	250	975	500	650	225	360	270	900	750	180	730	32	12	M30	M27	75	170	79.5	20	67.5	250	1100
