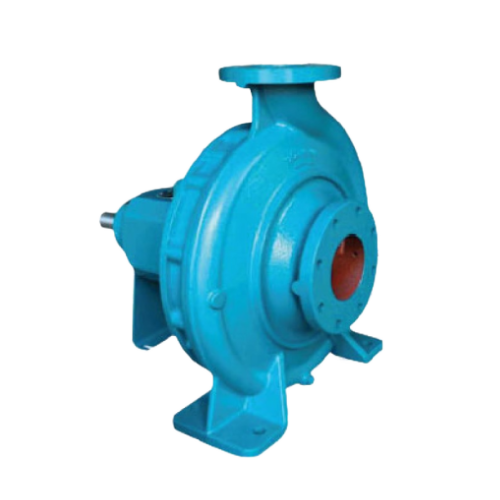

Centrifugal pump VOLUTE UCI Series 500x500

Centrifugal Water Pump VOLUTE UCI Series

Name: Centrifugal Water Pump VOLUTE UCI Series - บริษัท ย่งฮง (ประเทศไทย) จำกัด
Brand: VOLUTE

Centrifugal Water Pump VOLUTE UCI Series Horizontal single stage end suction centrifugal pump dimensionally built to ISO2858/5199, The back pull out design allows for easy maintenance and repair as the rotating element may be removed without disturbing the pipework.

Category Water Pump Tags centrifugal pump, volute centrifugal pump, volute water pump, water pump, กลุ่มระบบบำบัดน้ำเสีย, กลุ่มอาคารนิติบุคคล, กลุ่มอาคารนิติบุคคล, กลุ่มอาคารนิติบุคคล, กลุ่มเกษตรและการเพาะเลี้ยงสัตว์น้ำ, งานเกษตร, งานเกษตร, ปั๊มน้ำ, ปั๊มน้ำ (ที่ใช้กับน้ำไม่มีตะกอน), ปั๊มน้ำ volute, ปั๊มน้ำหอยโข่ง, ปั๊มน้ำหอยโข่ง volute, ระบบน้ำดี

Centrifugal pump VOLUTE UCI Series

Centrifugal Water Pump Volute UCI Series

Application

Pulp Production
Recycled fiber preparation
Papermaking
Chemical industry
Food industry
Energy supply
Water supply
Waste water treatment

Centrifugal Pump VOLUTE UCI Series Design

Horizontal single stage end suction centrifugal pump dimensionally built to ISO2858/5199, The back pull out design allows for easy maintenance and repair as the rotating element may be removed without disturbing the pipework.

VOLUTE UCI Series Operating Data 50Hz

Pump sizes		32mm to 350mm
Flow	Up to	540 L/s
Head	Up to	160 m
Temperature	Up to	120 °C
Speed	Up to	3600 rpm
Pressure	Up to	24 Bar

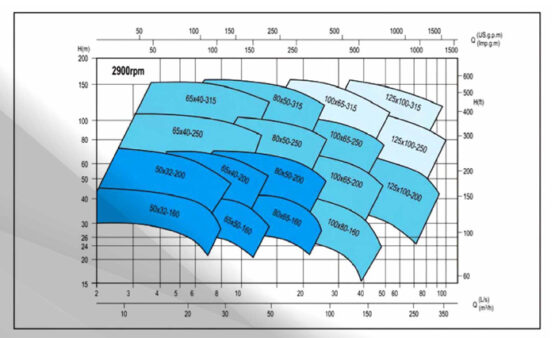

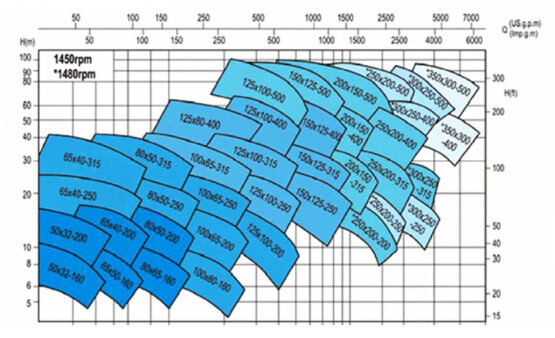

VOLUTE UCI Series Performance

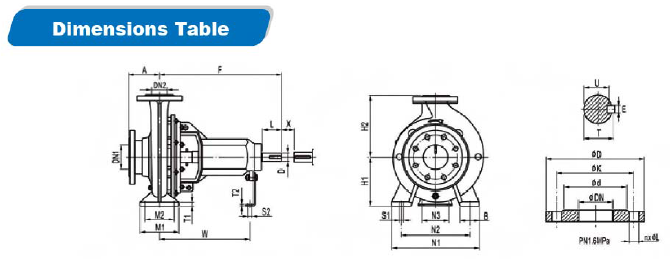

VOLUTE UCI Series Dimensions

รุ่น	Shaft	Flange Size		Pump Dimension				Foot Dimensions									Bolt Hole		Shaft End					Spacer	Net Weight
รุ่น	Shaft	DN1	DN2	A	F	H1	H2	B	M1	M2	N1	N2	N3	W	T1	T2	S1	S2	D	L	T	E	U	X≥	Net Weight
50×32-160	1	50	32	80	385	132	160	50	100	70	240	190	110	285	12	6	M12	M12	24	50	27	8	20	100	38
50×32-200	1	50	32	80	385	160	180	50	100	70	240	190	110	285	12	6	M12	M12	24	50	27	8	20	100	46
65×40-200	1	65	40	100	385	160	180	50	100	70	265	212	110	285	13	6	M12	M12	24	50	27	8	20	100	48
65×40-250	2	65	40	100	500	180	225	65	125	95	320	250	110	370	14	6	M12	M12	32	80	35	10	27	100	70
65×40-315	2	65	40	125	500	200	250	65	125	95	345	280	110	370	16	6	M12	M12	32	80	35	10	27	100	80
65×50-160	1	65	50	80	385	132	160	50	100	70	240	190	110	285	11	6	M12	M12	24	50	27	8	20	100	40
80×50-200	1	80	50	100	385	160	200	50	100	70	265	212	110	285	13	6	M12	M12	24	50	27	8	20	100	52
80×50-250	2	80	50	125	500	180	225	65	125	95	320	250	110	370	15	6	M12	M12	32	8	35	10	27	100	72
80×50-315	2	80	50	125	500	225	280	65	125	95	345	280	110	370	18	6	M12	M12	32	80	35	10	27	100	87
80×65-160	1	80	65	100	385	160	180	50	100	70	265	212	110	285	11	6	M12	M12	24	50	27	8	20	100	46
100×65-200	2	100	65	100	500	180	225	65	125	95	320	250	110	370	14	6	M12	M12	32	80	35	10	27	140	70
100×65-250	2	100	65	125	500	200	250	80	160	120	360	280	110	370	16	6	M12	M12	32	80	35	10	27	140	80
100×65-316	3	100	65	125	530	225	280	80	160	120	400	315	110	370	18	6	M12	M12	42	110	45	12	37	140	118
100×80-160	2	100	60	100	500	160	200	65	125	95	280	212	110	370	14	6	M12	M12	32	80	35	10	27	140	68
100×80-400	3	125	80	125	530	280	355	80	160	120	435	355	110	370	20	6	M16	M12	42	110	45	12	37	140	165
125×100-200	2	125	100	125	500	200	280	80	160	120	360	280	110	370	17	6	M16	M12	32	80	35	10	27	140	85
125×100-250	3	125	100	140	530	225	280	80	160	120	400	315	110	370	18	6	M16	M12	42	110	45	12	37	140	126
125×100-315	3	125	100	140	530	250	315	80	160	120	400	315	110	370	19	6	M16	M12	42	110	45	12	37	140	135
125×100-400	3	125	100	140	530	280	355	100	200	150	500	400	110	370	20	6	M20	M12	42	110	45	12	37	140	175
125×100-500	4	125	100	160	670	355	450	100	200	150	550	450	110	500	25	10	M20	M16	48	110	51.5	14	42.5	180	313
150X125-250	3	150	125	1410	530	250	355	80	160	120	400	315	110	370	19	6	M16	M12	42	110	45	12	37	140	140
150X125-315	3	150	125	140	530	280	355	100	200	150	500	400	110	370	20	6	M20	M12	42	110	45	12	37	140	150
150X125-400	3	150	125	140	530	315	400	100	200	150	500	400	110	370	21	6	M20	M12	42	110	45	12	37	140	186
150X125-500	4	150	125	160	670	315	450	100	200	150	550	450	140	500	25	10	M20	M16	48	110	51.5	14	42.5	180	336
200×150-315	4	200	150	160	670	315	400	100	200	150	550	450	140	500	25	10	M20	M16	48	110	51.5	14	42.5	180	222
200×150-400	4	200	150	160	670	315	450	100	200	150	550	450	140	500	25	10	M20	M16	48	110	51.5	14	42.5	180	300
200×150-500	4	200	150	160	670	400	500	100	200	150	550	450	140	500	25	10	M20	M16	48	110	51.5	14	42.5	180	382
250×200-200	4	250	200	180	670	315	450	100	200	150	550	450	140	500	22	10	M20	M16	48	110	51.5	14	42.5	180	345
250×200-250	5	250	200	180	885	315	450	100	200	150	550	450	180	670	25	12	M24	M16	65	140	69	18	58	250	490
250×200-315	4	250	200	180	670	315	450	100	200	150	50	450	140	500	25	10	M20	M16	48	110	51.5	14	42.5	180	277
250×200-400	4	250	200	180	670	355	500	100	200	150	550	450	140	500	25	10	M20	M16	48	110	51.5	14	42.5	180	340
250×200-500	5	250	200	225	885	400	580	150	315	250	760	630	180	670	28	12	M24	M16	65	140	69	18	58	250	495
300×250-250	5	300	250	225	885	355	560	125	250	190	630	500	180	670	24	12	M24	M16	65	140	69	18	58	250	360
300×250-315	4	300	250	225	670	355	500	125	250	190	690	560	180	500	24	12	M20	M16	48	110	51.5	14	42.5	180	350
300×250-400	5	300	250	225	885	450	560	150	250	190	690	560	180	670	28	12	M24	M16	65	140	69	18	58	250	480
300×250-500	5	300	250	225	885	450	630	150	315	250	760	630	180	670	28	12	M24	M16	65	140	69	18	58	250	530
350×300-400	6	350	300	250	975	450	600	180	315	250	760	630	180	730	24	12	M24	M16	75	170	79.5	20	67.5	250	900
350×300-500	6	350	300	250	975	500	650	225	360	270	900	750	180	730	24	12	M30	M16	75	170	79.5	20	67.5	250	1100
