Centrifugal Pumps CAT 3K Series
Centrifugal Pumps CAT 3K Series are made from high-quality materials for durability and long-lasting performance. They come with powerful electric motors that operate quietly with low noise levels. They have overheat protection that automatically turns off the pump when the motor overheats.
Facebook
Twitter
Email
Print

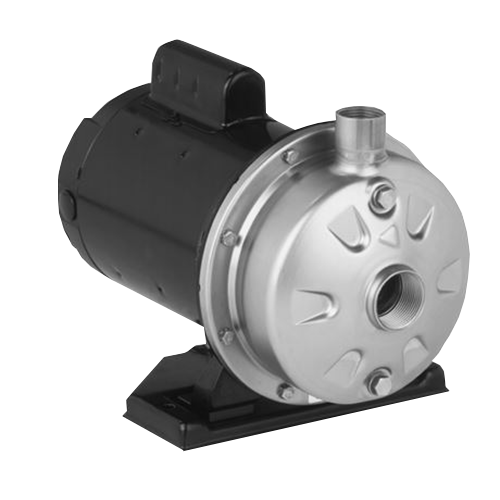

Centrifugal Pumps CAT 3K Series
FEATURES
- 304SSL liquid-end construction offers corrosion resistance and increases operating life over typical cast iron models.
- Unique bulge formed components eliminates harsh radius and welds and provides greater efficiency and durability.
- Back pullout design permits easy repair of impeller and seal.
- High quality mechanical shaft seal and o-rings for a variety of standard or high temperature and chemical duty applications.
- Under casing foot mount and centerline discharge reduces misalignment and assures self-venting.
- Close coupled, motorized packages for compact and easy installation.
- Pump can be mounted horizontal (most common) or in a vertical position. See special note under General Safety and Operation.
SINGLE PHASE
| MODEL | 3K Series |
| Flow Range | Up to 90 gpm |
| Pressure Range (up to 63 PSI) | 145ft.Head |
| Minimum Inlet Pressure to Prime | Flooded |
| RPM | 1725 or 3450 rpm |
| Inlet Fitting | 1-1/4″,1-1/2″ NPT (F) |
| Discharge Fitting | 1″ NPT(F) |
| Shaft Seal | Mech Type 21 |
| Horsepower | 1/3,1/2,3/4,1,1-1/2,2,3 HP |
| Maximum Temperature | 160 °F |
THREE PHASE
| MODEL | 3K Series |
| Flow Range | Up to 66 gpm |
| Pressure Range (up to 106 PSI) | 245 ft.Head |
| Minimum Inlet Pressure to Prime | Flooded |
| RPM | 3450 rpm |
| Inlet Fitting | 1-1/4″,1-1/2″ NPT (F) |
| Discharge Fitting | 1″ NPT(F) |
| Shaft Seal | Mech Type 21 |
| Horsepower | 2,3,5 (IP 55 TEFC) |
| Maximum Temperature | 140 °F |
