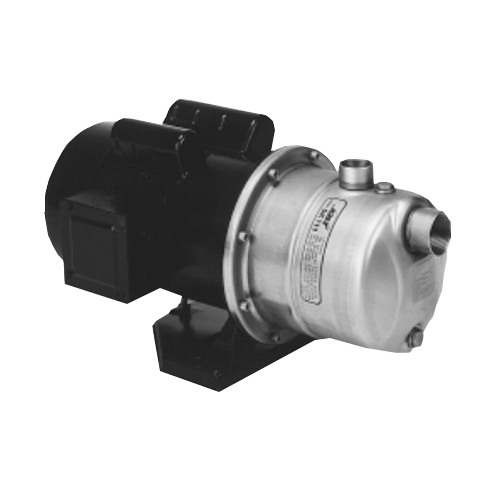

Centrifugal Pumps CAT 5K Series

Centrifugal Pumps CAT 5K Series

Centrifugal Pumps CAT 5K Series are made from high-quality materials for durability and long-lasting performance. They come with powerful electric motors that operate quietly with low noise levels. They have overheat protection that automatically turns off the pump when the motor overheats.

Category Tags , , , , , ,
ขอใบเสนอราคา/Request a quote
Facebook
Twitter
Email
Print

Centrifugal Pumps CAT 5K Series

FEATURE

  • 304SSL liquid-end construction offers corrosion resistance and increases operating life over typical cast iron models
  • Unique bulge formed components eliminates harsh radius and welds and provides greater efficiency and durability
  • Back pullout design permits easy repair of impeller and seal
  • High quality mechanical shaft seal and o-rings for a variety of standard or high temperature and chemical duty applications
  • Under casing foot mount and centerline discharge reduces misalignment and assures self-venting
  • Close coupled, motorized packages for compact and easy installation
  • Durable Noryl/Fiberglass Diffuser



MODEL 5K Series
Flow Range Up to 18.5 gpm
Pressure Range (up to 82 PSI) 190 ft.Head
RPM  3450 rpm
Inlet Fitting 1-1/4″ NPT(F)
Discharge Fitting 1″ NPT(F)
Shaft Seal Mech Type 21
Horsepower 1, 2 HP
Maximum Temperature 113°F
