Centrifugal Pump KAWAMOTO GE-4M Series
End Suction Centrifugal Pump KAWAMOTO Model GE-4M suitable for various applications, including water circulation, cooling, agriculture, and industry. It’s easy to maintain and inspect with a long-life mechanical seal for shaft sealing. It has a steady installation with less vibration and quiet operation sound due to its 4-pole motor revolution. The pump is in accordance with the Japanese industrial standard (JIS B8313) and can be used for various applications, except for drinking water.
Facebook
Twitter
Email
Print

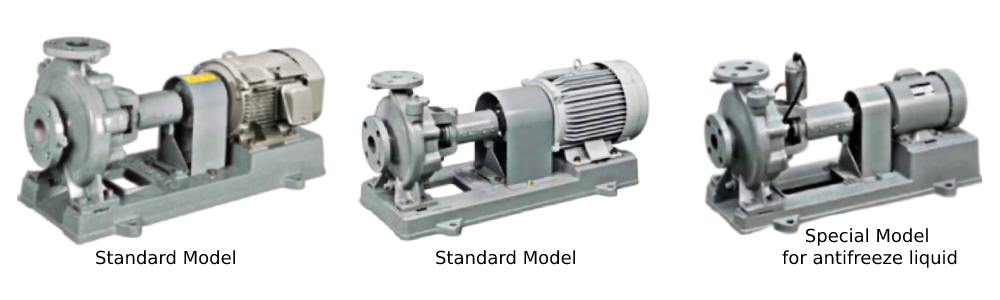

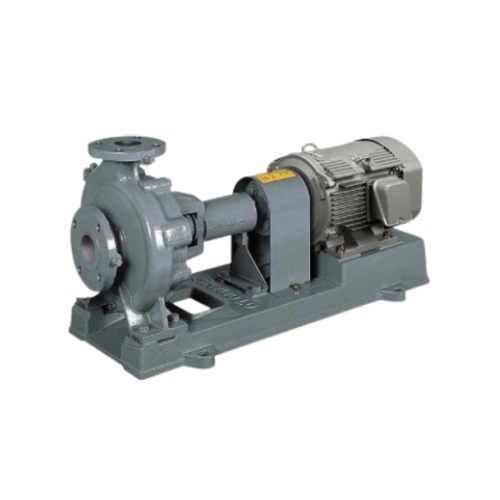

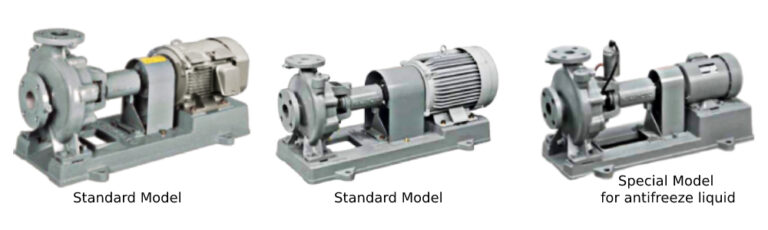

Model GE-4M
End Suction Centrifugal Pump KAWAMOTO
4 POLES / 50 Hz SUCTION SIZE 40 ~ 150 MM
APPLICATIONS
- Cold and hot water circulation
- Cooling water for building and factory equipment
- Agriculture
- Industry
- Other general water supply (Please inquire in case drinking water application)
FEATURES
- Easy maintenance and inspection due to back pull outconstruction.
- Long life mechanical seal is adopted for shaft sealing.
- Simple end suction top centerline discharge position enable steady installation with high discharge pipe loading.
- Wide application for various usages.
- Less vibration and quiet operation sound because of 4 pole motor revolution.
- In accordance with Japanese industrial standard (JIS B8313).

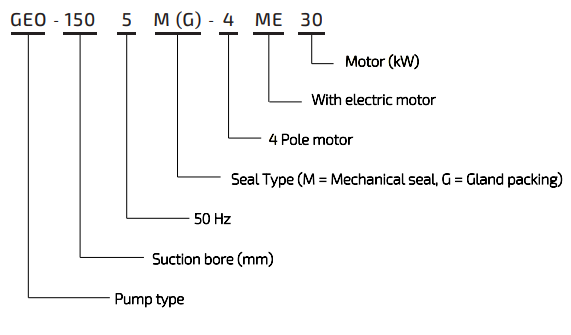

MODEL CODE

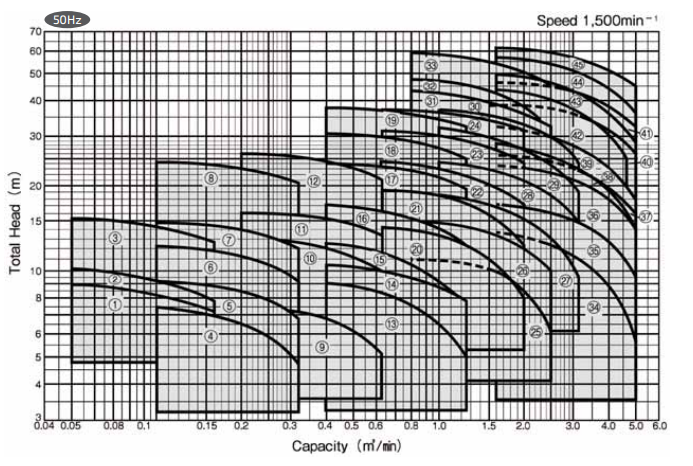

PERFORMANCE CHART
STANDARD SPECIFICATIONS
| Description | Model :GE-4M | |
|---|---|---|
| Liquid | Name | Clean water |
| Temperature | 0-90 °C | |
| Max Working Pressure | 10 bar | |
| Synchronous Speed | 1500 min-1 | |
| Installation | TEFC outdoor use (Motor IP55, Class F) | |
| Material | Casing | Cast iron (FC200) |
| Impeller | Cast iron (FC200), Bronze (CAC406) or Stainless cast iron (SCS13) | |
| Shaft | Stainless steel (SUS403) | |
| Construction | Impeller | Closed |
| Shaft Seal | Mechanical seal (SIC x Carbon x FKM ) | |
| Gland packing (PTFE-non asbestos) | ||
| Sealing | None | |
| Bearing | Sealed ball bearing | |
| Flange | JIS 10K | |
| Baseplate | Cast iron (FC150) | |
OPTIONAL SPECIFICATIONS
| Description | Model: GE-4M | |
|---|---|---|
| Liquid | Name | Non freeze liquid |
| Temperature | -15-40 °C or -5-40 °C | |
| Material | Casing | Cast iron + Nylon coating |
| Impeller | SCS14 (SUS316) or SCS13 (SUS304) 40x32 : 0.4~0.75kw 50x40:0.4~2.2kw 65x50 : 0.75-3.7kw 80x65 :1.5-llkw 100x80 :3.7-15kw 125x100 :3.7~15kw 150x125:7.5~30kw |
|
| Shaft | Stainless steel (SUS316) | |
| Construction | Impeller | Closed |
| Shaft Seal | Mechanical seal (SIC x SIC x H-NBR ) | |
| Sealing | Quenching | |
| Bearing | Sealed ball bearing | |
| Flange | JIS 10K | |
| Baseplate | Channel baseplate for European motor bland | |
| Anti-corrosion Painting | Urethane resin coating 4- non touch seal bearing structure | |
| Epoxy resin coating | ||
SPECIFICATION TABLE
| No. | Model | Motor (kW) | Performance | Back Pressure Mpa (kgf/cm2) | |||
|---|---|---|---|---|---|---|---|
| Capacity (m3/min) | Head (m) | Capacity (m3/min) | Head (m) | ||||
| 1 | GEJ-40x32SM(G)-4MN0.4 | 0.4 | 0.05 | 9 | 0.16 | 7.2 | 0.88 (9.0) |
| 2 | GEK-40x325M(G)-4MN0.4 | 0.4 | 0.05 | 10.2 | 0.16 | 7.8 | 0.86 (8.8) |
| 3 | GEK40SM(G)4ME0.7S | 0.75 | 0.05 | 15.2 | 0.16 | 12.5 | 0.81(8.3) |
| 4 | GEJ-S0x40SM(G)-4MN0.4 | 0.4 | 0.1 | 7.5 | 0.32 | 4.8 | 0.89 (9.1) |
| 5 | GEJ505M(G)4ME0.7S | 0.75 | 0.1 | 9.2 | 0.32 | 6.8 | 0.88 (9.0) |
| 6 | GEKS05M(G)4ME0.75 | 0.75 | 0.1 | 122 | 0.32 | 9.2 | 0.85 (8.7) |
| 7 | GEKS05M(G)4ME1.S | 1.5 | 0.1 | 14.8 | 0.32 | 12 | 0.82 (8.4) |
| 8 | GELS0SM(G)4ME2.2 | 2.2 | 0.1 | 242 | 0.32 | 20.5 | 0.73 (7.4) |
| 9 | GEJ6SSM(G)4ME0.7S | 0.75 | 0.2 | 8 | 0.63 | 5.2 | 0.89 (9.1) |
| 10 | GEK655M(G)4ME1.S | 1.5 | 0.2 | 13 | 0.63 | 10 | 0.84 (8.6) |
| 11 | GEK65SM(G)4ME22 | 2.2 | 0.2 | 16 | 0.63 | 13.2 | 0.8 (82) |
| 12 | GEL65SM(G)4ME3.7 | 3.7 | 0.2 | 26 | 0.63 | 21 | 0.72 (7.3) |
| 13 | GEJ805M(G)4ME1.5 | 1.5 | 0.4 | 9 | 1.25 | 5 | 0.87 (8.9) |
| 14 | GEJ805M(G)4M£2.2 | 2.2 | 0.4 | 10.5 | 1.25 | 7.8 | 0.86 (8.8) |
| 15 | GEK80SM(G)4ME22 | 2.2 | 0.4 | 12.5 | 1.25 | 7.5 | 0.84 (8.6) |
| 16 | GEK80SM(G)4ME3.7 | 3.7 | 0.4 | 17 | 1.25 | 12.2 | 0.79 (8.1) |
| 17 | GEL80SM(G)4ME5.5 | 5.5 | 0.4 | 242 | 1.25 | 19.2 | 0.74 (7.5) |
| 18 | GEM80SM(G)4ME7.S | 7.5 | 0.4 | 30.5 | 1.25 | 24.5 | 0.68 (6.9) |
| 19 | GEM80SM(G)4ME11 | 11 | 0.4 | 38 | 1.25 | 32 | 0.60 (6.1) |
| 20 | GEK100SM(G)4ME3.7 | 3.7 | 0.63 | 14.2 | 2 | 8 | 0.85 (8.7) |
| 21 | GEL100SM(G)4ME5.5 | 5.5 | 0.63 | 192 | 2 | 12.2 | 0.78 (8.0) |
| 22 | GEL100SM(G)4ME7.S | 7.5 | 0.63 | 24 | 2 | 17 | 0.75(7.6) |
| 23 | GEM1005M(G)4ME11 | 11 | 0.63 | 31 | 2 | 24 | 0.69 (7.0) |
| 24 | GEM1005M(G)4ME15 | 15 | 0.63 | 37 | 2 | 31 | 0.62 (6.3) |
| 25 | GEK125SM(G)4M£3.7 | 3.7 | 0.8 | 11.8 | 2.5 | 6.2 | 0.84 (8.6) |
| 26 | GEK12SSM(G)4ME5.S | 5.5 | 0.8 | 15 | 2.5 | 10 | 0.81 (8.3) |
| 27 | GEL125S8M(G)4ME7.S | 7.5 | 1 | 18.5 | 3.1 | 10 | 0.80 (8.2) |
| 28 | GEL125S8M(G)4ME11 | 11 | 1 | 24 | 3.15 | 15.5 | 0.76 (7.7) |
| 29 | GEM12558M(G)4ME15 | 15 | 1 | 32 | 3.15 | 19.5 | 0.66 (6.7) |
| 30 | GEM12558M(G)4ME18 | 18.5 | 1 | 37 | 3.15 | 24 | 0.62 (6.3) |
| 31 | GEM125SM(G)4ME18 | 18.5 | 0.8 | 42.5 | 2.5 | 30.8 | 0.55(5.6) |
| 32 | GE012SSM(G)4ME22 | 22 | 0.8 | 47 | 2.5 | 31.5 | 0.52 (5.3) |
| 33 | GE012SSM(G)4ME30 | 30 | 0.8 | 59 | 2.5 | 45 | 0.41 (4.2) |
| 34 | GEK1S0SM(G)4ME7.5 | 7.5 | 1.6 | 13.5 | 5 | 4.8 | 0.85 (8.7) |
| 35 | GEK1505M(G)4ME11 | 11 | 1.6 | 17.2 | 5 | 9.5 | 0.82 (8.4) |
| 36 | GEL1S0SM(G)4ME1S | 15 | 1.6 | 23.5 | 5 | 13.5 | 0.76(7.8) |
| 37 | GEL1S05M(G)4ME18 | 18.5 | 1.6 | 25.2 | 5 | 16 | 0.75(7.6) |
| 38 | GEM1S0SM(G)4ME18 | 18.5 | 1.6 | 28 | 5 | 13.5 | 0.69 (7.0) |
| 39 | GEM1S0SM(G)4M£22 | 22 | 1.6 | 32 | 5 | 17.5 | 0.65(6.6) |
| 40 | GEM1S0SM(G)4ME30 | 30 | 1.6 | 39 | 5 | 26 | 0.58 (5.9) |
| 41 | GEM150SM(G)4M637 | 37 | 1.6 | 45.5 | 5 | 32 | 0.51 (52) |
| 42 | GE01505M(G)4M£30 | 30 | 1.6 | 44.5 | 5 | 25 | 0.54 (5.5) |
| 43 | GE0150SM(G)4ME37 | 37 | 1.6 | 49.5 | 5 | 28 | 0.49 (5.0) |
| 44 | GE01S05M(G)4ME4S | 45 | 1.6 | 56.5 | 5 | 35 | 0.42 (4.3) |
| 45 | GE0150SM(G)4MESS | 55 | 1.6 | 61 | 5 | 45 | 0.38 (3.9) |
