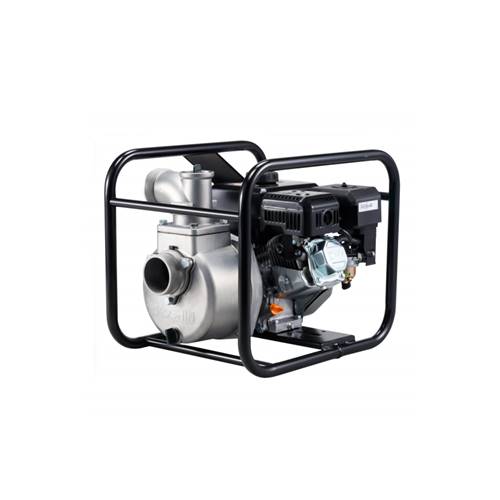

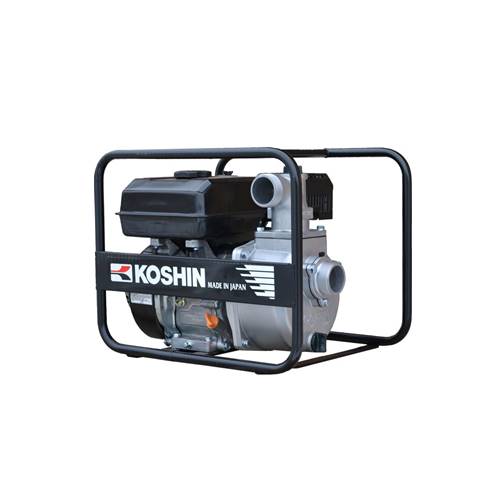

Model. SEV-50X & SEV-80X
| Model | SEV-50X | SEV-80X | |
|---|---|---|---|
| PUMP | Connection Dia | 50 mm (2″) | 80 mm (3″) |
| Connection Thread | Outer Pipe Thread BSP or NPT | Outer Pipe Thread BSP or NPT | |
| Total Head | 27 m (88 ft) | 27 m (88 ft) | |
| Delivery Volume | 620 L/min (163 USG/min) | 1050 L/min (277 USG/min) | |
| Max. Suction Lift | 8 m (26ft) | 8 m (26ft) | |
| ENGINE | Type | Forced Air-cooled 4-stroke Gasoline Engine | Forced Air-cooled 4-stroke Gasoline Engine |
| Model | Koshin K180 | Koshin K180 | |
| Displacement | 179 cc | 179 cc | |
| Rated Output | 3.1 kW (4.2 PS) / 3600 rpm | 3.1 kW (4.2 PS) / 3600 rpm | |
| Max. Output | 3.5 kW (4.8 PS) / 3600 rpm | 3.5 kW (4.8 PS) / 3600 rpm | |
| Fuel | Automotive Unleaded Gasoline | Automotive Unleaded Gasoline | |
| Fuel Tank Capacity | 3.6 L (0.95 USG) | 3.6 L (0.95 USG) | |
| Continuous Operating Time | Approx. 2.6 hrs | Approx. 2.4 hrs | |
| Starting Method | Recoil Starter | Recoil Starter | |
| Standard Accessories | 1 Strainer, 2 Hose Couplings, 3 Hose Bands, 1 Engine Tool Set | 1 Strainer, 2 Hose Couplings, 3 Hose Bands, 1 Engine Tool Set | |
| Net Weight | 25.2 kg (55.5 lbs) | 28.7 kg (63.2 lbs) | |
| Gross Weight | 27.2 kg (59.9 lbs) | 30.7 kg (67.6 lbs) | |
| Dimensions L×W×H (mm) | 504 × 405 × 411 | 543 × 425 × 460 | |
| Packing Unit | 1 | 1 | |
