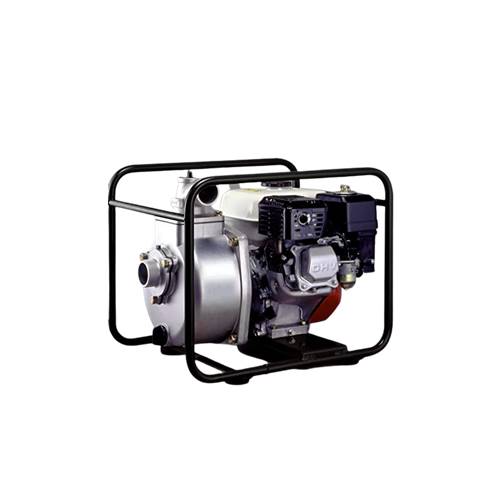

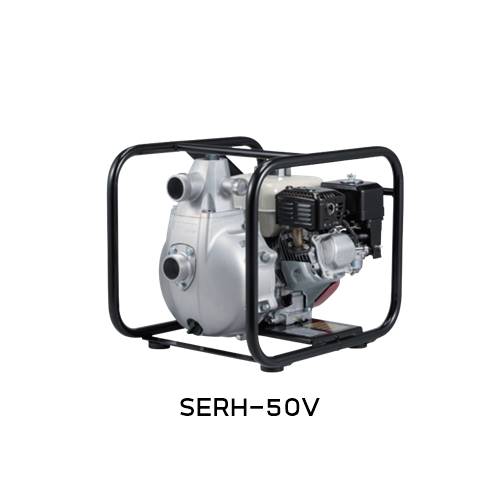

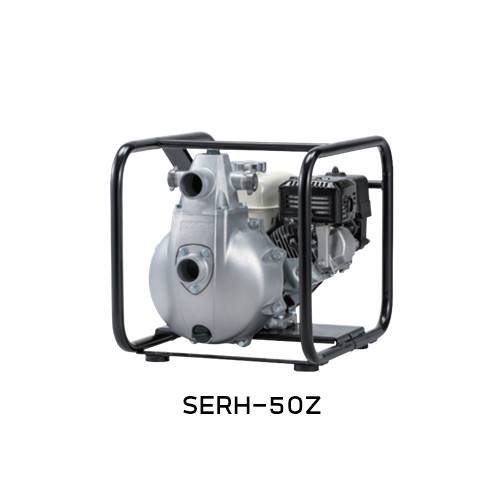

Model. SERH-50B, SERH-50V, and SERH-50Z
| Model | SERH-50B | SERH-50V | SERH-50Z | ||
|---|---|---|---|---|---|
| PUMP | Connection Dia | Suction | 50 mm (2″) | 50 mm (2″) | 50 mm (2″) |
| Discharge | 50 mm (2″) | 50 mm (2″) / 25 mm (1″) × 2 | 50 mm (2″) / 25 mm (1″) × 2 | ||
| Connection Thread | Outer Pipe Thread BSP or NPT | Outer Pipe Thread BSP or NPT *1 | Outer Pipe Thread BSP or NPT *1 | ||
| Total Head | 57 m (187 ft) | 80 m (262 ft) | 90 m (295 ft) | ||
| Delivery Volume | 440 L/min(116 USG/min) | 430 L/min (114 USG/min) | 500 L/min (132 USG/min) | ||
| Max. Suction Lift | 8 m (26 ft) | 8 m (26 ft) | 8 m (26 ft) | ||
| ENGINE | Type | Forced Air-cooled 4-stroke Gasoline Engine | Forced Air-cooled 4-stroke Gasoline Engine | Forced Air-cooled 4-stroke Gasoline Engine | |
| Model | Honda GX160 | Honda GX160 High rpm | Honda GX200 High rpm | ||
| Displacement | 163 cc | 163cc | 196cc | ||
| Rated Output | 2.9 kW (3.9 PS) / 3600 rpm | 3.2 kW (4.4 PS) / 4300 rpm | 3.7 kW (5.0 PS) / 3600 rpm | ||
| Max. Output | 3.6 kW (4.9 PS) / 3600 rpm | 3.9 kW (5.3 PS) / 4500 rpm | 4.5 kW (6.1 PS) / 4000 rpm | ||
| Fuel | Automotive Unleaded Gasoline | Automotive Unleaded Gasoline | Automotive Unleaded Gasoline | ||
| Fuel Tank Capacity | 3.1 L (0.82 USG) | 3.1L (0.82 USG) | 3.1L (0.82 USG) | ||
| Continuous Operating Time | Approx. 2 hrs | Approx. 2 hrs | Approx. 2 hrs | ||
| Starting Method | Recoil Starter | Recoil Starter | Recoil Starter | ||
| Standard Accessories | 2 Coupling Set | 1 Strainer | 1 Strainer | ||
| 3 Hose Bands (φ60) | 3 Hose Bands (φ60) | 3 Hose Bands (φ60) | |||
| 1 Strainer | 2 Hose Bands (φ32) | 2 Hose Bands (φ32) | |||
| 1 Engine Tool Set | 1 Coupling Set (50 mm) | 1 Coupling Set (50 mm) | |||
| 1 Engine Tool | 1 Engine Tool | ||||
| 2 Nipples (25 mm) | 2 Nipples (25 mm) | ||||
| 1 Closing Plate (50 mm) | 1 Closing Plate (50 mm) | ||||
| 1 Quick Coupling (25 mm) (*BSP model only) | 1 Quick Coupling (25 mm) (*BSP model only) | ||||
| Net Weight | 31 kg (68.3 lbs) | 34 kg (75 lbs) | 34.6 kg (76 lbs) | ||
| Gross Weight | 34 kg (74.9 lbs) | 37 kg (82 lbs) | 37.6 kg (83 lbs) | ||
| Dimensions L×W×H (mm) | 535 × 405 × 440 | 555 × 450 × 468 | 570 × 450 × 468 | ||
| Packing Unit | 1 | 1 | 1 | ||
