Pabool Pumps are Designed for Sprinkler System & General Irrigation

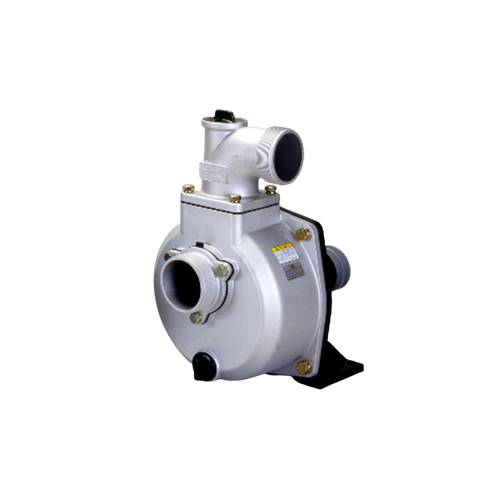

Pabool Pump H Series Thermoplastic Pump SU-80L is the biggest KOSHIN bare pump among the H and L-series. This pump kit is supplied without primary motor.
With Pabool pump you can easy to assemble your own economical and reliable heavy duty pump set for many applications. You can use any suitable driving motor (electrical, gas, gasoline or diesel) with 7.5-10 HP or PTO from big engine. The drive to the pump shaft is carried out by means of 2 belts 3 “x B2 and drive pulley Diameter 78 mm.
Designed for Sprinkler Systems, General Irrigation and high pressure cleaning.
Pump casing is made from cast aluminum alloy.
Cast iron, tough against abrasion, is the material of impeller and volute casing.
*Don’t use a hot water higher 70 degrees C.
| Model | SU-80L | ||
|---|---|---|---|
| Connection Dia | 80 mm (3″) | ||
| Connection Thread | Outer Pipe Thread BSP | ||
| Revolution | 3600 rpm | 4000 rpm | |
| Total Head | 30 m (98 ft) | 38 m (124 ft) | |
| Max. Suction Lift | 8 m (2.6ft) | ||
| Delivery Volume | 900 L/min (237 USG/min) | 1000 L/min (264 USG/min) | |
| Output | 5.5 kW (7.5 PS) | 7.5 kW (10 PS) | |
| Standard Accessories | 1 Strainer, 2 Coupling Sets, 3 Hose Bands | ||
| Net Weight | 19.5 kg (19.5 lbs) | ||
| Gross Weight | 20.5 kg (45.1 lbs) | ||
| Dimensions L×W×H (mm) | 414 × 277 × 305 | ||
| Packing Unit | 1 | ||
