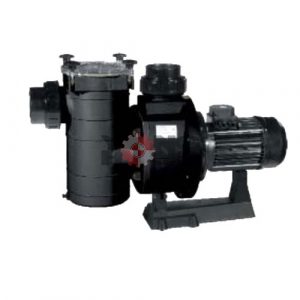

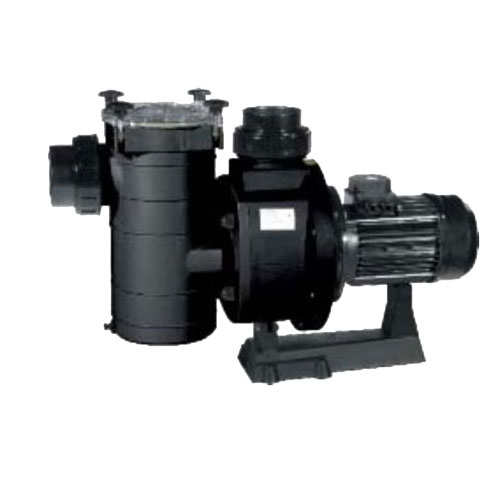

Self- Priming centrifugal pumps KAN MODEL KRIPSOL
KAN MODEL
Self- Priming centrifugal pumps for swimming pools
- Thermoplastic injected pre-filter high capacity (14 l.).
- Hydraulic body in noryl charged with fiber glass.
- Hinged cover screws with stainless steel studs.
- Impeller, diffuser and flange in noryl charged with fiber glass.
- MOTOR: IP 55 protection, insulation class F. 50 hz. 2.850 R.P.M.
- MAXIMUM WATER: Temperature 50ºC, maximum pressure 3,0 BAR.
- 60Hz available
- This pump is suitable to be used with sea water.
MECHANICAL SEAL
Specifications data
| TYPE | HP P2 |
KW P1 |
Three-phase | Weight(kg.) | |
| V | A | ||||
| KAN510B | 5,5 | 4,71 | 230/400/700 | 15,6/9,0/5,2 | 45 |
| KAN610B | 6,5 | 5,75 | 230/400/700 | 20/11,5/6,6 | 46 |
| KAN750B | 7,5 | 7 | 230/400/700 | 20,912,1/7 | 52 |
| KAN1010B | 10,0 | 8,7 | 230/400/700 | 27,3/15,8/9,2 | 66 |
| KAN1260B | 12,5 | 10,2 | 230/400/700 | 31,2/18/10,4 | 76 |
| TYPE | dB (*) |
Head in m | |||||
| 8 | 10 | 11 | 12 | 13 | (mm) | ||
| Capacity in m³/h | |||||||
| KAN510B | 80 | 90 | 80 | 72 | 64 | 56 | 889 |
| KAN610B | 82 | 94,5 | 90 | 87 | 84,2 | 80 | 869 |
| KAN750B | 85 | 122 | 113 | 108 | 102 | 95 | 914 |
| KAN1010B | 87 | 135 | 125,4 | 120,4 | 115,6 | 110,5 | 944 |
| KAN1260B | 87 | 142,7 | 134,3 | 129,3 | 124,5 | 117 | 984 |
| TYPE | dB (*) |
Head in m | |||||
| 14 | 16 | 18 | 20 | 21 | (mm) | ||
| Capacity in m³/h | |||||||
| KAN510B | 80 | 47,5 | 39,9 | 22,6 | – | – | 889 |
| KAN610B | 82 | 75,5 | 59 | 46,2 | 36 | – | 869 |
| KAN750B | 85 | 89 | 74 | 53 | 36,5 | – | 914 |
| KAN1010B | 87 | 105,5 | 83,9 | 57 | 32,5 | – | 944 |
| KAN1260B | 87 | 110 | 91,6 | 66 | 44,5 | 37,5 | 984 |
