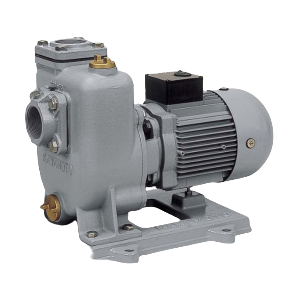

Self Priming Pump KAWAMOTO GS Series
Self Priming Pump KAWAMOTO GS Series boasts superior suction performance, thanks to its strong and durable construction, which includes a special kind of mechanical seal designed to resist sand. Its excellent performance allows for pumping up large amounts of water, even from draw down wells. The back pull-out construction makes maintenance easy, while the semi-open impeller ensures smooth pumping without getting stuck. Additionally, the TEFC motor is standardly adopted, providing long life and strong resistance against dust and humidity.
Facebook
Twitter
Email
Print
GS Series
Self Priming Pump KAWAMOTO

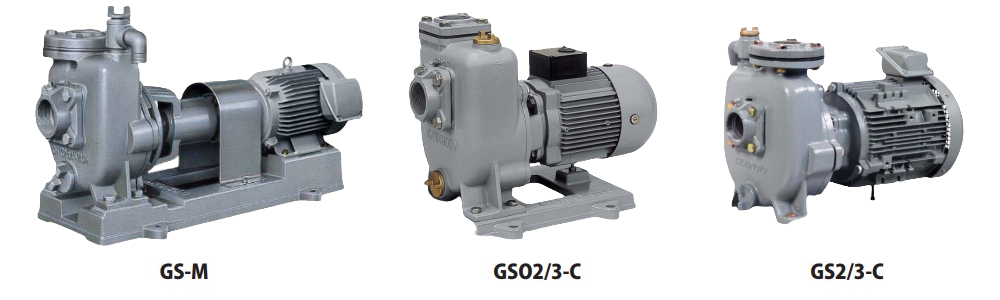

Model : GS-M ,GSO2/3-C ,GS2/3-C 2 POLES / 50 Hz
FEATURES
- Outstanding self-priming performance enables to pumping even from -8.4m deep well. (GSO3 type)
- Mechanical seal with outstanding sand-resisting properties and sand-resistant structure are incorporated. (GSO3 type)
- The semi-opened impeller is strong against foreign matter such as sand. (GSO3 type)
Model : GSO2/3-C
APPLICATIONS
- Self priming type
- Snow melting
- Agriculture
- Industry
- Cooling water
FEATURES
- Superior suction performance.
- Strong and durable construction against sand by adopting special kind mechanical seal.
- Excellent performance make it possible to pump up much water even from draw down well.
- Back pull out construction.
- Semi-open impeller enable stuck free pumping works.
- Long life and strong against dust and humidity because
TEFC motor is standardly adopted.
MODEL GSO2/3-C BORE SIZE 40~50 MM.
STANDARD SPECIFICATIONS
| Description | Model: GSO2/3-C | |
|---|---|---|
| Applicable Liquid | Clean water | |
| Liquid Temperature | 0 - 40 °C (however there should be no freezing) | |
| Main Pump | Casing | Cast iron |
| Impeller | Bronze or Resin or 5CS13 (Semi-opened impeller) | |
| Shaft | SUS304 | |
| Motor | Speed | 2900 rpm |
| Protection | IPSA, TEFC | |
| Construction | Shaft Seal | Mechanical seal Sic x Carbon |

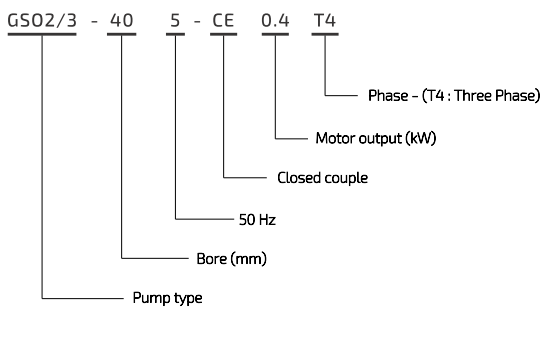

MODEL CODE

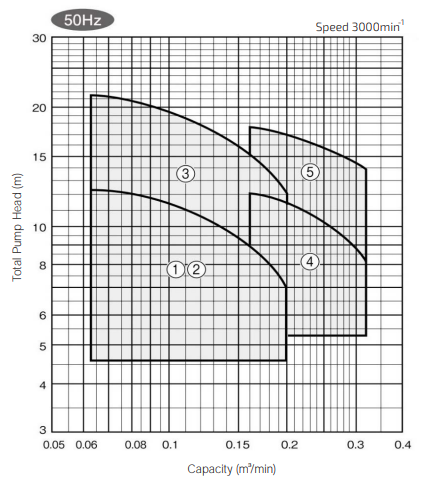

PERFORMANCE CHART
SPECIFICATION TABLE
| No. | Bore (mm) | Model | Motor (kW) | Performance | |||
|---|---|---|---|---|---|---|---|
| Capacity (m3/min) | Total Head (m) | Capacity (m3/min) | Total Head (m) | ||||
| 1,2 | 40 | GS03-405-C0.4T4 | 0.4 | 0.063 | 12.5 | 0.2 | 7 |
| 3 | GS02-405CE0.75 | 0.75 | 0.063 | 21.5 | 0.2 | 12.2 | |
| 4 | 50 | GSO2-5O5CEO.75 | 0.75 | 0.16 | 12 | 0.32 | 8 |
| 5 | GS02-505CE1.5 | 1.5 | 0.16 | 17.8 | 0.32 | 13.8 | |
Model : GS2/3-C
APPLICATIONS
- Cooling water
- Industry
- Agriculture
- Setting for machinery equipment
FEATURES
Compact and light weight.
- Self-priming pump construction does not require foot valve.
- Pump and motor are mono-block construction,
shaft alignment works is not necessary. - Easy maintenance and inspection due to back pull out
construction. - TEFC electric motor as standard.
MODEL GS2/3-C BORE SIZE 25~100MM.
STANDARD SPECIFICATIONS
| Description | Model: GS2/3-C | |
|---|---|---|
| Applicable Liquid | Clean water | |
| Liquid Temperature | 0 - 45 °C (however there should be no freezing) 0.25 kW: 0 - 40 °C | |
| Main Pump | Casing | Cast Iron |
| Impeller | Cast Iron or Bronze or Resin (Closed) | |
| Shaft | SUS304, SUS403 (5.5kW or more) | |
| Motor | Speed | 2900 rpm |
| Protection | IP54, TEFC | |
| Construction | Shaft Seal | Mechanical seal Ceramic x Carbon |

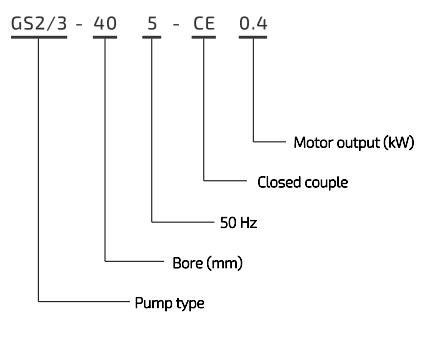

MODEL CODE

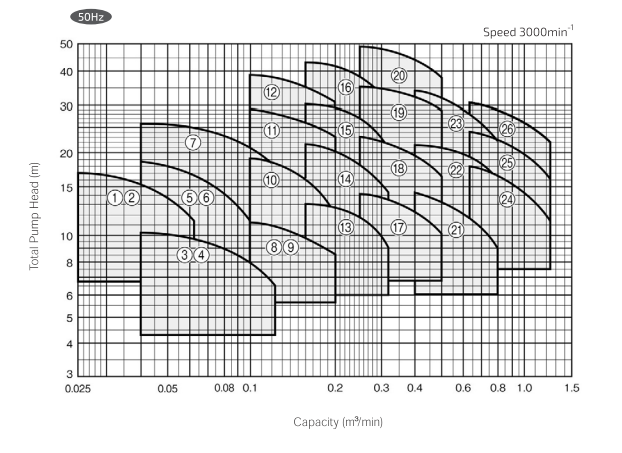

PERFORMANCE CHART
SPECIFICATION TABLE
| No. | Bore (mm) | Model | Motor (kW) | Performance | |||
|---|---|---|---|---|---|---|---|
| Capacity (m3/min) | Total Head (m) | Capacity (m3/min) | Total Head (m) | ||||
| 1.2 | 25 | G52-255-C0.25T | 0.25 | 0.25 | 17 | 0.063 | 11.5 |
| 3.4 | 32 | GS2-325-C0.25T | 0.25 | 0.04 | 10.2 | 0.125 | 6.5 |
| 5.6 | G52-325-C0.4T | 0.4 | 0.04 | 18.8 | 0.1 | 11.5 | |
| 7.8 | G53-325CE0.75 | 0.75 | 0.04 | 25.5 | 0.123 | 18 | |
| 9 | 40 | GS2-405-C0.4T | 0.4 | 0.1 | 11.2 | 0.2 | 8.5 |
| 10 | G53-405CE0.75 | 0.75 | 0.1 | 19 | 0.2 | 12 | |
| 11 | GS3-405CE1.5 | 1.5 | 0.1 | 29 | 0.2 | 23 | |
| 12 | G53-405CE2.2 | 2.2 | 0.1 | 38.5 | 0.2 | 30.5 | |
| 13 | 50 | G53-505CE0.75 | 0.75 | 0.16 | 13 | 0.32 | 9.2 |
| 14 | G53-505CE1.5 | 1.5 | 0.16 | 21.5 | 0.32 | 14.5 | |
| 15 | G53-505CE2.2 | 2.2 | 0.16 | 30.5 | 0.32 | 21.5 | |
| 16 | GS3-505CE3.7 | 3.7 | 0.16 | 43 | 0.32 | 32 | |
| 17 | 65 | GS3-655CE1.5 | 1.5 | 0.25 | 14.2 | 0.5 | 10.2 |
| 18 | GS3-655CE2.2 | 2.2 | 0.25 | 23 | 0.5 | 16.5 | |
| 19 | G53-655CE3.7 | 3.7 | 0.25 | 35.5 | 0.5 | 28.5 | |
| 20 | G53-655CE5.5 | 5.5 | 0.25 | 49 | 0.5 | 38 | |
| 21 | 80 | G53-805CE2.2 | 2.2 | 0.4 | 14.2 | 0.8 | 9 |
| 22 | GS3-805CE3.7 | 3.7 | 0.4 | 21.5 | 0.8 | 16.5 | |
| 23 | GS3-805CE5.5 | 5.5 | 0.4 | 34.5 | 0.8 | 22 | |
| 24 | 100 | GS3-1005CE3.7 | 3.7 | 0.63 | 17.8 | 1.25 | 11.5 |
| 25 | G53-1005CE5.5 | 5.5 | 0.63 | 24 | 1.25 | 16.5 | |
| 26 | G53-1005CE7.5 | 7.5 | 0.63 | 30.5 | 1.25 | 22 | |

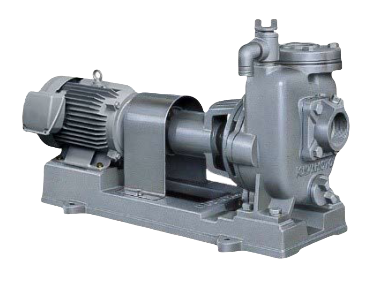

Model : GS-M
APPLICATIONS
- Self priming type
- Cooling water
- Industry
- Agriculture
- General lift up water
FEATURES
- Self-priming pump construction does not require foot valve.
- Various kind of models.
- Easy maintenance and inspection due to back pull out construction.
- Low operation sound.
MODEL GS-M BORE SIZE 40~100MM
STANDARD SPECIFICATIONS
| Description | Model: GS-M | |
|---|---|---|
| Applicable Liquid | Clean water | |
| Liquid Temperature | 0 - 40 °C (however there should be no freezing) | |
| Main Pump | Casing | Cast Iron |
| Impeller | Cast Iron (Closed) | |
| Shaft | SU5403 / SU5404 | |
| Motor | Speed | 2900 rpm |
| Protection | IP55, TEFC | |
| Construction | Shaft Seal | Packing seal (Non asbestos) |

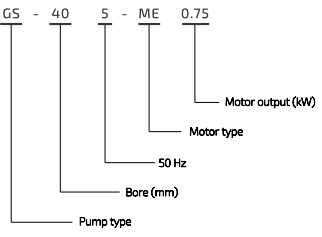

MODEL CODE

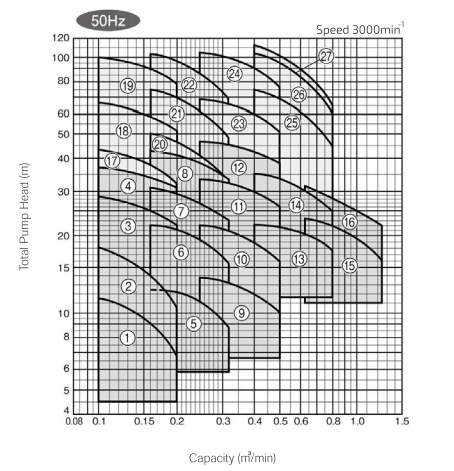

PERFORMANCE CHART
SPECIFICATION TABLE
| No. | Bore (mm) | Model | Motor (kW) | Performance | |||||
|---|---|---|---|---|---|---|---|---|---|
| Capacity (m3/min) | Total Head (m) | Capacity (m3/min) | Total Head (m) | Capacity (m3/min) | Total Head (m) | ||||
| 1 | 40 | GS-405-MN0.4 | 0.4 | 0.1 | 11.5 | 0.14 | 10 | 0.2 | 6.8 |
| 2 | G5405ME0.75 | 0.75 | 0.1 | 18 | 0.14 | 15.5 | 0.2 | 10.5 | |
| 3 | G5405ME1.5 | 1.5 | 0.1 | 28.5 | 0.14 | 26.5 | 0.2 | 22 | |
| 4 | G5405ME2 2 | 2.2 | 0.1 | 37 | 0.14 | 35 | 0.2 | 305 | |
| 5 | SO | GSS05ME0.75 | 0.75 | 0.16 | 12.5 | 0.22 | 11.8 | 0.32 | 8.8 |
| 6 | G5505ME1.5 | 1.5 | 0.16 | 22.2 | 0.22 | 20.2 | 0.32 | 15.5 | |
| 7 | GS505ME2.2 | 2.2 | 0.16 | 31 | 0.22 | 28.5 | 0.32 | 23 | |
| 8 | G5505ME3.7 | 3.7 | 0.16 | 43 | 0.22 | 40 | 0.32 | 33.5 | |
| 9 | 65 | GS655ME1.5 | 1.5 | 0.25 | 13.8 | 0.36 | 12.5 | 0.5 | 10 |
| 10 | G5655ME2.2 | 2.2 | 0.25 | 22 | 0.36 | 20 | 0.5 | 15.8 | |
| 11 | GS655ME3.7 | 3.7 | 025 | 33.5 | 0.36 | 31.5 | 0.5 | 26 | |
| 12 | G5655MES.S | 5.5 | 0.25 | 47 | 0.36 | 44.5 | 0.5 | 38.5 | |
| 13 | 80 | GS805ME3.7 | 3.7 | 0.4 | 22 | 0.56 | 21 | 0.8 | 17.5 |
| 14 | GS80SMES.S | 5.5 | 0.4 | 35.5 | 0.56 | 32 | 0.8 | 25 | |
| 15 | 100 | GS1005ME5.5 | 5.5 | 0 63 | 235 | 0.9 | 20.5 | 1.25 | 16 |
| 16 | GS1005ME7.5 | 7.5 | 0.63 | 31 | 0.9 | 27 | 1.25 | 22 | |
