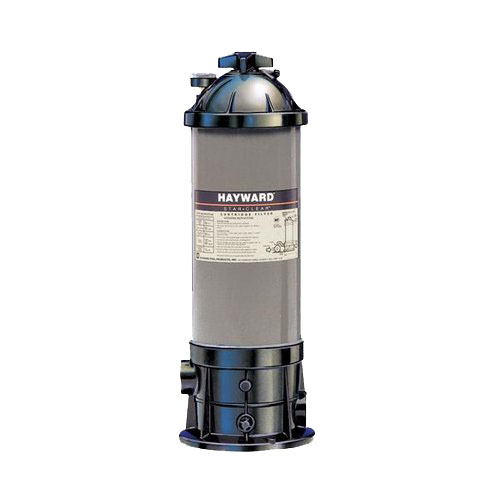

Star-ClearTM Cartridge Filters HAYWARD

Star-ClearTM Cartridge Filters HAYWARD

Star-ClearTM Cartridge Filters HAYWARD Single Locking Knob securely fastens filter head to filter tank, eliminating clamps or bolts.Filter Head provides easy access to cartridge element. Attractive and durable, the head maybe rotated to conveniently position pressure gauge and manual air relies valve.Heavy-Duty Filter Tank injection-molded of high strength DuralonTM for dependable, corrosion-free performance.

Category Water Pump Tags filter pump, filter pump, hayward filter, ฟิลเตอร์, ฟิลเตอร์ hayward

Star-ClearTM Cartridge Filters HAYWARD

Single Element Cartridge is engineered of high-quality reinforced polyester with gasketed molded end caps for maximum efficiency, easier cleaning and longer life.
Molded Center Core incorporating unique “Waffle-Pattern Design” allows for maximum flow and provides extra strength.
Integral Mounting Base provides stable, corrosion-free support and allows filter to be used separately or mounted as a complete filter, pump and platform base system.
Elevated Filtered Eater Collector and Debris Sump prevents accidental by-pass of heavy debris to pool or spa when cartridge is removed for cleaning.
½” FIP Filter Drain Valve provides fast draining for elevated spas and tubs. Also accepts standard spigot valve.

Specifications-Star-Clear Cartridge Filters

Filter Type : Cartridge Element : 25 and 50 ft2 (2.3 and 4.7 m2)
Filter Tank : Injection-Molded DuralonTM
Filter Tank : Injection-Molded DuralonTM
Filter Elements : Reinforced Polyester
Performance Range : ½to 2 HP(25 to 50 GPM/95 LPM to189 LPM)
Dimensions : C250-19½” Hx10½” W (495 mm x 256 mm)
C500-29½” Hx10½” W (749 mm x 267 mm)

Performance Data
Model Number	Effective Filtration Area		Design Flow Rate		Turnover (Gals.)
	Effective Filtration Area		Design Flow Rate		8 Hr.		10 Hr.
	ft2	m2	GPM	LPM	Gallons	Liters	Gallons	Liters
C250	25	2.3	25	95	12,200	45,420	15,000	56,775
C500	50	4.7	50	189	24,000	90,840	30,000	113,550
