Booster Pump System EBARA UD3 Series
Booster pump System brand EBARA model UD3 Series or a set of water pressure control pumps. With a good quality water pump High quality that works with automation. The water pump will work automatically when the pressure in the pipe system drops. Mostly used in high rise apartment condominium buildings. Including in large hotels, etc.
Booster Pump System EBARA UD3 Series
CONSTANT SPEED PRESSURE BOOSTER UNIT MODEL : UD3
APPLICATIONS
1.Domestic : High-rise buildings, Condominiums, Apartments etc.
2.Commercial : Office buildings, Hotels, Shopping centers etc.
3.Industrial : Factory utility, Manufacturing & processing industries applications etc.
4.Social service : Schools, Hospitals etc.
FEATURES
1. All components are integrated on a rugged steel base. It is ready for use by only connecting with supply piping and to the power source.
2. Layout is very compact and much lighter than conventional units, It occupies lesser space and requires easier installation than
conventional units.
3. The flow control system which prevents frequent start and stop of pumps, requires only small hydro-pneumatic pressure tank and
ensures constant fresh water supply.
4.Pumps are in parallel operation for high demand and alternating in low demand, suitable for energy-saving.
5. Various options are available on request.
Booster Pump System EBARA UD3 Series

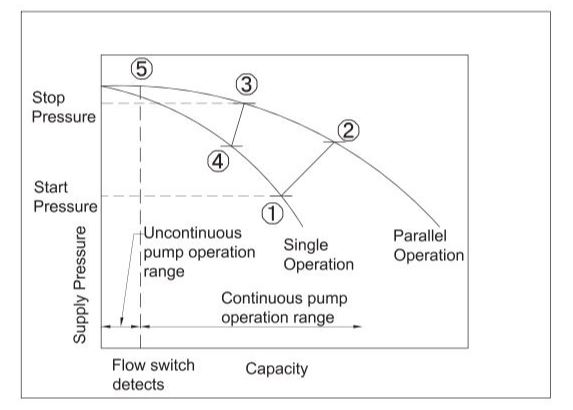

CONTROL SYSTEM
Step 1
Both pumps are stopped when water tank is fully charged. In this condition water is supplied from the pressure tank, and water pressure in tank gradually decreases.
Step 2
When water pressure decreases, first pump starts at pressure point 1 and water is supplied from pump.
Step 3
When more water is required and water pressure decreases to lower point 1 again, second pump also starts, operation point shifts to point and system shifts to parallel operation.
Step 4
When second pump starts, the timer starts to count. After that when water consumption decreases, the water pressure increases to point 3, and 60 seconds pass after second pump starts. First pump is stopped and operation point shifts to point . 4
Step 5
When water consumption further decreases, and the flow switch detects small flow rate. Second pump stops (point 5). Flow switch detecting point is at small capacity point, therefore pump continuous operation range is much wider, accordingly pump start frequency is greatly decreased.
SPECIFICATION
| Model EBARA | UD3-S | UD3-D | UD3-T | |
| Pump operation No. | 1 | 2 | 3 | |
| Pump model | CDX,2CDX & 3M | CMA,CDX, 2CDX & 3M | CMA, CDX, 2CDX & 3M | |
| Handled liquid property | Fresh water,0-60 degree C (Except CMA1.00 : 0-40 degree C) | |||
| Installation | Outdoor design | |||
| Operation system | Pump speed | Constant | ||
| Control | Pressure switch & flow switch* | Pressure sensor & flow switch* | Pressure switch & flow switch* | |
| Power source | AC, Three phase, 50Hz, 380V | |||
| Max. working pressure | 6 to 10 bar G (6.1 to 10.2 kg/cm² G) ; Refer to model | |||
| Allowable suction pressure | Min. : -0.3 bar G (-0.3 kg/cm² G), Max. : Refer to model | |||
| Control panel | Starting method | DOL (Up to 5.5kW) or Star-Delta (7.5 to 11 kW) | ||
| Construction | Weather & dust proof type | |||
| Operation key | Push button & selector switch type | Push button & slide switch type | Push button & selector switch type | |
| Pressur tank | Construction | Air pre-charged diaphragm type | ||
| Capacity | 24 liters (Standard) | |||
| Quantity | Refer to model | |||
| Accessories | Control panel & support, Flow switch* , Pressure gauge*¹ | |||
| Common base, Pressure tank, Piping & valver, Electrcal wiring | ||||
OPTION
| Pump model | Other models upon request |
| Pressure tank | Large capacity upon request |
| Others | On request |
Note) * In case of pump model CDX90/10 & CMA1.00 flow switch is not provided.
*1 In UD3-S, UD3-T, pressure gauge is provided
