แอร์คอมเพรสเซอร์ MEDO AC 0110 Series Interm Pressure

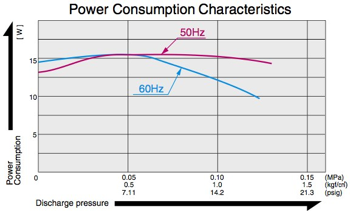

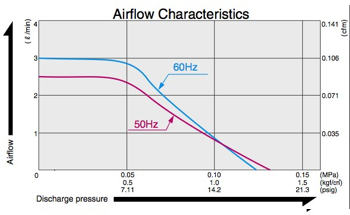

ac_0110_airflow_1            ac_0110_power_2



Specifications MEDO AC 0110 Series

Air Compressor MEDO AC 0110 Series
Rated Pressure: 1.0 bar
Rated Airflow: 0.8 l/min
Rated Voltage: 230 V
120 V
Maximum Pressure: 1.2 bar
Power Consumption: 15 W
12 W
Rated Frequency: 50 Hz
60 Hz
Life Expectancy: 3.000 h
Outlet: 6mm O.D. hose nipple
Duty Cycle: 30 minutes
Coil Insulation Class: E or its equivalent (JETL) and B for UL-1450
Mounting Dimensions (L x W): 48 x 62 mm
Gross Weight: 0.7 kg
Leadwire Length: 200 mm

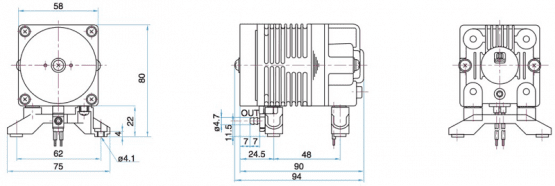

Dimensions MEDO AC 0110 Series



ac_0110_dimensions_
