แอร์คอมเพรสเซอร์ MEDO AC 0207 Series Interm Pressure

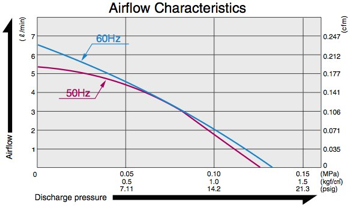

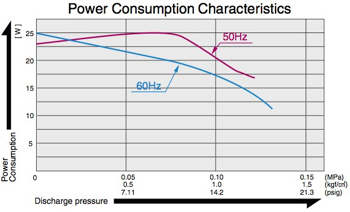

ac_0207_airflow_1          ac_0207_power_2



Specifications MEDO AC 0207 Series

Air Compressor MEDO AC 0207 Series
Rated Pressure: 0.7 bar
Rated Airflow: 3.5 l/min
Rated Voltage: 230 V
120 V
Maximum Pressure: 1.0 bar
Power Consumption: 25 W
20 W
Rated Frequency: 50 Hz
60 Hz
Life Expectancy: 3.000 h
Outlet: 4.7mm O.D. hose nipple
Duty Cycle: Continuous
Coil Insulation Class: E or its equivalent (JETL) and B for UL-1450
Mounting Dimensions (L x W): 75 x 88 mm
Gross Weight: 1.7 kg
Leadwire Length: 200 mm

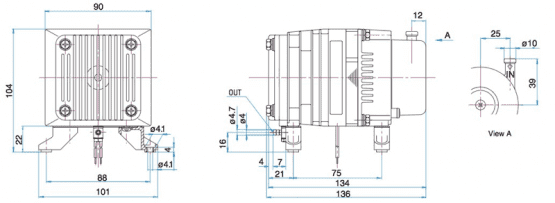

Dimensions MEDO AC 0207 Series



ac_0207_dimensions_
