แอร์คอมเพรสเซอร์ MEDO AC 0401A Series

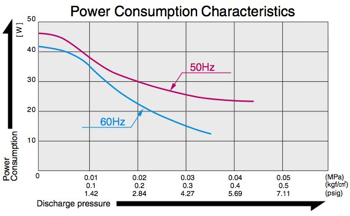

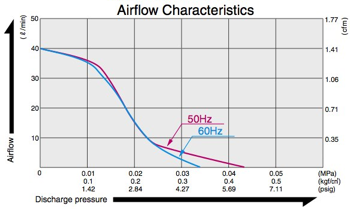

ac_0401_a_airflow_1            ac_0401_a_power_2



Specifications MEDO AC 0401A Series

Air Compressor MEDO AC 0401A Series
Rated Pressure: 0.1 bar
Rated Airflow: 35 l/min
Rated Voltage: 230 V
120 V
Maximum Pressure: 0.35 bar
Power Consumption: 38 W
35 W
Rated Frequency: 50 Hz
60 Hz
Life Expectancy: 10.000 h
Outlet: ISO Rc 1/4 female threaded
Duty Cycle: Continuous
Coil Insulation Class: E or its equivalent (JETL) and B for UL-1450
Mounting Dimensions (L x W): 68 x 84 mm
Gross Weight: 1.9 kg
Leadwire Length: 200 mm

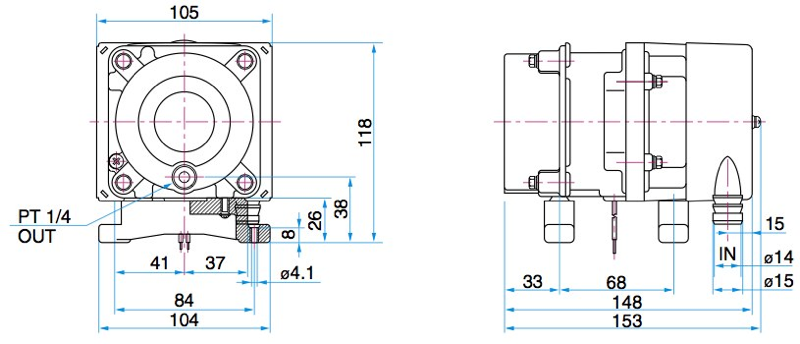

Dimensions MEDO AC 0401A Series

ac_0401_a_dimensions_
