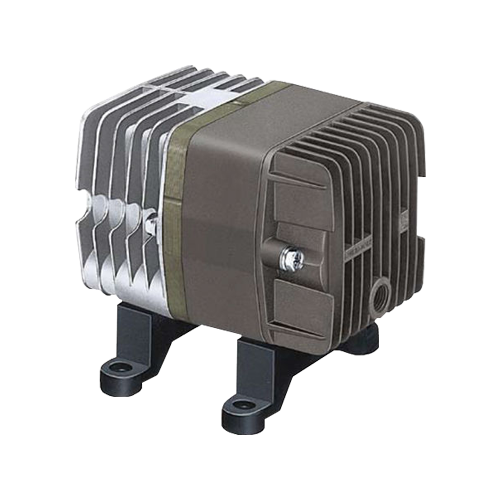

แอร์คอมเพรสเซอร์ MEDO AC 0410A Series Interm Pressure
แอร์คอมเพรสเซอร์ MEDO AC 0410A Series Interm Pressure
Facebook
Twitter
Email
Print
แอร์คอมเพรสเซอร์ MEDO AC 0410A Series Interm Pressure
Specifications MEDO AC 0410A Series
| Air Compressor MEDO AC 0410A Series | |
|---|---|
| Rated Pressure: | 1.0 bar |
| Rated Airflow: | 5 l/min |
| Rated Voltage: | 230 V |
| 120 V | |
| Maximum Pressure: | 1.3 bar |
| Power Consumption: | 43 W |
| 39 W | |
| Rated Frequency: | 50 Hz |
| 60 Hz | |
| Life Expectancy: | 3.000 h |
| Outlet: | ISO Rc 1/4 female threaded |
| Duty Cycle: | Continuous |
| Coil Insulation Class: | E or its equivalent (JETL) and B for UL-1450 |
| Mounting Dimensions (L x W): | 68 x 98 mm |
| Gross Weight: | 2.1 kg |
| Leadwire Length: | 220 mm or 200 mm |

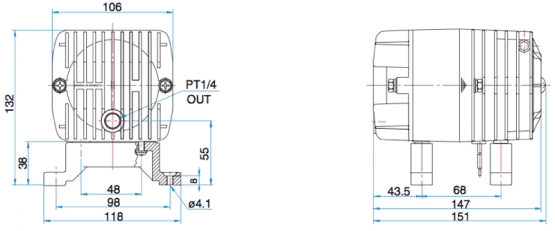

Dimensions MEDO AC 0410A Series
