แอร์คอมเพรสเซอร์ MEDO AC 0501 Series

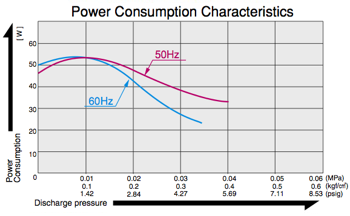

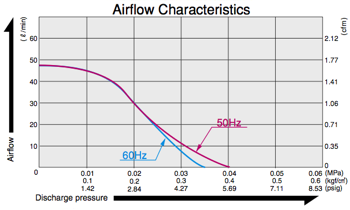

ac_0501_airflow_1            ac 0501 power 2



Specifications MEDO AC 0501 Series

Air Compressor MEDO AC 0501 Series
Rated Pressure: 0.1 bar
Rated Airflow: 45 l/min
Rated Voltage: 230 V
120 V
Maximum Pressure: 0.35 bar
Power Consumption: 53 W
53 W
Rated Frequency: 50 Hz
60 Hz
Life Expectancy: 10.000 h
Outlet: ISO Rc 1/4 (female threaded)
Duty Cycle: Continuous
Coil Insulation Class: E or its equivalent (JETL)
Mounting Dimensions (L x W): 68 x 84 mm
Gross Weight: 3 kg
Leadwire Length: 200 mm

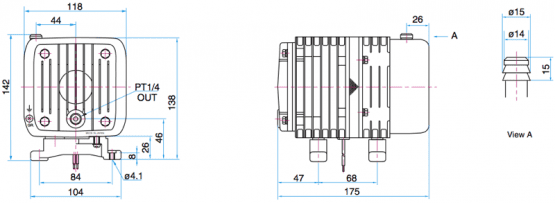

Dimensions MEDO AC 0501 Series

ac_0501_dimensions_
