แอร์คอมเพรสเซอร์ MEDO AC 0902 Series

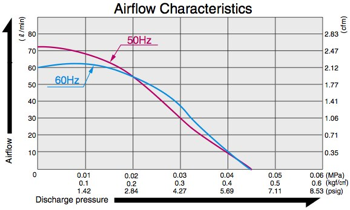

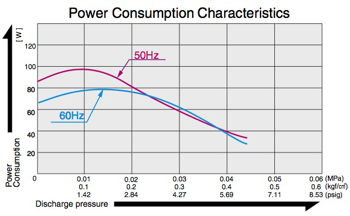

ac_0902_airflow_1            ac_0902_power_2



Specifications MEDO AC 0902 Series

Air Compressor MEDO AC 0902 Series
Rated Pressure: 0.2 bar
Rated Airflow: 55 l/min
Rated Voltage: 230 V
120 V
Maximum Pressure: 0.45 bar
Power Consumption: 85 W
75 W
Rated Frequency: 50 Hz
60 Hz
Life Expectancy: 10.000 h
Outlet: ISO Rc 3/8 (female threaded)
Duty Cycle: Continuous
Coil Insulation Class: E or its equivalent (JETL) and B for UL-1450
Mounting Dimensions (L x W): 102 x 130 mm
Gross Weight: 4.9 kg
Leadwire Length: 300 mm

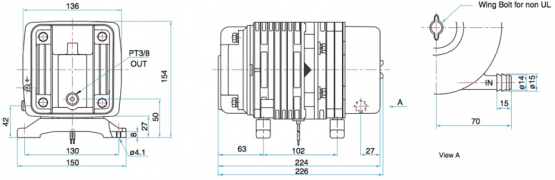

Dimensions MEDO AC 0902 Series

ac_0902_dimensions_
